Magnesium Alloy Die-Cast Housing Cover

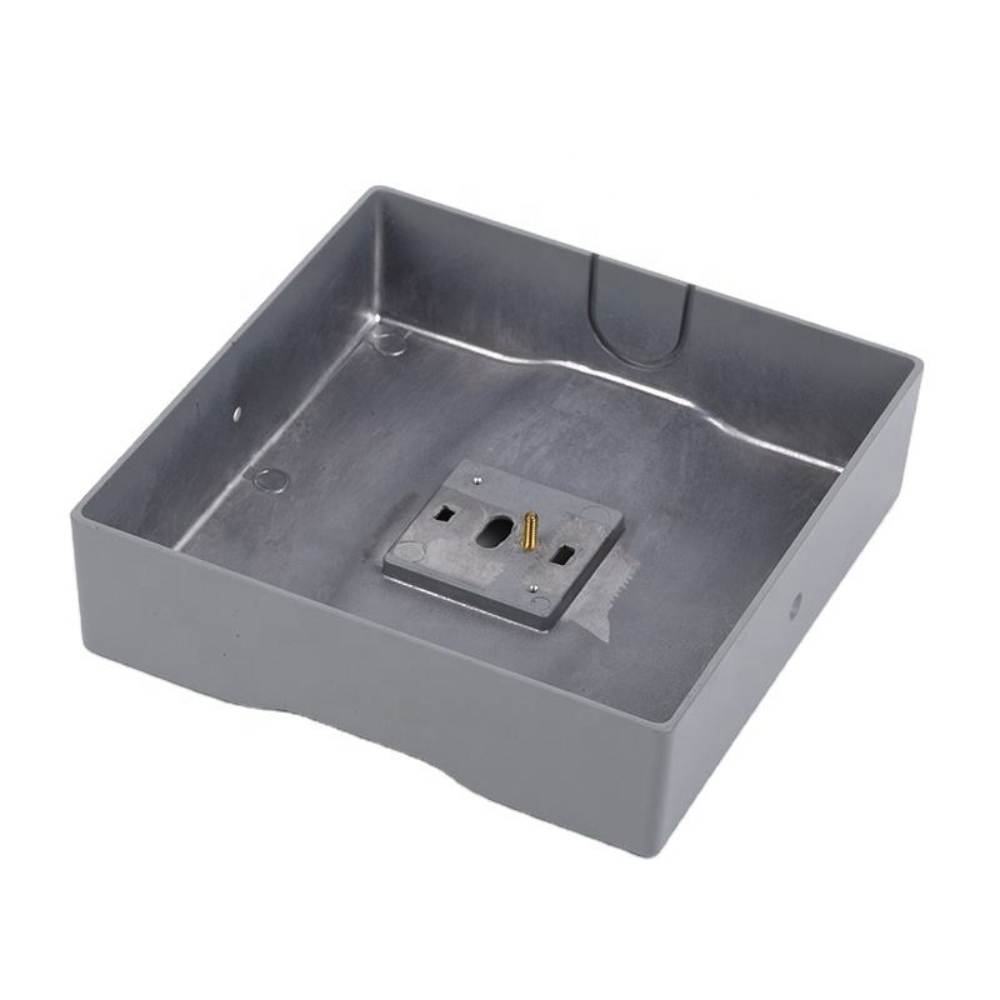

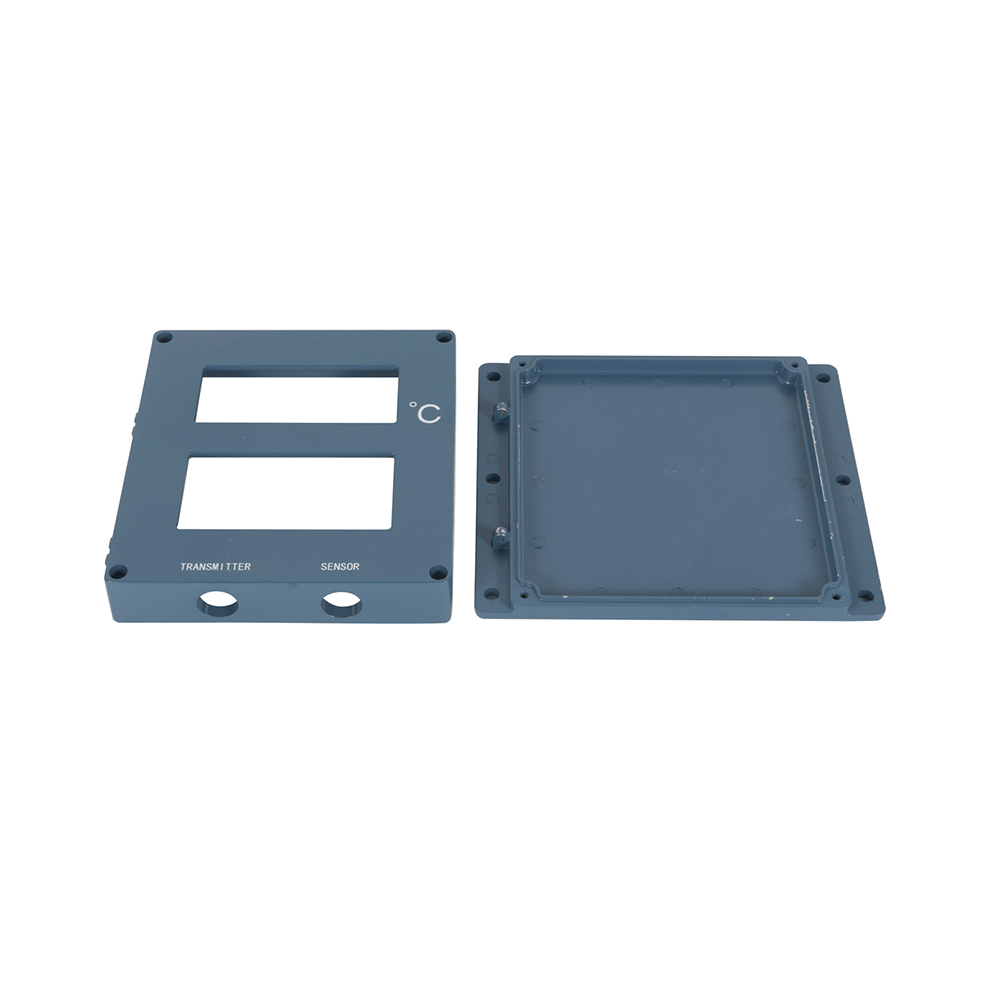

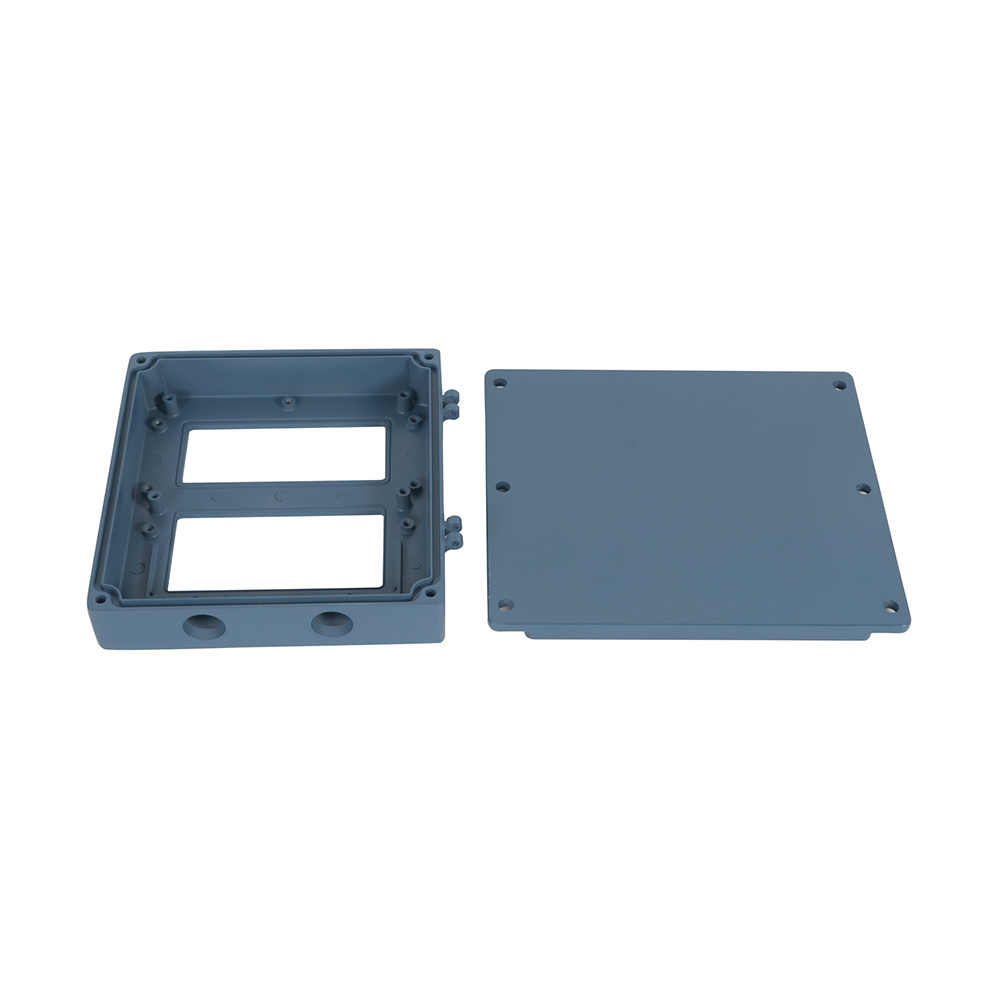

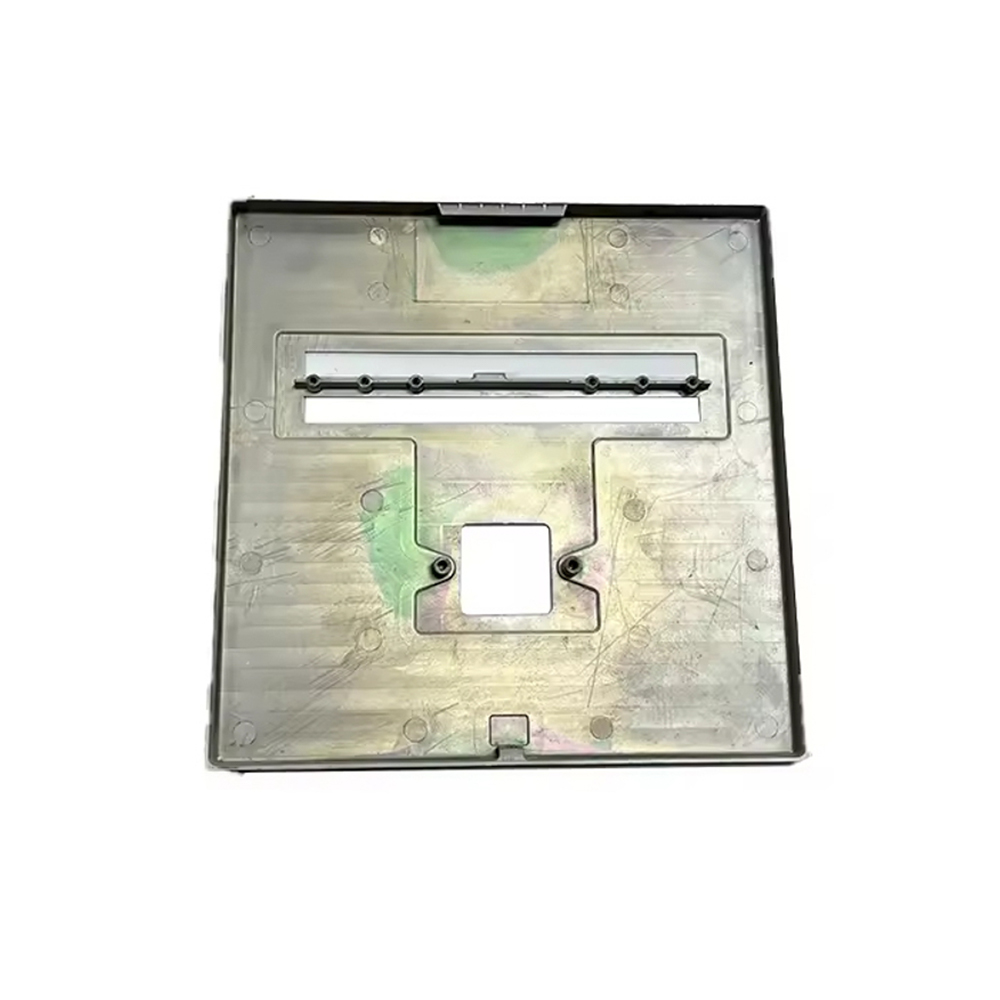

I. Core Advantages of the Ultrasonic Thickness Gauge Housing

1. Strong Environmental Adaptability

The housing is constructed of die-cast aluminum alloy, offering excellent impact resistance (withstands a 1.5m drop) and corrosion resistance. It operates stably in industrial environments with a temperature range of -20°C to 80°C and a humidity level of ≤95%, making it suitable for complex inspection scenarios such as chemical pipelines and shipbuilding plates.

2. High-Precision Structural Adaptability

Leveraging the high molding precision of the die-casting process (dimensional tolerance ≤±0.1mm), the housing precisely fits the internal circuit boards and sensor components, eliminating instrument vibration interference caused by assembly gaps and ensuring thickness measurement accuracy (error ≤0.01mm).

3. Lightweight and Portable

The die-cast aluminum alloy housing has a density of only 2.7g/cm³, a 40% reduction compared to traditional stainless steel housings, keeping the total weight under 500g. The ergonomic grip design allows for easy handheld inspections for extended periods.

4. Reliable Protection

The housing features an IP65 protection rating. Its sealing ring and snap-on seal effectively block dust intrusion and liquid splashes. Heat dissipation channels, combined with the material's high thermal conductivity (thermal conductivity ≥ 120W/(m・K)), prevent the instrument from overheating during prolonged operation.

II. Ultrasonic Thickness Gauge Housing Design

1. Modular Integrated Layout

The housing adopts a partitioned design, separating the operation panel area (with reserved buttons and display mounting slots), sensor interface area (with waterproof aviation plug holes), and battery compartment. This facilitates maintenance and replacement of internal components while reducing signal interference between modules.

2. Optimized Electromagnetic Shielding

Through material composition adjustments during the die-casting process (including the addition of 1.5% to 2% magnesium) and a conductive coating on the interior of the housing, the housing achieves an electromagnetic shielding rating of ≥ 40dB. This protects against electromagnetic interference from industrial equipment such as inverters and motors, ensuring stable thickness gauge signals.

3. Visualization and Convenient Operation

The front of the housing features a reserved window made of highly transparent PC material with a light transmittance of ≥90%, ensuring smooth display readings. Anti-slip ribs and a convenient lanyard hole on the side enhance grip stability and portability, making it suitable for use in high-altitude, confined spaces, and other challenging inspection environments.

III. Core Housing Manufacturing Technology - Die-Casting Technology

1. High Molding Efficiency and Batch Stability

Utilizing a cold-chamber die-casting process, the mold opening and closing cycle is only 15-20 seconds per piece, enabling a single mold to produce over 3,000 pieces per day. A mold temperature control system (with an accuracy of ±2°C) ensures consistent housing dimensions across batches (with dimensional deviation ≤0.05mm within the same batch), meeting the demands of large-scale instrument production.

2. Integrated Molding of Complex Structures

Die-casting technology enables the simultaneous molding of complex housing structures, such as ribs, grooves, and holes (with a minimum hole diameter of up to 2mm and a minimum wall thickness of 1.2mm). This eliminates the need for multiple subsequent machining steps, reduces material waste (material utilization rate ≥95%), and avoids structural weaknesses caused by welding and splicing.

3. Controllable Material Mechanical Properties

By optimizing die-casting process parameters (injection speed 3-5m/s, injection pressure 80-120MPa), the grain structure of the aluminum alloy can be manipulated to achieve a tensile strength of ≥280MPa and an elongation of ≥8% for the housing. This balances structural strength and impact toughness, addressing the cracking problem associated with traditional injection-molded housings.

4. Compatible Surface Treatments

The die-cast housing surface can be directly treated with anodizing (forming a 5-10μm oxide film for improved wear resistance), spray coating (customizable colors and textures), and electroplating. This not only meets the desired appearance of the instrument, but also further enhances corrosion and scratch resistance, extending the housing's service life.
