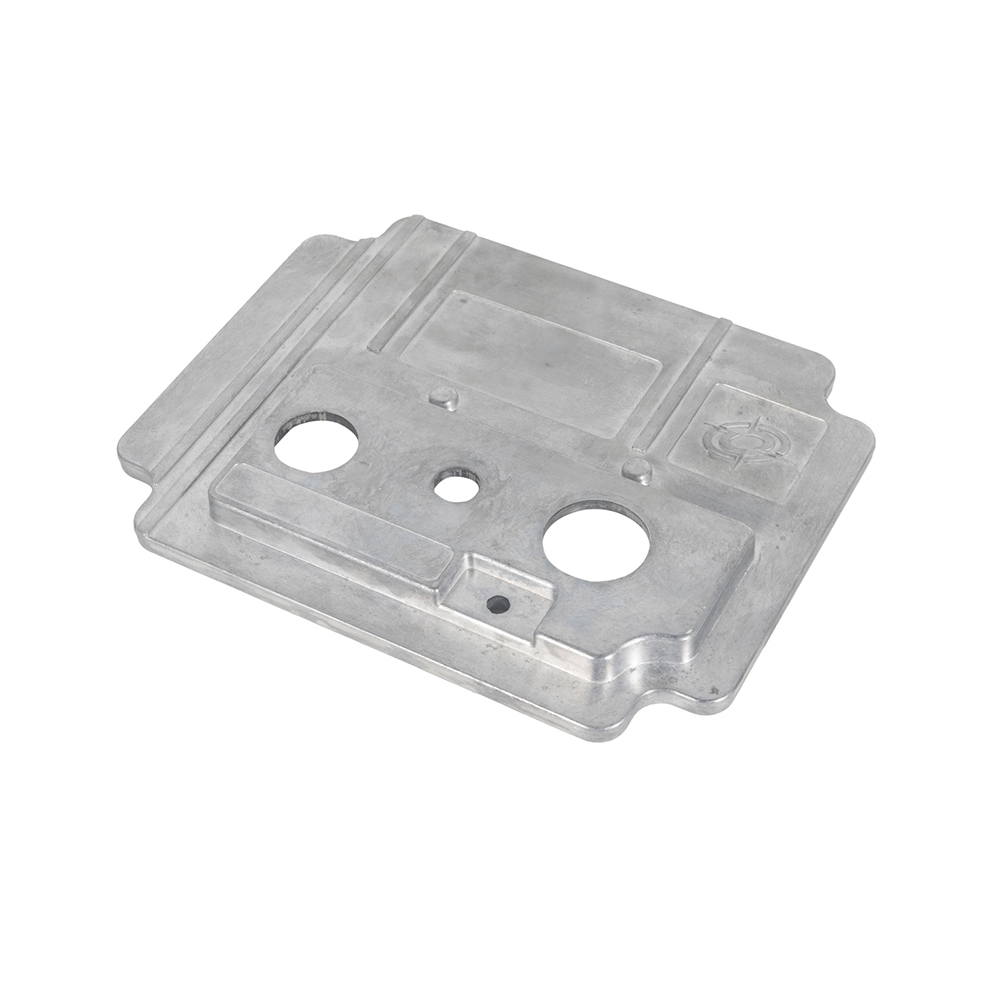

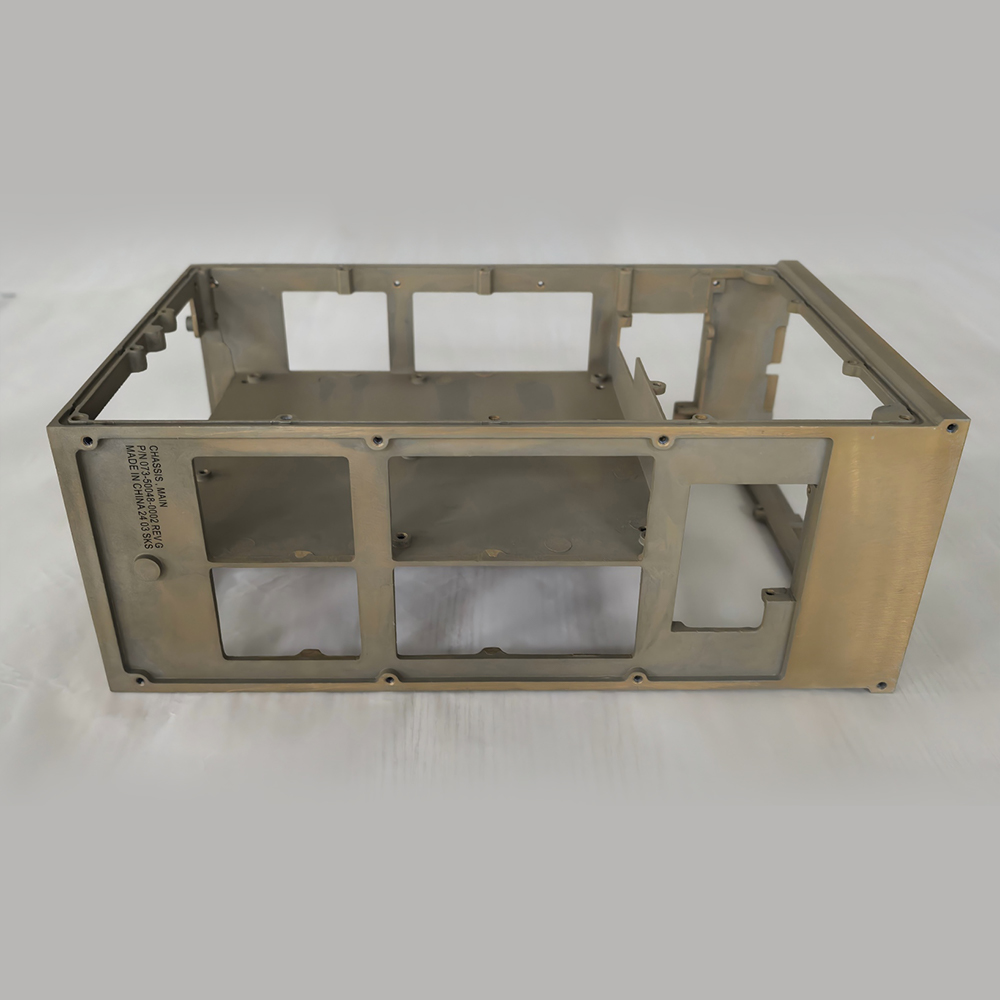

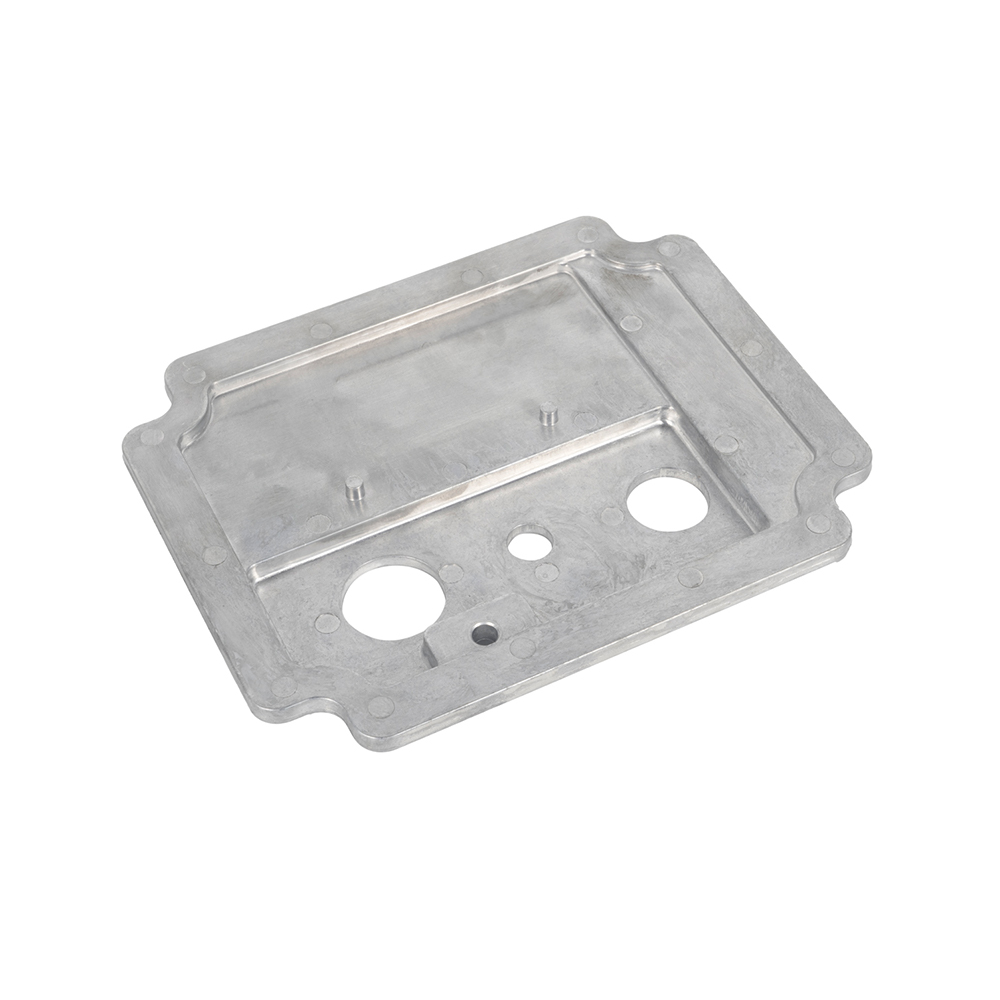

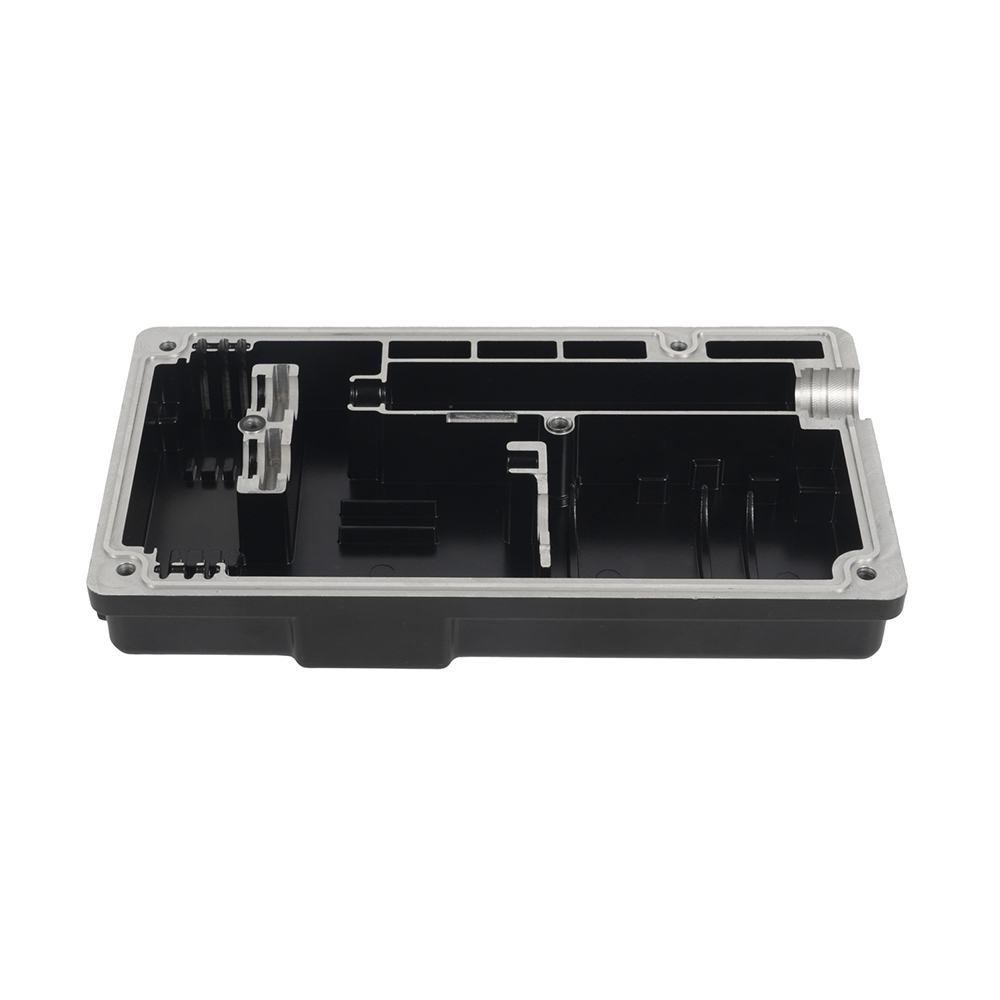

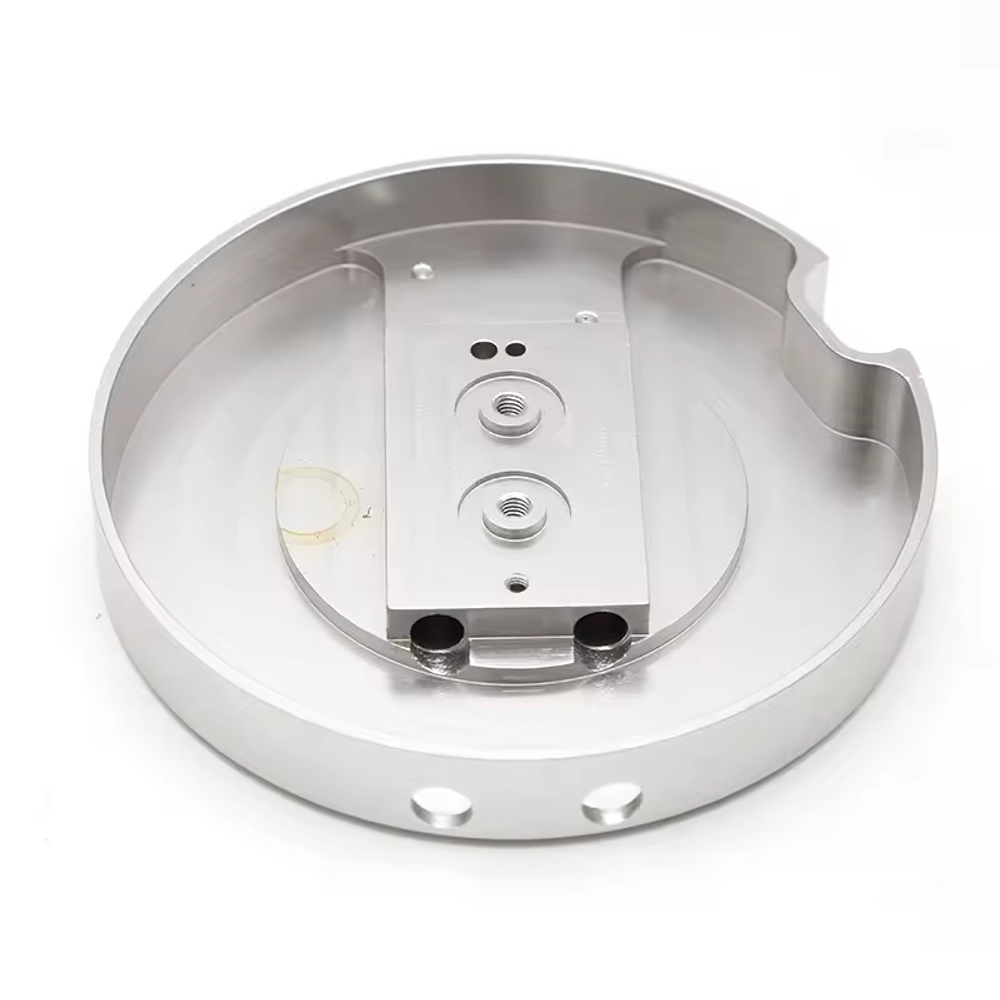

I. Advantages and Features of Aircraft Instrument Housings
As the "nerve center" of flight control, aircraft instrument housings must withstand harsh environments such as high altitude, low temperatures, strong vibration, and electromagnetic interference. Their core advantages and features are concentrated in the following three aspects:
(I) Core Advantage: Performance Guaranteed to Adapt to Aviation Scenarios
1. Lightweight and High-Strength Material Properties
Mainstream die-casting of aluminum alloys (such as A356 and ADC12) or magnesium alloys has a density of only 1/3-1/4 that of steel, reducing instrument assembly weight (single housing weight is typically controlled at 50-200g), meeting the "lightweight" requirements of aviation. Furthermore, the die-casting process increases material density (≥98%), resulting in a tensile strength of 250-320MPa. This allows for withstanding impact loads of ±500m/s² during flight, preventing housing deformation that could lead to instrument accuracy loss.
2. High-Precision Structural Adaptability
The housing's dimensional tolerance is controlled within ±0.05mm, with a surface roughness of Ra ≤1.6μm. It aligns directly with the instrument's internal PCB and sensor mounting holes (aperture deviation ≤0.02mm) without secondary cutting. This reduces vibration displacement caused by assembly clearance and ensures instrument data acquisition accuracy (for example, pressure and temperature instrument errors are controlled within ±0.5% FS).
3. Comprehensive Protection
Die-casting allows for integrated sealing grooves and dust ribs. When combined with a silicone rubber seal, the housing achieves an IP67 rating, shielding against high-altitude humidity (≤95% RH), oil, and dust intrusion. Furthermore, the housing, after anodizing or spray-coating, extends its temperature range to -60°C to 150°C, withstanding sudden temperature fluctuations at altitudes up to 10,000 meters. Its salt spray test life is ≥5,000 hours, making it suitable for maritime flight environments.
(II) Unique Features: Aviation-Grade Functional Integration Design
1. Integrated Functional Integration
This breaks away from the traditional "housing + bracket" split design. Using die-casting technology, the instrument mounting post, heat sink fins, and electromagnetic shielding ribs (thickness 0.8-1.2mm) are integrally molded. This reduces the number of parts by over 30% and minimizes the risk of assembly failures (such as looseness and poor contact). The heat sink fins lower the instrument's operating temperature by 8-12°C, preventing chip derating due to high temperatures.
2. Aviation-Grade Compliance Design
The housing material must be certified for aviation materials (e.g., AMS-QQ-A-250/11), and the die-casting process must be fully traceable (each batch of housings is accompanied by a material report and process parameter records), complying with the AS9100 aviation quality management system. Furthermore, the housing edges feature rounded corners (R ≥ 1.5mm) to prevent scratches on operators during maintenance and comply with aviation safety regulations.
II. Core Features of Die-Casting Technology for Instrument Housings
Die-casting technology, as the mainstream molding process for aviation instrument housings, perfectly matches the performance requirements of these housings. Its core technical features are as follows:
(1) High-Pressure, High-Speed Molding: Ensuring Structural Density and Precision
Using a die-casting machine with a clamping force of 500-2000T, molten metal (aluminum alloy melting temperature 650-700°C) is pressed into the mold cavity at high pressure (filling speed 5-15m/s) at 80-120MPa. The molten metal is completely filled within 0.1-0.5 seconds, allowing for rapid cooling and finalization, reducing grain coarsening and increasing the housing's structural density to over 98%, thereby preventing internal porosity that could lead to insufficient strength or protective failure.
(2) Complex Structure Molding Capability: Achieving Functional Integration
The mold can be designed with complex internal cavities (such as mounting slots 10-30mm deep and shield gaps 0.5-1mm wide). During die-casting, thin-walled components (minimum wall thickness 1.5-2mm) and reinforcing ribs (5-10mm high) can be formed in one go, eliminating the need for subsequent welding or splicing. This addresses the need for "multi-functional integration" that is difficult to achieve with traditional machining. For example, the cooling fins and mounting holes on an instrument housing can be formed simultaneously, improving processing efficiency by over 40%.
(3) High Material Utilization and Batch Stability
Compared to traditional cutting (material utilization rates of only 30-50%), die-casting technology achieves a material utilization rate of 85-95%, requiring only simple trimming of gates and flash. Furthermore, during batch production, the molding cycle per mold is consistently 30-60 seconds, and the dimensional deviation of housings within the same batch is ≤0.03mm, meeting the "batch consistency" requirements for aviation components. The average daily production capacity of a single production line can reach 500-2000 pieces.
(4) Compatibility with Aviation-Grade Quality Control
After die-casting, the parts undergo X-ray nondestructive testing (to check for internal porosity and pores), mechanical property testing (tensile strength and elongation), and dimensional three-dimensional inspection. Key process qualification rates must reach ≥99.5%. Furthermore, the molds are constructed from H13 hot-work die steel and nitrided (surface hardness ≥60 HRC), resulting in a service life of 50,000-100,000 cycles. This ensures long-term production stability and meets the core requirement of "high reliability" for aviation components.
