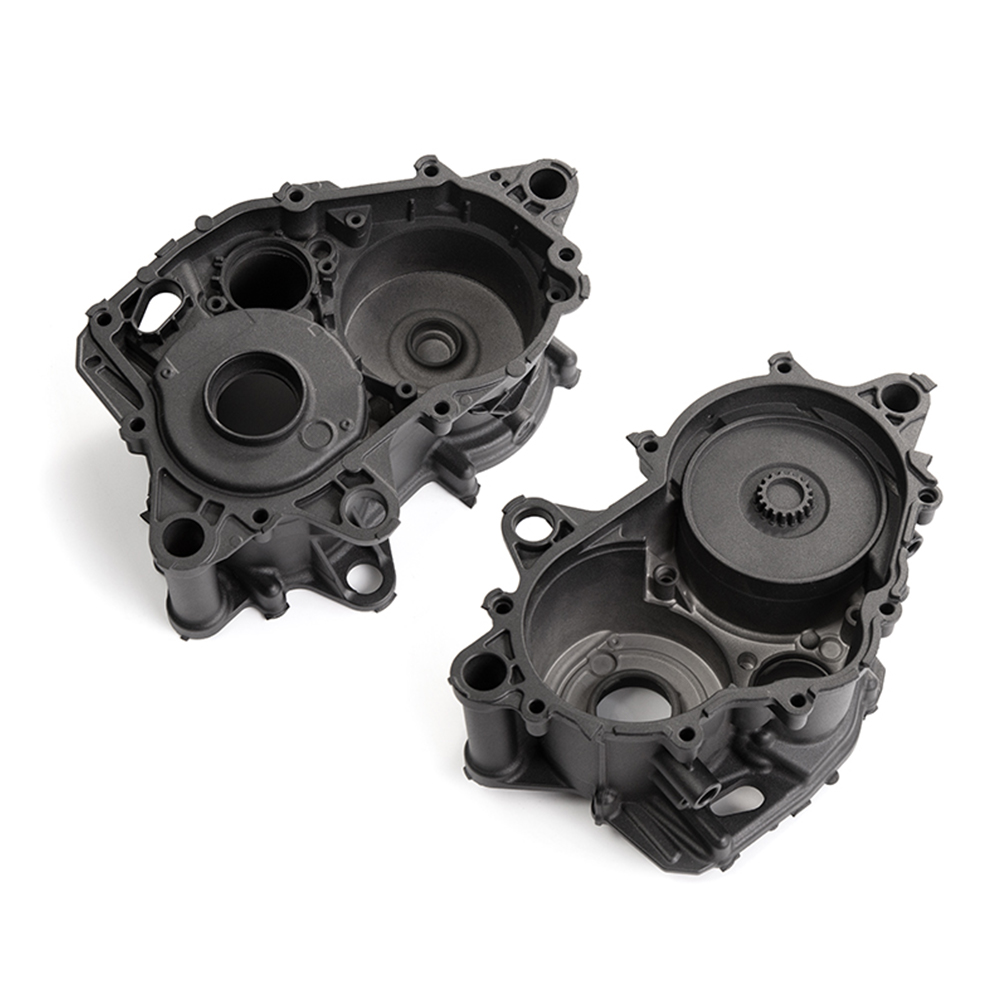

Ⅰ. Advantages and Features of Motorcycle Crankcases and Analysis of Die-Casting Technology
As the core load-bearing component of a motorcycle engine, the crankcase serves as both the "skeletal framework" housing the crankshaft, connecting rod, and other moving mechanisms, and a key node in maintaining engine sealing and power transmission efficiency. The development of modern die-casting technology has revolutionized the crankcase's materials, structure, and performance, achieving a perfect balance between lightweighting, high strength, and precision manufacturing.

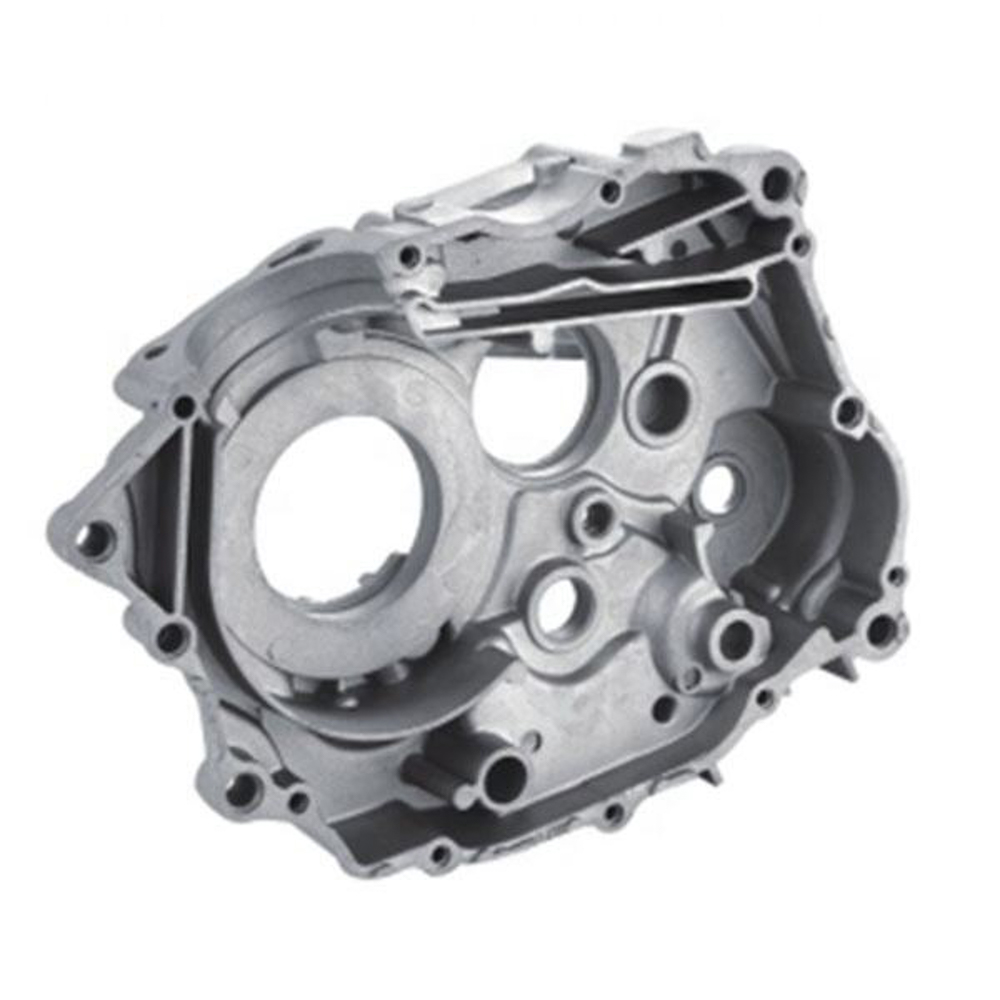

Ⅱ. The Crankcase's Material Revolution and Performance Advantages
The performance advantages of motorcycle crankcases stem primarily from precise material selection. Current mainstream products generally utilize aluminum-silicon die-cast aluminum alloys such as YL112 and YL113. These alloys offer excellent fluidity and formability, making them suitable for filling and molding complex cavities. More advanced, high-end models are also utilizing magnesium alloys. For example, AE42 magnesium alloy, with its exceptional high-temperature strength and creep resistance, performs exceptionally well in engine environments with continuous operating temperatures of 180-210°C, achieving a 15-20% weight reduction compared to traditional aluminum alloys. Yamaha's rear frame, manufactured using CF magnesium alloy die-casting technology, is 20% lighter than traditional aluminum alloy components, significantly improving vehicle handling.

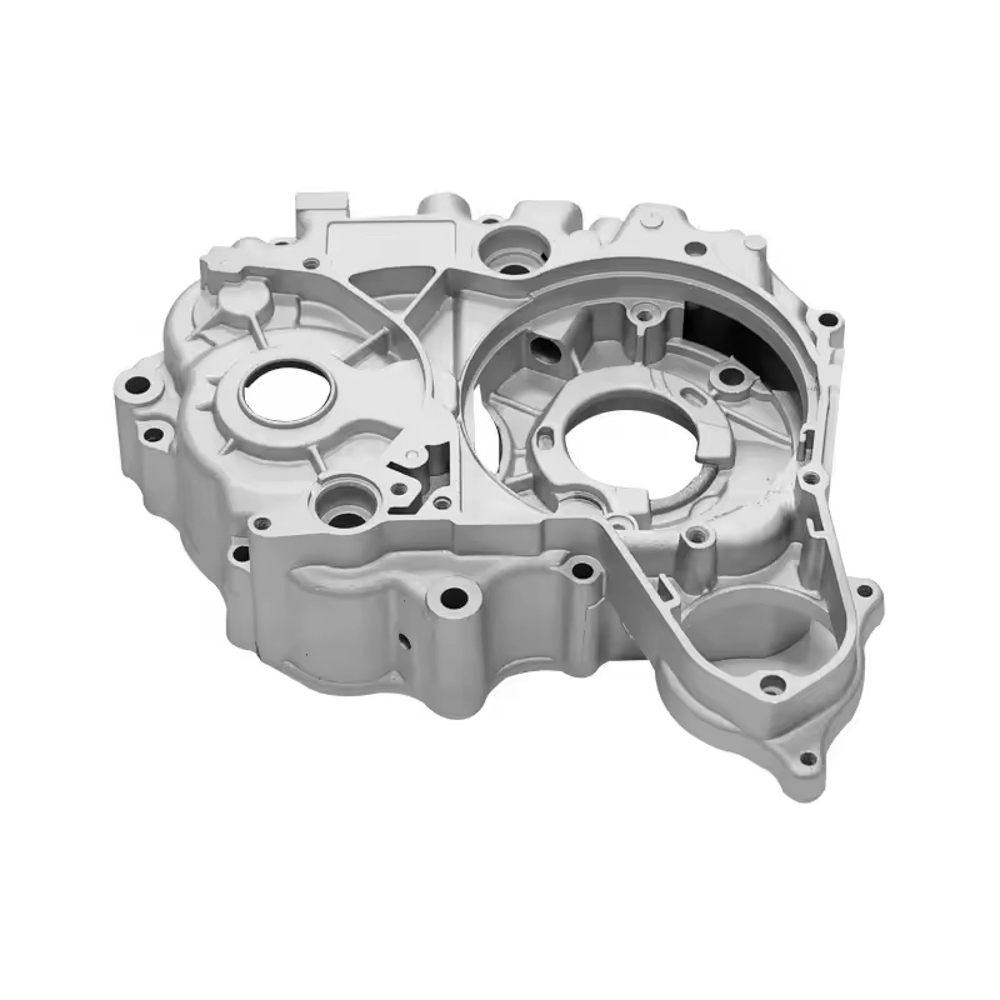

Optimized structural design further maximizes the material's potential. Using mold flow analysis using CAE software such as Flow3D, engineers precisely designed the rib layout and wall thickness distribution, resulting in an ultra-thin structure of just 1.7 mm at its thinnest point on the MT-09 model. This represents a 50% reduction in thickness compared to the previous generation while maintaining structural rigidity. The integrated die-casting process consolidates the traditional split-part structure into a single component, reducing crankcase weight by 12-15% for mid- to large-displacement motorcycles while increasing rigidity by approximately 18%, effectively reducing engine vibration and noise. This "material-as-needed" design philosophy ensures sufficient thickness in critical areas that withstand explosive pressure, while reducing thickness in non-load-bearing areas.
The breakthroughs in sealing performance and durability are also remarkable. Crankcases produced using vacuum die-casting technology can achieve a porosity of less than 0.03%, nearly 70% lower than traditional die-casting, and boast an X-ray inspection pass rate of 99.2%. Combined with a soft nitriding heat treatment process—surface strengthening with the introduction of ammonia at 565-575°C—the crankcase's high-temperature and friction resistance are significantly enhanced. A special hole-expansion process enhances the metal density around the shaft bore, completely eliminating shrinkage cracking, a common problem with traditional processes. These technological innovations have extended the service life of modern crankcases by over 30% compared to a decade ago.

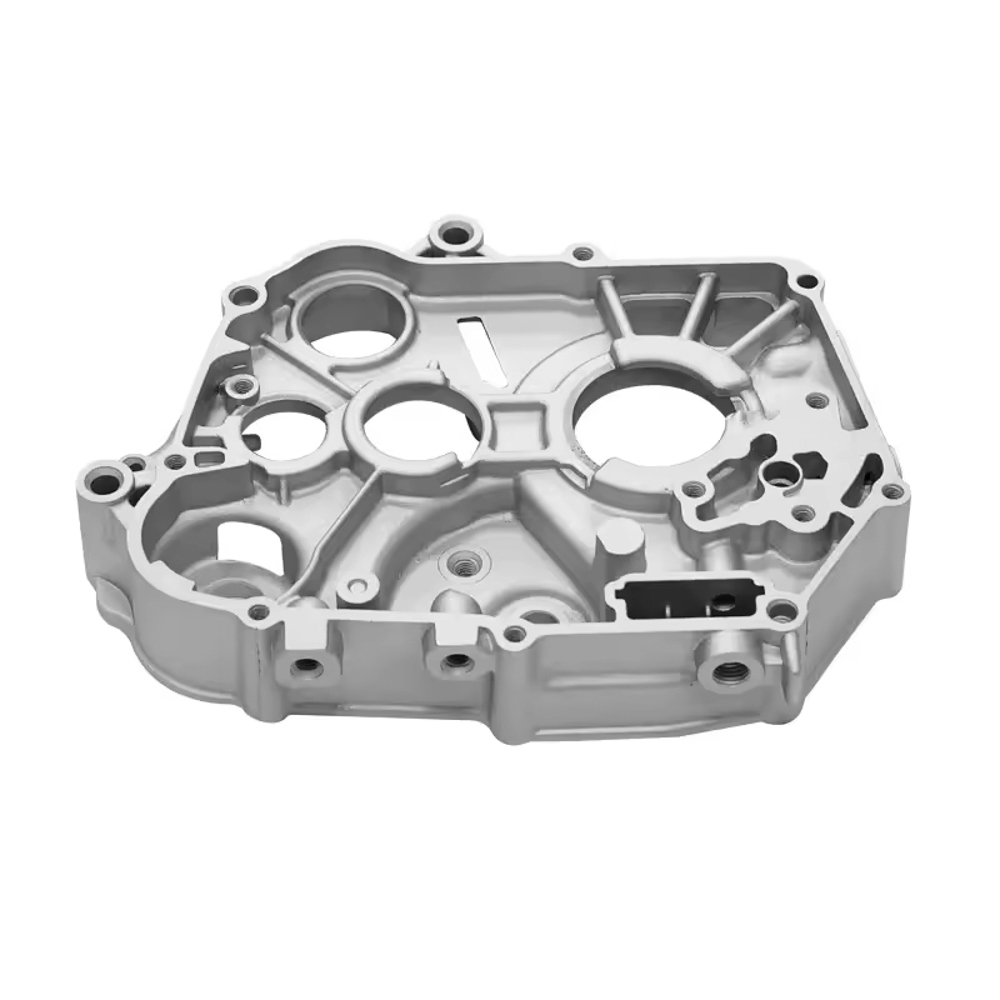

Ⅲ. Technical Breakthroughs and Manufacturing Features of Die-Casting Technology
High-pressure die-casting technology has revolutionized crankcase manufacturing. Its core advantage lies in its perfect combination of precision control and efficient production. On large die-casting machines such as the J1180G, molten metal is injected into the mold cavity at high speeds under high pressures ranging from tens to hundreds of MPa, enabling the efficient production of multiple parts per minute. Yamaha developed a special process for the MT-09 model. By optimizing mold vacuum, temperature, and molten metal injection parameters, the process allows molten aluminum to smoothly pass through a narrow 1.7mm channel. This precise control enables the molding of complex, ultra-thin-wall structures.

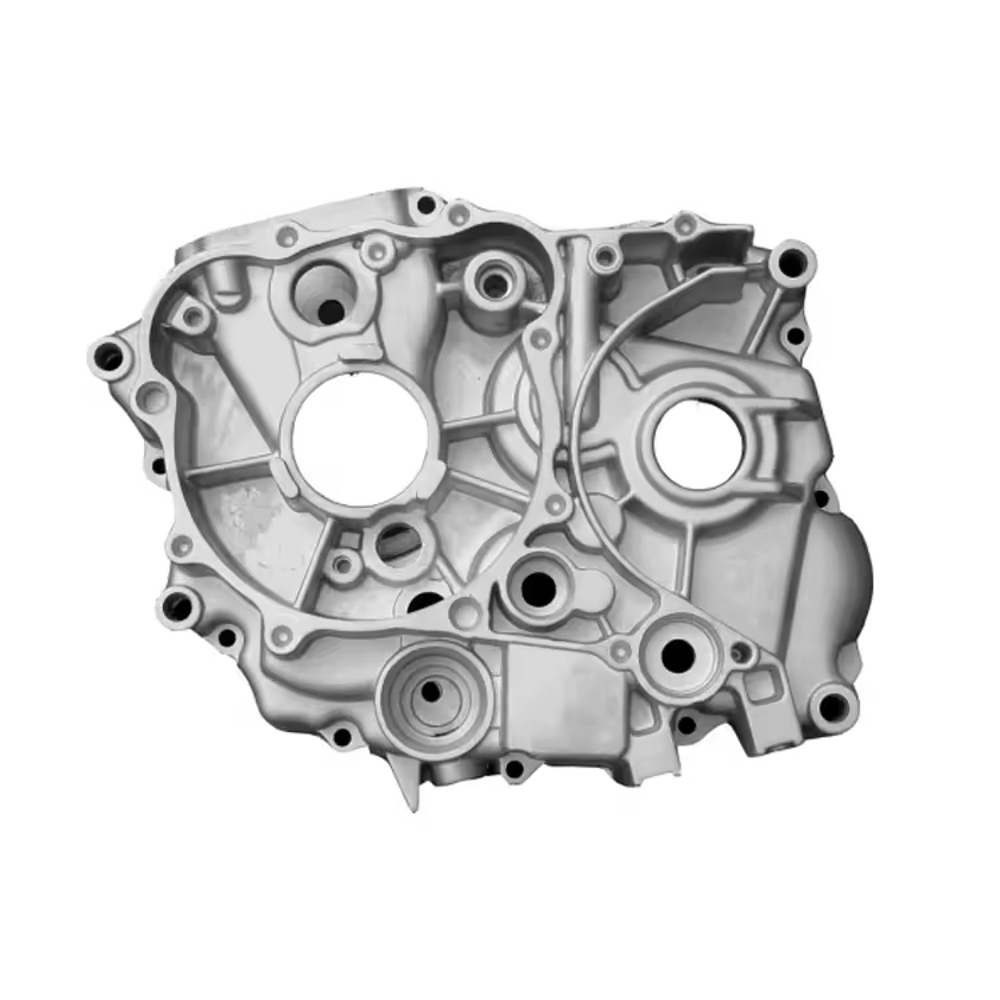

Innovation in mold technology ensures die-casting quality. The die frame, constructed of H13 hot-work die steel, measures up to 840mm × 772mm × 800mm. A cooling system integrated into the movable and fixed die plates enables precise temperature control. A hydraulic core-pulling mechanism and multi-slide design address the molding challenges of complex side holes in the crankcase. Fifty-two precisely positioned ejector rods ensure smooth, deformation-free demolding of thin-walled castings. These advances in mold technology have enabled die-cast parts to achieve dimensional accuracy of CT4-CT6 and surface roughness as low as Ra1.6-3.2μm, significantly reducing the amount of subsequent processing.
The integration of advanced processes further enhances casting quality. Vacuum-assisted die-casting technology creates a vacuum environment of less than 25mbar within the mold cavity, controlling the internal porosity of the casting to below 0.5%, a significant improvement compared to the 1.8-3.2% achieved with conventional die-casting. Localized pressurization effectively eliminates shrinkage defects in thick-walled areas, resulting in an average increase in tensile strength of 18.7% and elongation of 22.3%. Leading domestic companies, such as Guangdong Hongtu, have developed fully automated vacuum die-casting production lines that integrate real-time vacuum monitoring and intelligent mold filling control, achieving a cycle time of 48 seconds per piece and an exceptionally high yield rate of 97.6%.
A balance between environmental protection and economic efficiency is another hallmark of modern die-casting technology. Aluminum alloys have a recycling rate of over 90%, and the energy consumption for recycling and reuse is only 5% of that of primary aluminum production, perfectly aligning with the concept of green manufacturing. Although die-casting molds require a significant initial investment, in large-scale production (typically over 100,000 pieces), the unit manufacturing cost is significantly lower than sand casting. Yamaha's technological innovation, achieved through miniaturized casting machines that achieve high-speed filling, not only reduces equipment investment but also expands the application of die-casting technology to overseas manufacturing bases.
From material selection to process innovation, the technological evolution of motorcycle crankcases profoundly reflects the trajectory of the die-casting industry. When Yamaha engineers proudly declared, "Aluminum alloys are a field where failure is not an option," they were safeguarding not only manufacturing precision but also the core strength that ensures reliable operation of motorcycle engines through the perfect combination of materials science and process control. This ability to transform technical parameters into a driving experience is the true charm of modern die-casting technology.
