In high-volume manufacturing, unresolved casting defects lead to compounding costs. You might experience elevated scrap rates. You might face delayed assembly or catastrophic field failures. Standard High-Pressure Die Casting (HPDC) inherently involves turbulent flow. It also relies on rapid cooling. Predictable quality is highly achievable. Zero-defect production remains a statistical ideal. Strict parameter control can reduce critical flaws. You can turn them into functional non-issues.

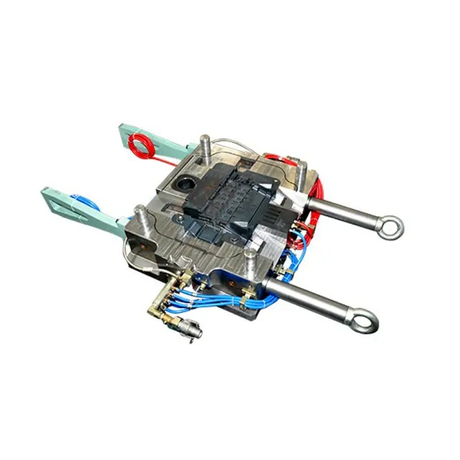

This guide helps you transition from reactive troubleshooting to proactive engineering. We break down the root causes of common flaws. You will learn about Aluminum Die Casting Parts. We outline advanced diagnostic methodologies to protect your production line. We also provide a decision-stage framework. You can use it to evaluate a manufacturing partner’s systems and secure long-term reliability.
Internal vs. Superficial Risks: Internal defects (gas and shrinkage porosity) compromise structural integrity, while superficial defects (flow marks, blisters) threaten aesthetics and secondary finishing.
Data-Driven Prevention: Optimal quality requires strict parameter adherence—such as maintaining mold temperatures between 180°C–280°C and aluminum melt temperatures at 700°C–720°C.
Advanced Diagnostics are Mandatory: Relying solely on visual inspection is inadequate. Reliable vendors must employ Non-Destructive Testing (NDT) like X-ray, ultrasonic testing (UT), and Reduced Pressure Tests (RPT).
Evaluating Partners: A credible manufacturer doesn't just promise good parts; they utilize mold-flow simulation, real-time thermal imaging, and documented Parameter (PQ2) optimization.
Internal flaws threaten the mechanical safety of your components. They often remain invisible to the naked eye. They cause mechanical failure or sudden leakage under pressure.
You will see smooth, spherical voids trapped inside the metal. These voids drastically reduce structural strength.
Root Causes: Moisture induces hydrogen in molten aluminum. Liquid aluminum easily absorbs this gas. Turbulent injection speeds trap air during filling. Mold release agents volatilize excessively under high heat.
Diagnosis: Destructive sectioning reveals internal structures. X-ray inspection provides non-destructive visibility. Specific gravity testing calculates overall density drops.
Engineering Solutions: Implement rotary degassing using inert gases. Keep your melt temperature strictly between 700°C and 720°C. Adopt vacuum-assisted HPDC. This specific technique reduces porosity levels below 2%.
You will spot irregular, jagged voids. They occur predominantly in thicker sections during solidification.
Root Causes: Uneven wall thickness causes isolated liquid pockets. Inadequate holding pressure fails to feed cooling metal. Restricted metal flow paths choke off molten material.
Diagnosis: Ultrasonic Testing (UT) detects deep cavities. Apply fractal analysis to void perimeters. This differentiates jagged shrinkage voids from smooth gas porosity.
Engineering Solutions: Redesign parts for uniform wall thickness. Keep standard aluminum ranges between 1.5mm and 3.5mm. Optimize your stepped holding pressure. Apply 800 to 1000 kg/cm² for pressure-tight applications.
Fractures destroy part integrity. Solidification causes hot tears. They usually appear oxidized. Ejection forces cause cold cracks. They look clean and unoxidized.
Root Causes: High iron (Fe) content causes severe brittleness. Uneven cooling rates stress the metal structure. Inadequate draft angles create friction during ejection.
Engineering Solutions: Control your alloy composition carefully. Limit iron buildup inside the holding furnace. Ensure minimum draft angles of 0.5° for smooth surfaces. Always preheat dies to minimum working temperatures before casting.
Surface flaws disrupt downstream operations. They complicate CNC machining. They ruin plating processes and mating tolerances.
You will notice distinct, overlapping lines. Two metal fronts fail to fuse completely upon meeting.
Root Causes: The metal cools before filling the mold entirely. Slow injection speeds allow premature solidification. Inadequate die temperatures drain thermal energy from the melt.
Engineering Solutions: Calculate precise fill times. Match them to wall thickness. Aluminum walls under 2mm require roughly 0.09 seconds. Utilize tapered runner designs. They help maintain high flow velocity continuously.
Bubbles form on the exterior surface. They often burst during secondary thermal processes like powder coating.
Root Causes: Sub-surface gas porosity expands under intense heat. Excessive die lubricant buildup traps expanding gases just below the skin.
Engineering Solutions: Implement micro-spray lubrication systems. These apply thin, uniform coats. Audit your gating system geometry. This guarantees smooth venting of trapped gases.
Dimensional distortion occurs post-ejection. Parts fail geometric dimensioning and tolerancing (GD&T) checks.
Root Causes: Unbalanced ejection pin placement applies uneven force. Premature ejection happens while core metal remains soft. Uneven thermal gradients warp the die and the part simultaneously.
Engineering Solutions: Extend your cooling cycle times appropriately. Map die temperatures using thermal imaging cameras. Redesign ejector pin layouts. You must distribute ejection force evenly across the entire part footprint.
Modern manufacturing demands scientific control. You must shift the narrative from fixing mistakes to engineering out failure. Use data and physics to secure yield rates.
Defects rely heavily on chemistry. Dissolved hydrogen scales aggressively as melt temperatures rise. You cannot rely on manual checks. Vendors need automated moisture controls. They must perform continuous spectral analysis on every alloy batch. Conduct Reduced Pressure Testing (RPT) before pouring. This calculates the density index accurately. It ensures the metal remains pure.
Trial and error wastes money. It has no place in modern HPDC. Apply PQ2 diagrams systematically. They mathematically align your die casting machine’s power. They match it directly to the die’s gating design. Strategically place venting and overflow wells. Rely purely on Mold Flow Simulation data for this placement.
Standard HPDC cannot achieve zero percent porosity. We must acknowledge these physical limitations. Transition to alternative methods for highly critical parts. Specify Squeeze Casting for high-stress applications. Use Vacuum Die Casting for leak-proof components. Applying rigorous die casting quality control protects your downstream assembly. It filters out non-conforming units efficiently.
Parameter Category | Optimal Range / Standard | Primary Defect Prevented |
|---|---|---|
Mold Temperature | 180°C – 280°C | Cold Shuts, Flow Marks |
Melt Temperature | 700°C – 720°C | Gas Porosity, Shrinkage |
Fill Time (Walls <2mm) | ~0.09 seconds | Misruns, Cold Shuts |
Stepped Holding Pressure | 800 – 1000 kg/cm² | Shrinkage Porosity |
Draft Angles | 0.5° minimum | Cold Cracks, Ejection Drags |
Evidence-based inspection separates credible manufacturers from commodity suppliers. Visual checks miss critical internal flaws. You must deploy advanced technologies.
Upgrading inspection methods protects your final product.
X-Ray / Radiography: You need this for auditing internal voids. It is absolutely essential for high-stress automotive and aerospace components.
Ultrasonic Testing (UT): Use it to detect deep micro-cracks. It exposes hidden material inclusions perfectly.
Magnetic Particle & Dye Penetrant: These are low-cost, highly effective methods. They expose surface-level micro-fractures. Apply them strictly prior to surface finishing.
NDT Method | Target Defect Location | Best Applied To |
|---|---|---|
Radiography (X-Ray) | Internal Voids | High-stress structural parts |
Ultrasonic Testing (UT) | Internal Cracks | Thick-walled components |
Dye Penetrant | Surface Fractures | Parts awaiting plating/painting |
Fluid-handling components require strict integrity checks. Pump housings and heat sinks need absolute validation. Submerge them for water immersion testing. Use helium leak testing for superior precision. Resin impregnation offers an acceptable recovery method. Use it only for low-pressure applications. Prohibit impregnation completely for critical structural loads.
Actionable shortlisting criteria protect procurement and engineering teams. You must audit a supplier strictly before awarding contracts.
Never approve a tool prematurely. You must request the Mold Flow report. Demand the Thermal Simulation report first. A credible vendor supplies these eagerly. They use simulations to prove gating geometry works.
Suppliers need a documented rating system. They need a logical troubleshooting hierarchy. They should clean parting lines first. They should not blindly increase clamping force. Systematic problem-solving prevents machine wear. It also prevents tool damage over time.
Do not simply walk the production line. A reliable partner for Aluminum Die Casting Parts maintains robust testing labs. They require in-house spectrometry. They need X-ray validation equipment. They must provide CMM (Coordinate Measuring Machine) dimensional reporting. This data proves their absolute compliance to your specifications.
Summary: Defect-free aluminum die casting isn't an accident. It is the strict orchestration of metallurgy, fluid dynamics, and thermal management. You achieve success through rigorous parameter control.
Next Steps: When sourcing complex parts, evaluate suppliers comprehensively. Look beyond basic piece-price discussions. Assess their inspection infrastructure carefully. Prioritize partners who lead with data. They must utilize PQ2, simulations, and NDT transparently.
Call to Action: Engage our engineering team today for a Design for Manufacturability (DFM) review. Request our quality control whitepaper to audit your current designs properly. We will help you eliminate defects early.
A: Acceptable porosity heavily depends on the final application. Decorative parts easily tolerate more internal porosity. They do not experience mechanical stress. Pressure-tight components require completely different standards. Structural parts demand strict limits. You must utilize vacuum casting or tight process controls for these. Your goal is keeping porosity strictly under 1-2 percent.
A: You differentiate them by visual and microscopic appearance. Gas porosity creates smooth, round voids inside the metal. Trapped air or hydrogen causes this. Shrinkage porosity creates irregular, jagged cavities. It forms when isolated liquid pockets cool unevenly. Specialized ultrasonic testing easily identifies these distinct structural signatures.
A: You can salvage some minor issues realistically. Resin impregnation seals minor leaks. Cosmetic linishing removes superficial flow marks safely. However, you cannot repair fatal flaws. Structural cracks and severe warpage require immediate scrapping. Relying heavily on repairs remains highly cost-inefficient. You should prioritize strict process control instead.
