Selecting the right manufacturing process for custom aluminum parts is rarely a simple preference. It dictates your time-to-market, production budgets, and the mechanical reliability of the final product. Every early production choice directly shapes the long-term viability of your hardware project.
Procurement managers and hardware engineers often face a critical bottleneck when scaling operations. They frequently struggle transitioning from low-volume machining to high-volume casting. Teams need to scale rapidly without sacrificing tight tolerances or exposing hidden structural defects. Moving too aggressively into mass production often introduces expensive engineering delays and critical material failures.
This guide breaks down the essential economic thresholds, microstructural material differences, and practical lifecycle strategies. You can evaluate die casting cnc machining options based on hard evidence rather than generalized claims. By understanding these core production dynamics, you will secure optimal part performance at any production volume.
Volume dictates the economics: CNC machining dominates runs under 1,000 units, while die casting aggressively drives down per-unit costs past the 10,000-unit mark.
Alloys and grain structure matter: Machined aluminum retains its billet grain structure for superior fatigue resistance; die casting requires specific flow-optimized alloys (like A380).
The processes are complementary: The most cost-effective scaling strategy relies on a hybrid approach—using CNC for prototyping and secondary high-precision finishing on mass-produced die casting parts.

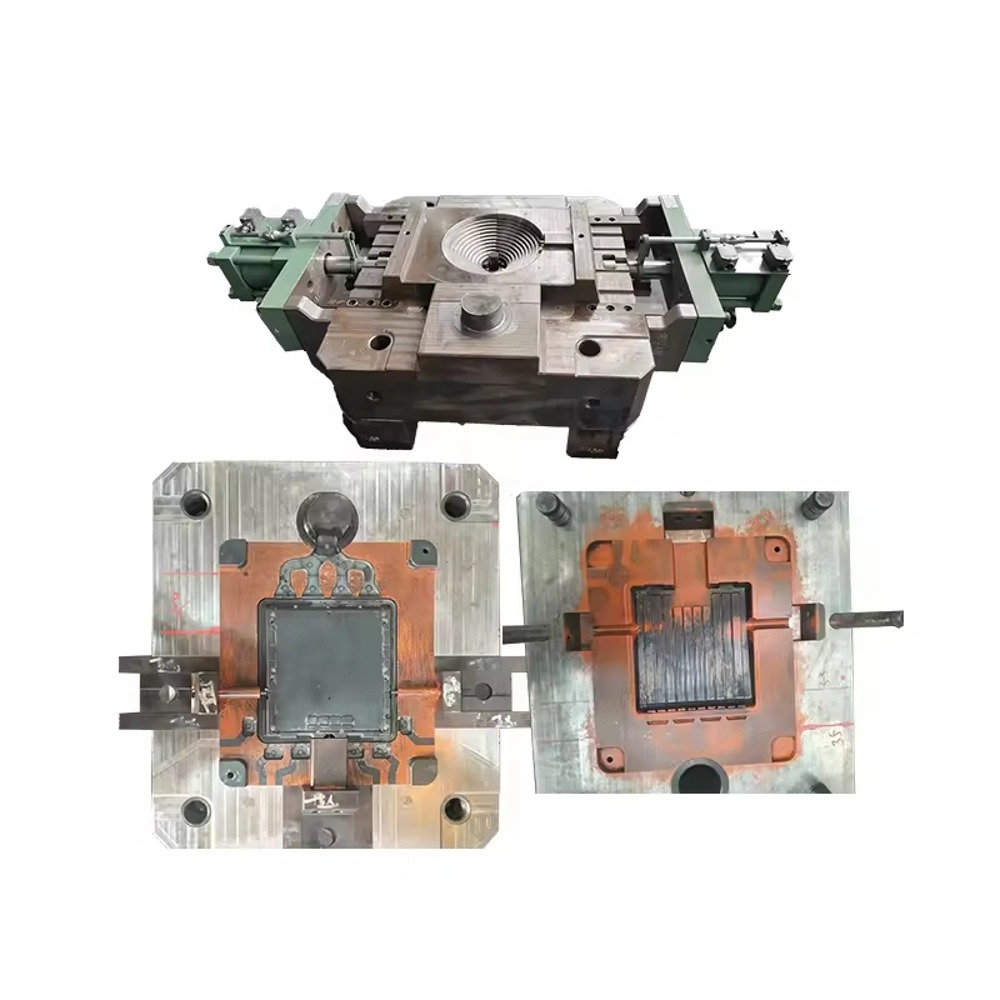

Engineers must understand the physical mechanics driving each manufacturing process to make informed decisions. CNC machining operates as a strictly subtractive fabrication method. It relies on automated cutting tools to systematically carve material away from a solid metal block. You achieve precise final dimensions through controlled, gradual material removal. High-pressure die casting functions entirely differently. It acts as a highly efficient near-net shape fabrication process. Manufacturers inject molten aluminum into a hardened steel mold cavity. Typical injection pressures range massively from 1,500 to 25,000 psi. This immense force allows the liquid metal to fill complex, delicate geometries rapidly before cooling.
Material selection heavily restricts your manufacturing options. You cannot easily cast the same alloys you machine.
Manufacturing Process |
Primary Aluminum Alloys |
Material Characteristics |
|---|---|---|
CNC Machining |
6061, 7075, 2024 |
Favors structural integrity and high machinability. Excellent for aerospace and high-stress applications. |
Die Casting |
A380, A383 |
Requires alloys heavily optimized for rapid melt flow and thermal stability during cavity injection. |
Material microstructure dictates the mechanical reliability of your product. You must consider these microscopic differences during early part design. Machining operations occur well below the recrystallization temperature of aluminum. This preserves the highly uniform, directional grain structure of the original extruded billet. Consequently, machined parts exhibit extremely low residual stress. They offer exceptional resistance against structural fatigue over extended lifecycles.
Casting introduces a distinct metallurgical reality. Molten metal crystallizes rapidly inside the chilled mold cavity. This rapid cooling creates a dense external skin but leaves a looser internal grain structure. Cast metal components generally show slightly higher susceptibility to stress fatigue. Engineers typically cap high-pressure casting fatigue thresholds around 10^6 psi limits. You must factor this structural ceiling into your safety margins.
Production volume serves as the absolute primary driver for manufacturing selection. Industry standards establish clear economic thresholds for both technologies. Machining remains the dominant financial choice for production runs under 1,000 parts. The 1,000 to 5,000 unit range acts as an evaluation gray zone. Here, part complexity heavily influences the final decision. Once production demands cross the 10,000-unit threshold, casting becomes economically unbeatable.
To visualize this volume threshold, we can examine a realistic amortization scenario. The initial tooling burden drastically shifts the financial viability of your project.
Production Volume |
Die Casting Cost per Part (Includes $20k Tooling Burden) |
CNC Machining Cost per Part (Zero Tooling Burden) |
Clear Economic Winner |
|---|---|---|---|
100 Units |
$220.00 / part |
$25.00 / part |
CNC Machining (Saves $19,500) |
10,000 Units |
$4.00 / part |
$15.00 / part |
Die Casting (Saves $110,000) |
At 100 units, the $20,000 mold creates an unmanageable $220 tooling burden per part. However, at 10,000 units, that tooling burden practically vanishes. Casting total costs drop to just $4 per part, yielding massive six-figure production savings.
Best Practice: Always lock your engineering designs before funding expensive molds. Subtractive manufacturing allows for agile, zero-cost design updates between production batches. You simply update a digital toolpath. Modifying a hardened steel mold is remarkably expensive and notoriously slow. In many cases, adding material to an existing mold design is structurally impossible. It requires entirely new tool fabrication, destroying your budget.
Dimensional accuracy varies significantly between these two methods. Subtractive machining routinely achieves standard tolerances of ±0.025 mm. High-end equipment can push these limits even tighter for aerospace components. Casting baselines operate differently. Shrinkage during cooling limits extreme accuracy. Standard casting tolerances generally sit roughly around ±0.1 mm per 25mm of part dimension.
Die Casting: This process excels at forming extreme thin-wall sections. It easily produces complex, interconnected internal cavities. This capability drastically reduces the need for complex multi-part mechanical assemblies.
CNC Machining: This method proves superior for thick, bulky metal components. It easily cuts sharp internal corners. It remains mandatory for intricate structural designs unable to accommodate necessary mold draft angles.
Common Mistake: Engineers frequently fall victim to the porosity trap. Porosity refers to microscopic air pockets trapped inside the metal during rapid injection. These voids predominantly hide deep inside thick structural cross-sections. If you design die casting parts with thick walls and attempt deep secondary machining later, you risk disaster. Cutting into these dense sections frequently exposes hidden air voids. This error immediately leads to high manufacturing scrap rates and fatally compromised structural integrity. Always core out thick sections during the mold design phase.
The raw surface appearance straight off the production line differs notably. Machining leaves a remarkably clean, directional tool-mark finish. Equipment operators can easily achieve a surface roughness (Ra) below 1.6 without secondary effort. Casting establishes a slightly grainy, matte visual baseline. Standard casting roughness generally falls between Ra 1.6 and 3.2.
Production rarely ends when the machine stops moving. You must budget time for secondary finishing operations.
Subtractive Readiness: Milled components often exit the machine ready for immediate use or direct protective anodizing.
Mandatory Casting Cleanup: Cast components require mandatory secondary operations. Technicians must physically remove overflow flash, injection gates, and runner system remnants before shipping.
Corporate sustainability criteria heavily influence modern procurement strategies. Subtractive methods inherently generate high immediate material removal rates. While recycling facilities gladly accept aluminum chips, the initial energy waste remains high. Casting proves highly material-efficient due to its near-net shape capabilities. Furthermore, casting facilities allow immediate on-site remelting of sprues and flash material. This closed-loop recycling process makes casting highly favorable for strict green supply chain requirements at scale.
Hardware teams often view these processes as direct competitors. This mindset limits scaling efficiency. You should position the two processes as a sequential lifecycle strategy for hardware scaling. They complement each other perfectly when deployed correctly.
You need to validate product-market fit fast. You use subtractive machining to produce rapid prototypes. This phase carries absolute zero tooling risk. You can deploy low-volume beta testing units quickly. If a structural design fails field testing, you lose no mold investment capital.
Once you validate the core mechanics, you must prepare the design for mass production. Engineers initiate rigorous Design for Manufacturing (DFM) adjustments. You add standard draft angles to ensure mold release. You strictly uniform all wall thicknesses. You intentionally core out thick metal sections to prevent future porosity defects. This optimized model bridges the gap between subtractive intent and casting constraints.
You finally transition into a highly profitable mixed manufacturing model. You cast 95% of the bulk component geometry. This strategy aggressively drives down baseline unit costs. Following the initial cast, you execute targeted aluminum cnc machining on the raw part blanks. You selectively mill precise mating surfaces, tap complex threads, or cut critical O-ring grooves. You achieve ultra-tight tolerances exactly where needed without paying premium subtractive costs for the entire part body.
Your optimal manufacturing choice hinges entirely on your current product lifecycle stage, locked-in design status, and strict volume projections. To scale hardware successfully, implement these action-oriented next steps:
Evaluate your exact production volume projections before committing budget to any hard steel tooling.
Avoid early mold investments entirely until your structural designs are fully validated through field testing.
Conduct a joint Design for Manufacturing (DFM) review with your engineering team to properly transition subtractive designs into castable geometries.
Request parallel economic quotes from manufacturing partners based on your projected 12-month volume demands to find your true crossover point.
A: Transitioning takes several weeks due to mandatory mold fabrication. Subtractive machining operations scale up in mere days since they require no physical molds. Casting tooling demands a meticulous 4-to-8-week lead time. Manufacturers must expertly design, machine, and harden the steel dies. You also need buffer time for the First Article Inspection (FAI) approval before actual mass production begins.
A: Raw cast parts cannot match a freshly machined surface finish. Casting inherently leaves a slightly grainy, matte appearance upon mold release. If your application demands a flawless, reflective finish, you must apply secondary surface treatments. Common industrial solutions include mechanical polishing, abrasive tumbling, or secondary precision milling to successfully match a raw Ra 1.6 machined value.
A: Yes, machined parts typically offer superior mechanical strength. Machining cuts directly into extruded metal billets. This subtractive process perfectly preserves the original, highly uniform grain structure. It creates extremely low residual stress within the final part. Cast components crystallize rapidly inside a cooling mold. This makes them slightly more susceptible to stress fatigue in extreme high-load structural applications.
