Ⅰ. Core Advantages of Die-Casting Molds for General Machinery Products
1. Efficient Molding, Suitable for Mass Production

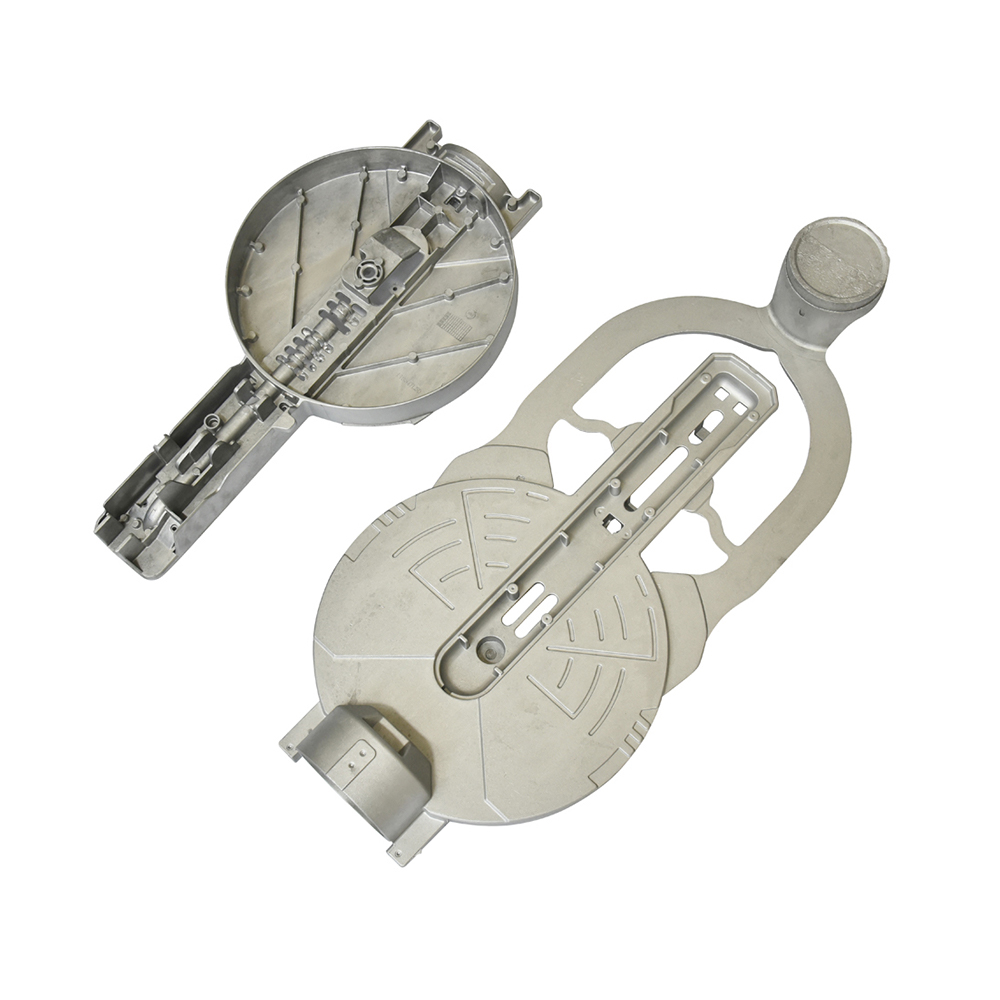

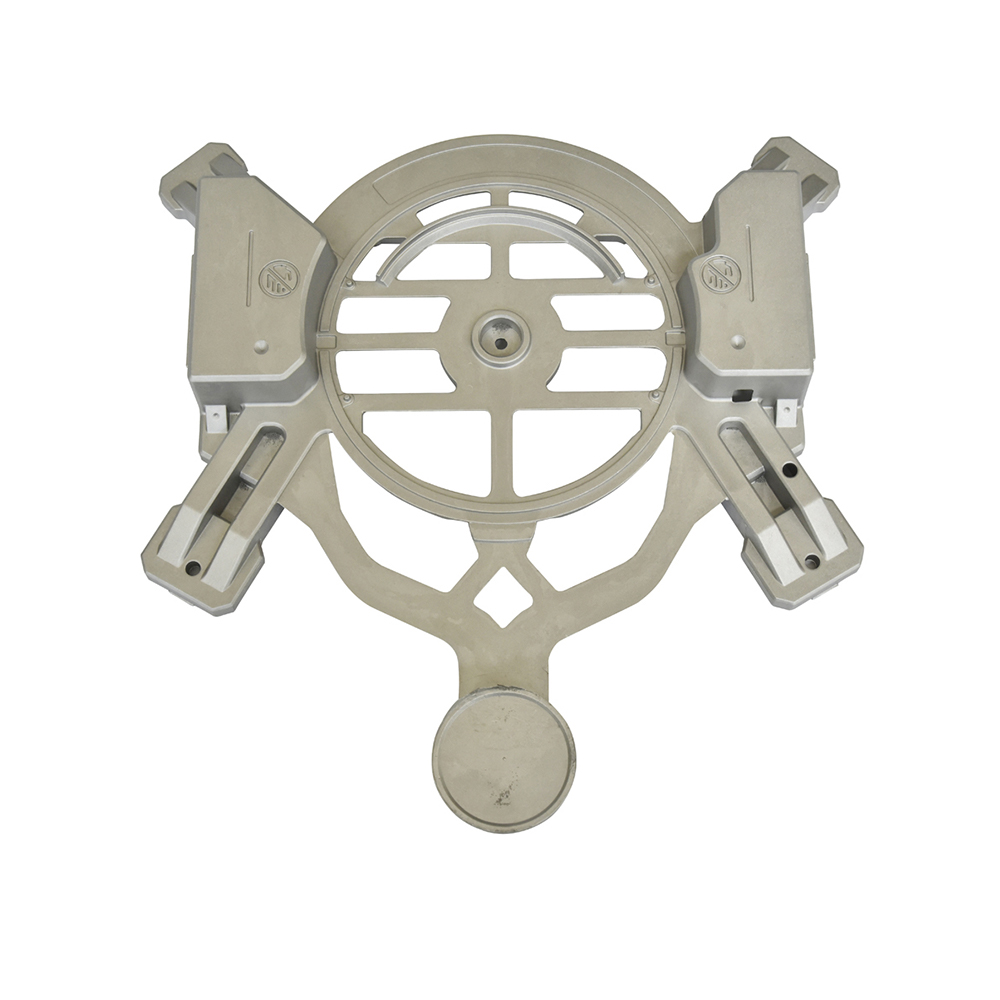

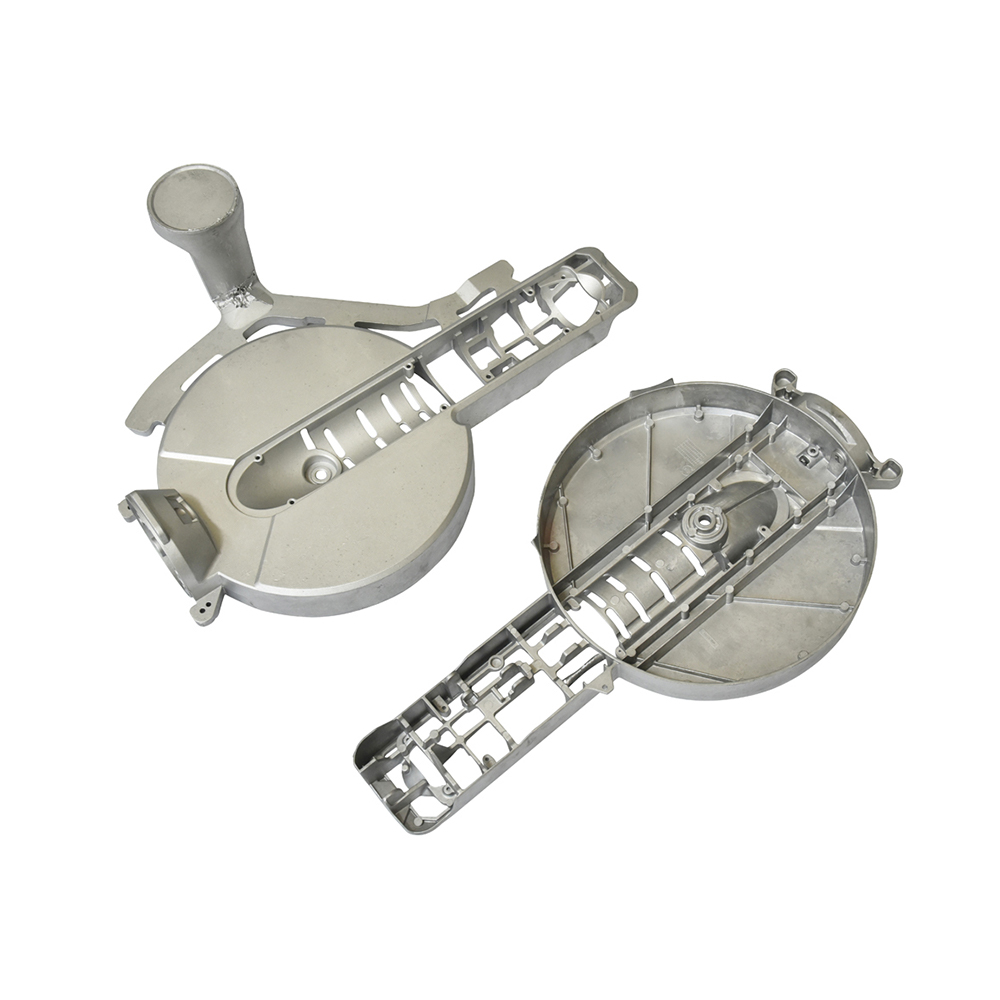

Die-casting molds utilize high-pressure, high-speed die-casting processes to achieve single-piece molding of general machinery parts (such as motor end covers, gearbox housings, hydraulic valve blocks, etc.). Production cycles are as short as seconds to minutes per part, increasing efficiency by 3-5 times compared to traditional casting molds (sand and metal molds). This meets the core requirements of large-scale mass production in the general machinery industry and significantly reduces production time and cost per unit product.
2. High-Precision Control, Reducing Subsequent Processing
The mold cavity utilizes precision machining technologies (such as CNC milling and EDM) to achieve dimensional tolerances within ±0.05mm and surface roughnesses of Ra1.6-Ra3.2μm, ensuring high dimensional consistency in the castings. After die-casting, general machinery parts (such as bearing seats and connecting flanges) require minimal or no machining to meet assembly requirements, reducing machine tool processing steps, material waste, and processing energy consumption.
3. Wide Material Compatibility, Covering Mechanical Part Performance Requirements
Compatible with a variety of die-casting alloys, including aluminum alloys (such as ADC12 and A380), zinc alloys (such as Zamak5), and magnesium alloys (such as AZ91D). Aluminum alloy die-casting molds are particularly suitable. Aluminum alloy castings combine lightweight (density of only 2.7g/cm³), high strength (tensile strength ≥200MPa), and corrosion resistance. They can replace traditional iron castings, helping to reduce weight and energy consumption in general-purpose mechanical products (such as small construction machinery and air compressors), aligning with the industry's lightweighting trend.
Ⅱ. Differentiated Features of Die-Casting Dies for General Machinery Products
1. Heat-Resistant and Pressure-Resistant Structural Design, Suitable for Harsh Working Conditions

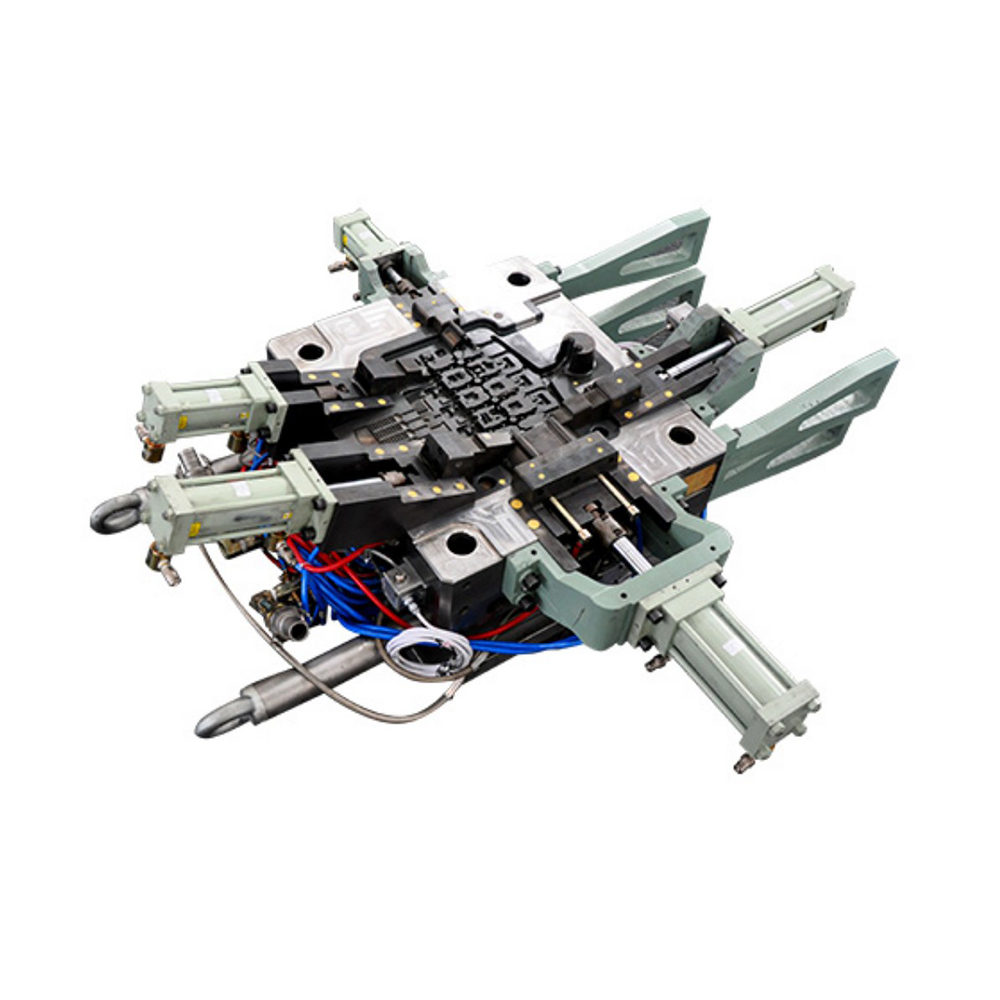

Die-casting general machinery parts must withstand injection pressures of 120-180 MPa and molten metal temperatures of 600-700°C. The mold utilizes a composite structure of "cavity inserts + reinforced mold base": the cavity inserts are constructed from H13 hot-work die steel (high-temperature strength ≥1000 MPa, excellent toughness), while the mold base is quenched and tempered 45# steel or S50C. Reinforcement ribs and guide positioning mechanisms are incorporated to prevent mold deformation or misalignment under high pressure, ensuring long-term stable operation.
2. Optimized Long Life, Reduced Replacement Costs
Mold surface hardening treatments (such as PVD coating and nitrocarburizing) enhance the cavity surface hardness (reaching HV1000 or above) and wear resistance, reducing erosion and wear from molten metal. Optimized casting systems (such as fan-shaped gates and bottom-injection runners) prevent direct impact of molten metal on weak areas of the cavity. Conventional aluminum alloy die-casting molds have a lifespan of up to 50,000-100,000 cycles. Some high-end molds (such as those using imported H13 steel with nano-coating) can exceed 150,000 cycles, significantly exceeding the lifespan of ordinary casting molds, reducing mold replacement frequency and costs.
3. Complex Structure Integration and Simplified Part Assembly

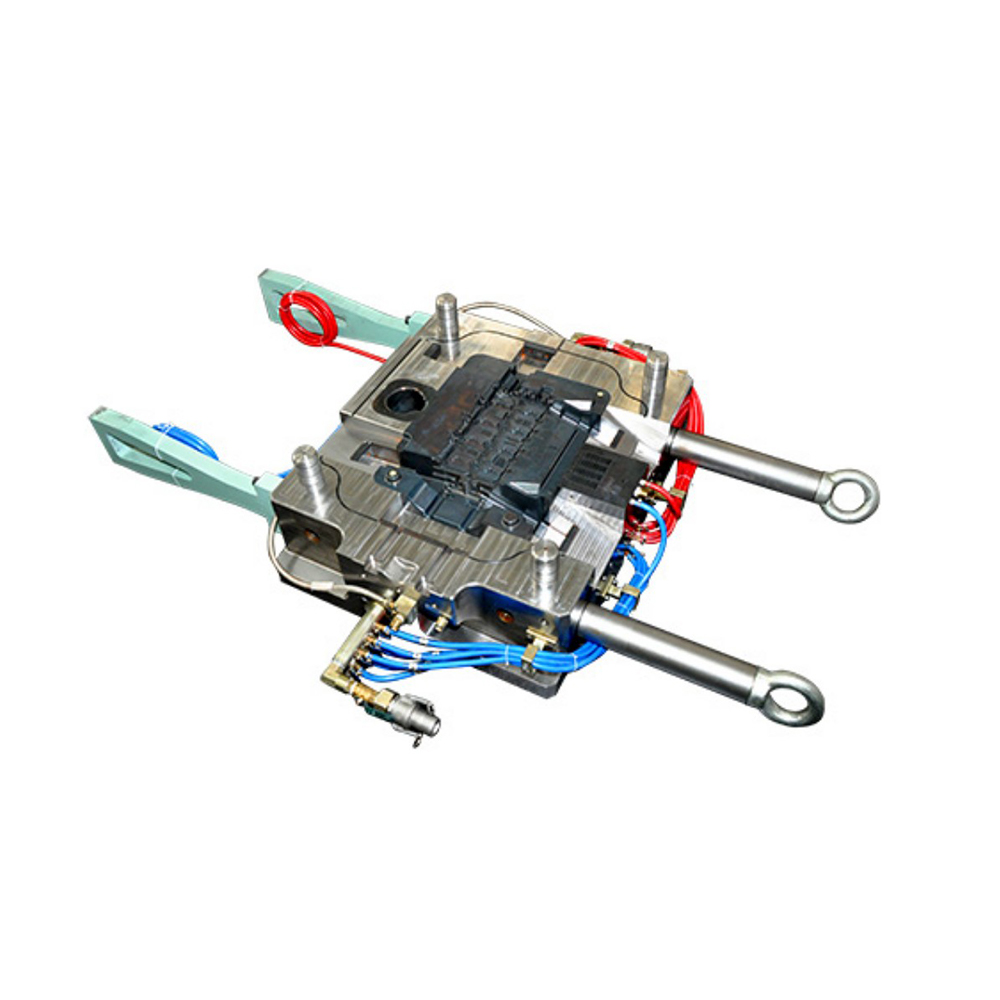

For complex parts with multiple chambers and multiple oil/air passages in general-purpose machinery (such as hydraulic manifolds and motor housings), die-casting molds utilize an "integrated cavity design" to achieve a single-step molding of these complex structures. For example, pre-installed core pulling mechanisms (hydraulic or mechanical) within the mold allow for the molding of parts with deep cavities, blind holes, and cross holes. This reduces the number of traditional multi-part assembly steps, minimizes assembly errors and the risk of water/oil leaks, and improves the overall reliability of the mechanical product.
Ⅲ. Key Technical Features of Die-Casting Dies for General Mechanical Products
1. High-Performance Die Materials and Surface Treatment Technologies
● Core Materials: Cavity inserts are primarily constructed of H13 steel. For applications requiring extremely high performance (such as magnesium alloy die-casting), STAVAX ES stainless steel (for enhanced corrosion resistance) is used. Guide pins and guide sleeves are constructed of SUJ2 bearing steel to ensure guiding accuracy and wear resistance.
● Surface Treatment: Mainly AlCrN coating (high-temperature resistance exceeding 800°C, reducing metal sticking) and TD thermal diffusion treatment (forming a VC hard layer with a hardness of HV2800) are used to address the challenges of "sticking" and "erosion" in aluminum alloy die-casting, extending mold maintenance cycles.
2. In-depth Application of Digital Design and Simulation Technologies
● Design Phase: Utilizing integrated CAD/CAM design (such as SolidWorks and UG), we enable linked modification of the mold 3D model and part drawings to avoid design errors. CAE simulation software (such as AnyCasting and MAGMAsoft) is also used to simulate the molten metal filling and solidification processes, predicting defects such as shrinkage cavities, air holes, and cold shuts. This allows for optimization of gate location, overflow tank size, and cooling water channel layout, increasing mold trial pass rates to over 90% and reducing trial costs.
3. Precision Manufacturing and Intelligent Inspection Technologies
● Manufacturing Process: The mold cavity utilizes a five-axis machining center (positioning accuracy ±0.005mm) to achieve complex curved surface molding. EDM mirror discharge (surface roughness Ra 0.8μm) enhances cavity finish. Moving parts such as ejectors and core pullers are precision-ground using a grinder to ensure clearances of ≤0.01mm.
● Inspection Technology: A three-dimensional coordinate measuring machine (such as the Hexagon GLOBAL series) is used to perform full-scale inspections of key areas such as the mold cavity and guide pin holes. Industrial CT scanning is also used to detect internal defects (such as cracks and looseness) to ensure mold precision and reliability.
4. Intelligent Cooling and Temperature Control Technology
● To meet the heat dissipation requirements of different areas of general-purpose mechanical parts, the mold utilizes a "zoned water channel design": dense cooling water channels are located in thick areas of the casting, while special-shaped channels (such as spiral and wavy) are used in thin areas. A temperature control system (with a water temperature control accuracy of ±1°C) regulates the water channel temperature to achieve uniform cooling of the casting, minimize deformation caused by temperature differences (deformation can be controlled within 0.1mm/m), and ensure part dimensional stability.
