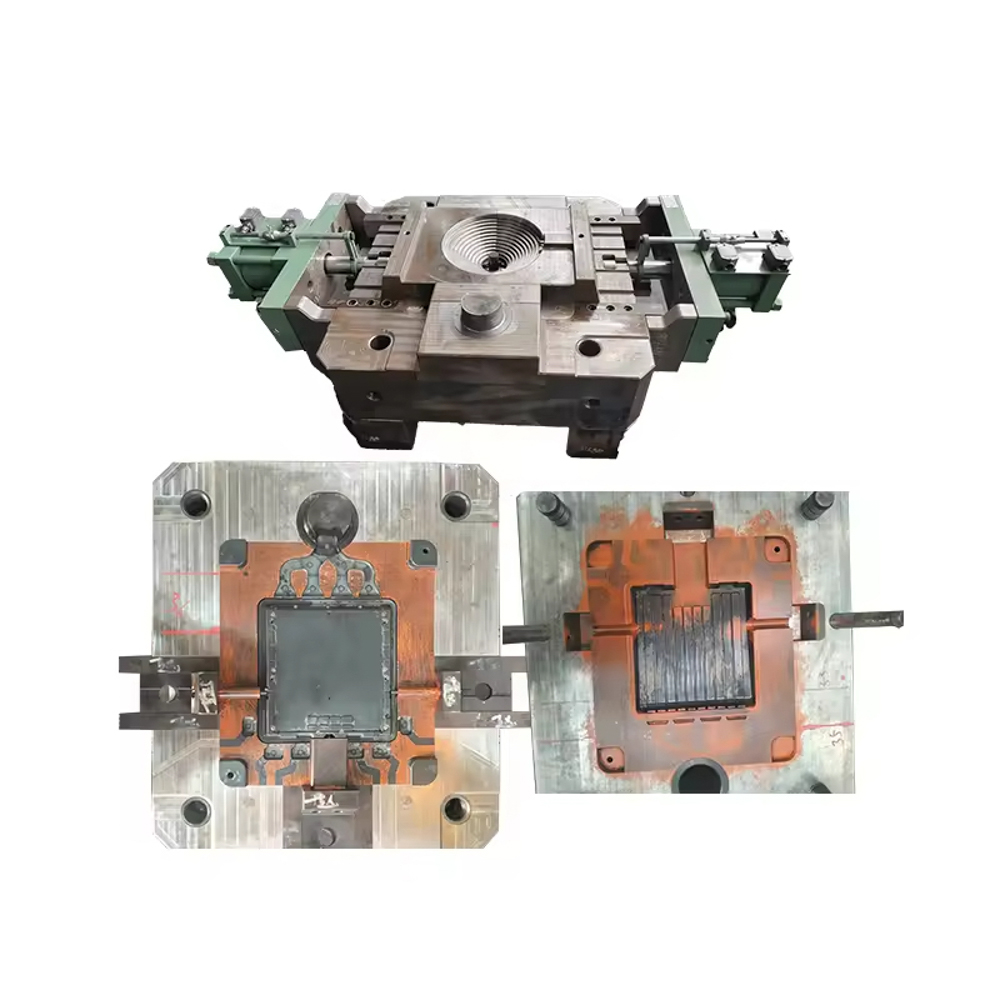

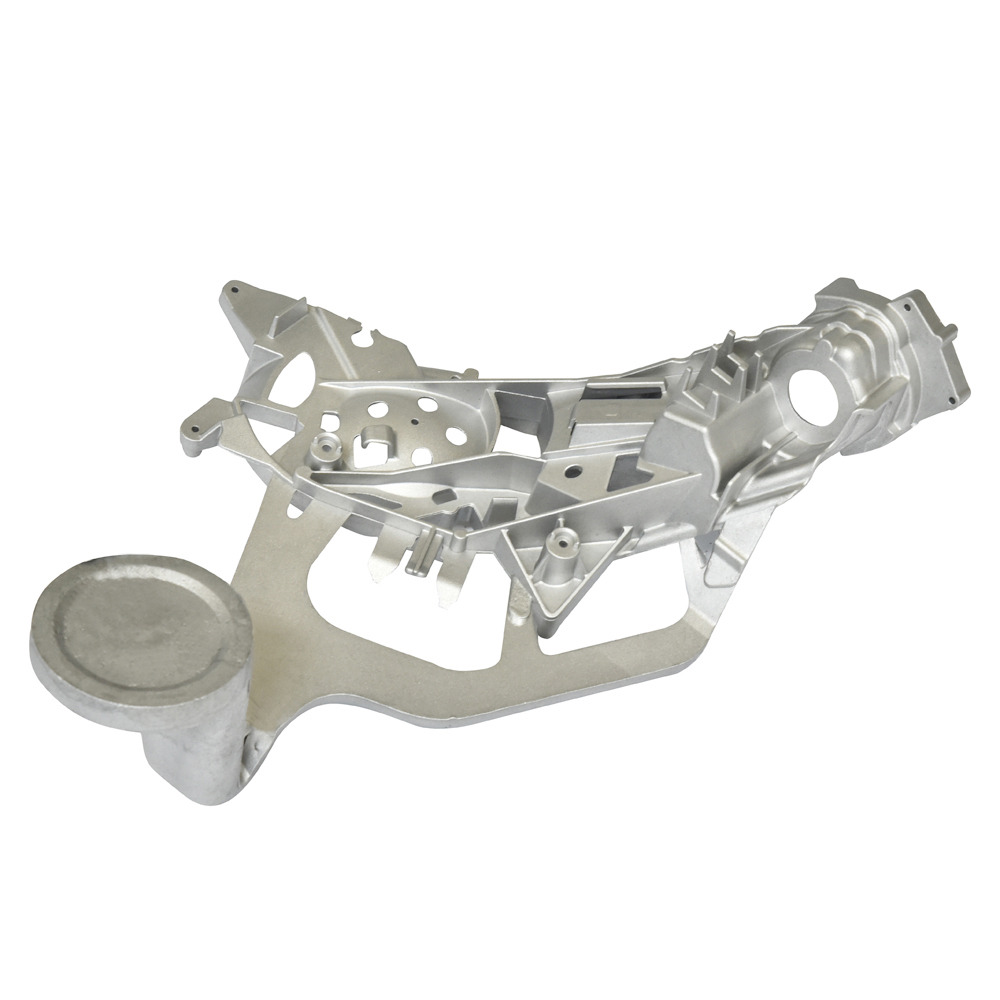

Against the backdrop of rapid technological advancements in 5G communications, core components such as base station equipment, filters, and connectors face stringent manufacturing requirements for lightweighting, high precision, and high-frequency signal stability. Die-casting molds, with their unique technical characteristics, have become a key enabler for the precision manufacturing of communications equipment. The following analysis focuses on advantages, features, and technical characteristics.

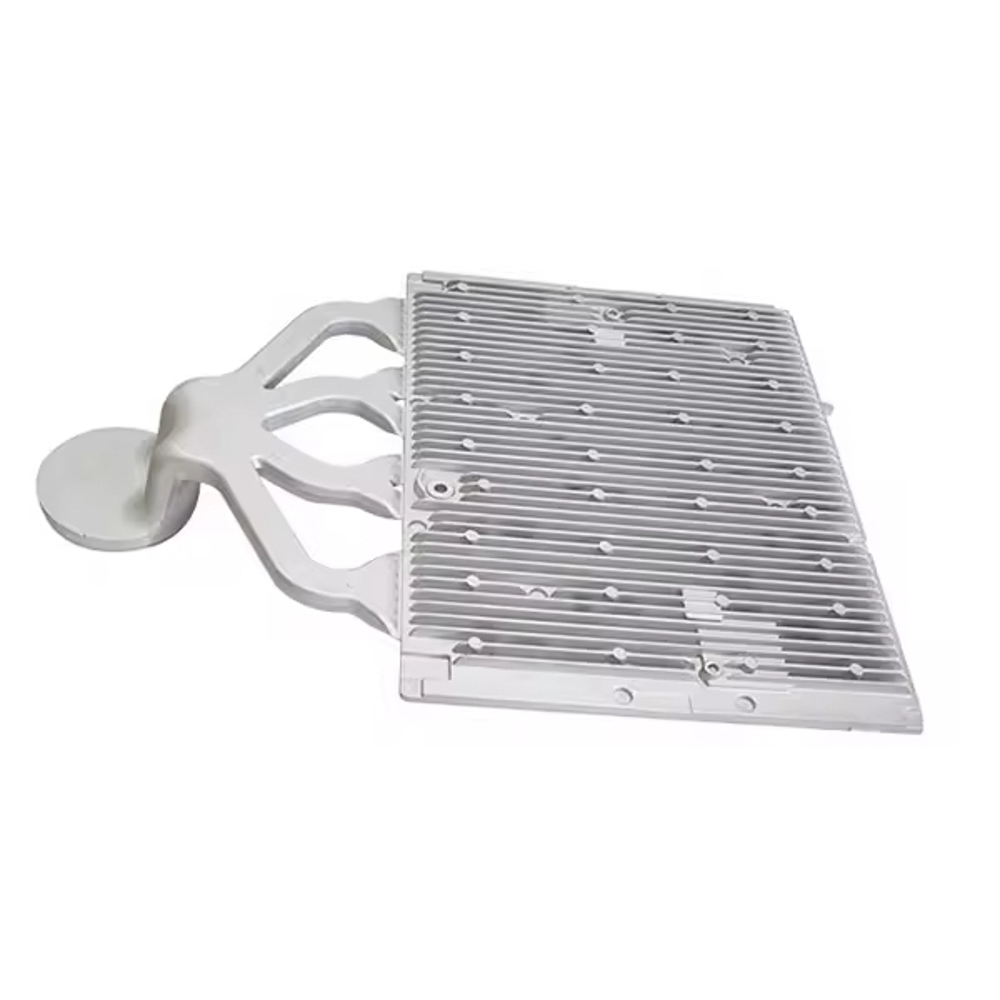

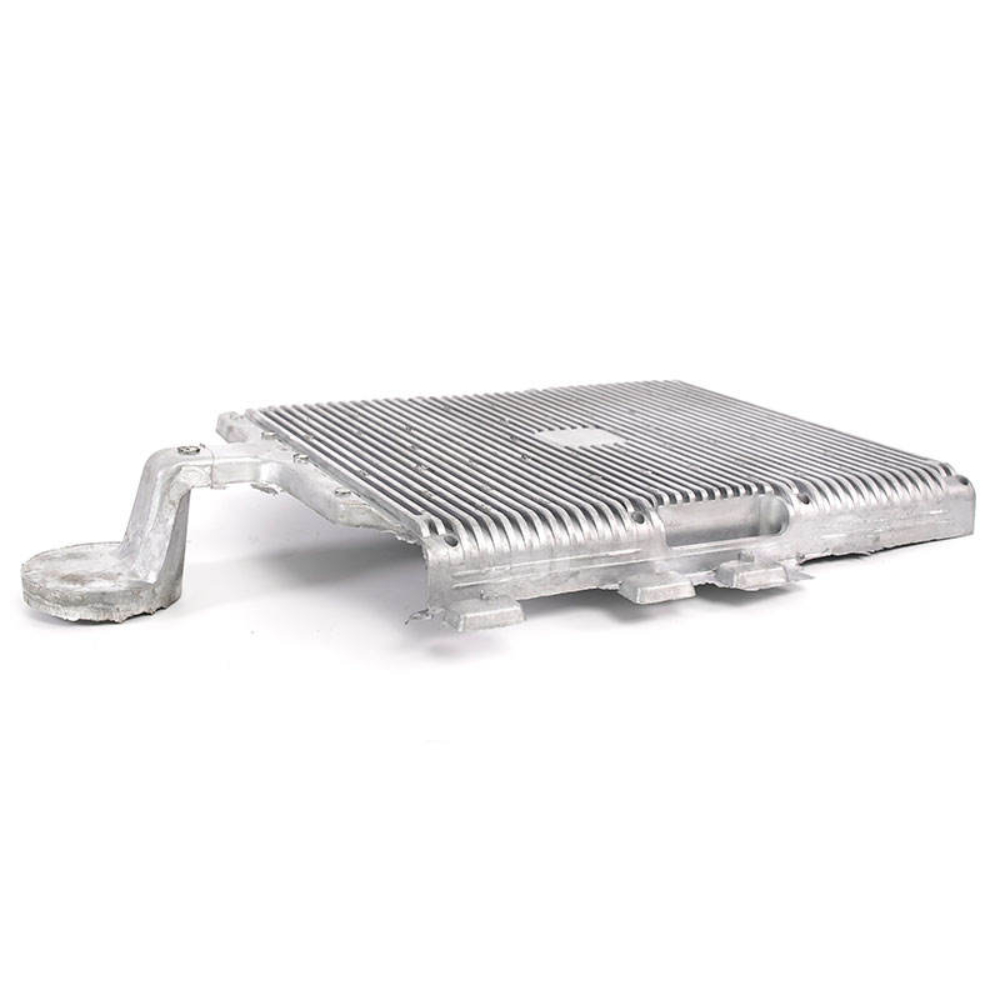

The core advantage of die-casting molds for the communications industry stems from their precise matching with the performance requirements of communications equipment. In terms of material selection, aluminum alloys such as ALSI12, with their low density of 2.7g/cm³, achieve a weight reduction of over 30% for base station components. Furthermore, their excellent thermal conductivity (110-150W/(m・K)) effectively addresses the heat dissipation challenges associated with the high-density integration of 5G equipment. These material properties perfectly align with the core requirements of "lightweight + heat dissipation" for communications equipment.
The breakthrough in production efficiency is also significant. Traditional machining processes require over 20 steps to produce filter cavities, but die-casting allows for integrated molding. In the Huawei 900M duplex filter case, optimized flow channel design and process parameters enabled mass production with a 100% yield rate on an 800-ton die-casting machine. This reduced energy consumption by 40% compared to competing 2,000-ton equipment, while also shortening production cycles by 60%. This efficiency improvement stems not only from process simplification but also from mold design that maximizes the equipment's potential.
Cost control advantages are reflected throughout the entire lifecycle. Integrated die-casting technology seamlessly molds the cavity and components, eliminating the 40% assembly error associated with traditional screw connections and reducing RF signal transmission loss by over 15%. Material utilization is increased from 30%-40% with traditional machining to over 85%, reducing metal waste and eliminating numerous finishing steps before electroplating, resulting in a 20%-30% reduction in overall costs.

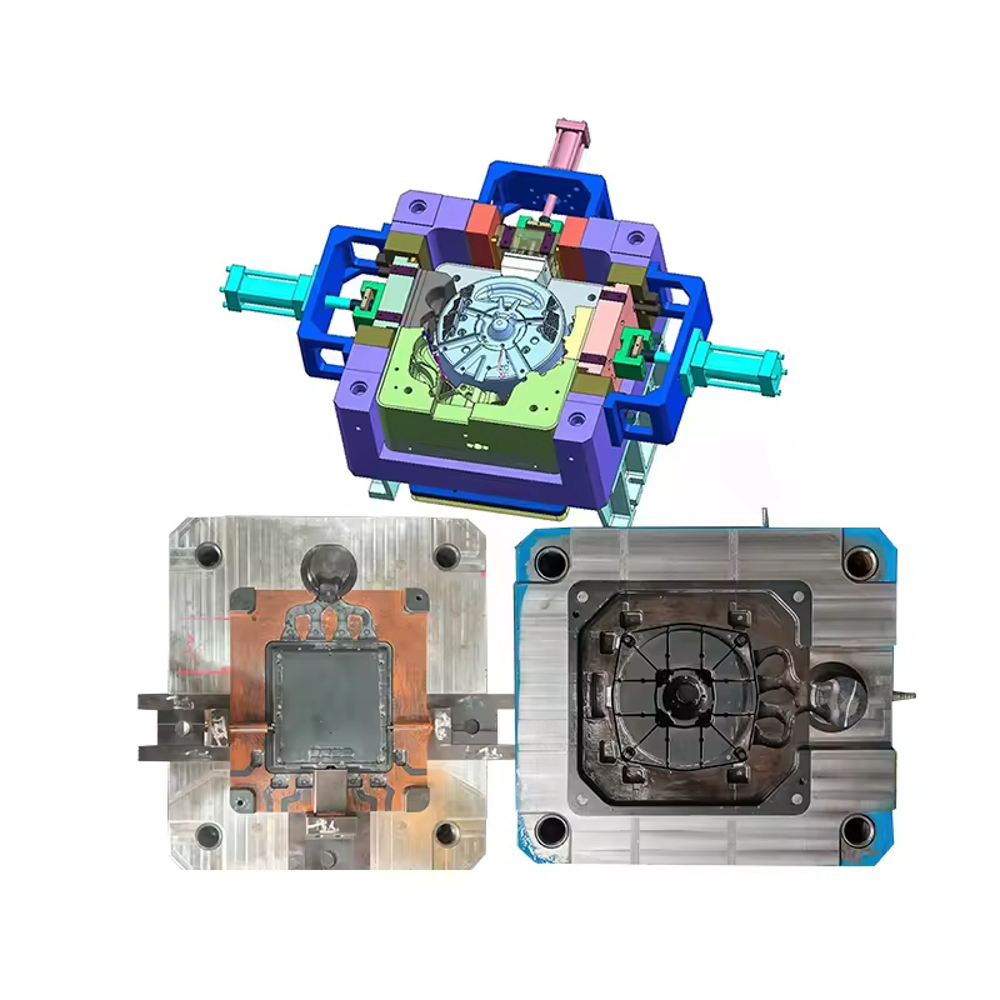

Communications die-casting molds have developed a distinctive characteristic, grounded in standards and driven by innovation. Industry standards such as JB/T15415-202X impose stringent requirements on 5G base station filter cavity molds, such as a surface roughness of Ra ≤ 0.4μm on the molding surface and a minimum wedging height of 2/3 between the core-pulling slider and the wedge block, ensuring mold precision meets the requirements of high-frequency signal transmission. The vacuum system design requires the use of Ø8-10mm sealing strips on the vacuum cavity surface, combined with flat, wide slit-type venting grooves (with a total area equivalent to 1/2 of the inner gate) to control residual gas in the cavity to less than 3%, effectively preventing the impact of air holes on signal stability.

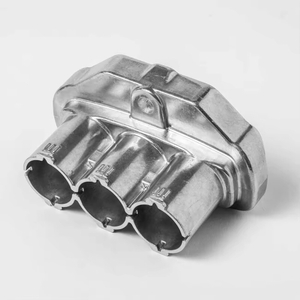

To address the structural complexity of communications products, mold design has developed a number of innovative technologies. The chilled exhaust design employed in Huawei's case utilizes the temperature-dependent fluidity of aluminum alloys. By optimizing the exhaust thickness, smooth exhaust is achieved during high-speed injection, enabling 800-ton equipment to produce complex cavities that traditionally require equipment weighing over 1,250 tons. Integrated die-casting technology seamlessly forms the connector's metal shell and cavity. The mesh groove design around the metal shell increases the bond strength of the non-metallic threaded layer by 50%, maintaining signal transmission performance while reducing weight by 30%.
Environmental protection is a new highlight. By precisely controlling the gate velocity (36 m/s) and shot pressure, combined with a trapezoidal taper flow channel design, material utilization during the die-casting process is significantly improved, reducing waste. The mold cooling system utilizes a centralized converging design, combined with high-pressure spot cooling technology, to increase cooling water circulation efficiency by 40%, reducing energy losses during production. These designs enable the communications die-casting mold to meet high-precision requirements while achieving green manufacturing goals.
The technical characteristics of the communications die-casting mold are reflected in the precision control system throughout the entire process. In terms of materials and heat treatment, the mold cavity is constructed from alloy steel with a hardness of 47-50 HRC. After vacuum quenching and nitriding, a 5-10μm hardened layer forms on the surface, ensuring a service life of over 300,000 cycles. A 0.5mm radius at the core root prevents cracking caused by stress concentration. The core for molding text and symbols features a 10°-15° draft angle, with a line width 1.5 times the protrusion height, ensuring the complete molding of delicate structures such as base station logos.
Cooling and temperature control technologies enable precise control. The mold utilizes a contoured cooling system with a circular water path and baffles to control cavity surface temperature fluctuations to within ±2°C, preventing part deformation caused by uneven temperatures. High-pressure spot cooling technology is used in the thick-walled area near the feed port, using 8-10mm diameter copper tubes for targeted cooling, improving local cooling efficiency by 30%. This temperature control capability is crucial for ensuring the dimensional stability of aluminum alloy parts, enabling uninjected tolerances to achieve CT5-CT6 levels of accuracy.
Digitalization and simulation technologies are deeply integrated. Modern communications die-casting molds are designed using CAD/CAE simulation optimization throughout the entire process. Flow field simulation determines the 8° guide groove angle of the fan-shaped gate, keeping the molten metal filling time under 0.3 seconds and reducing oxide inclusions. 3D modeling technology ensures positioning accuracy of the mold guide device to the 0.01mm level. Combined with precise clearance control of the push rod hole (0.02mm for ≤φ8), this enables deformation-free ejection of complex cavities.
From 5G base stations to RF devices, die-casting molds have become the "invisible infrastructure" of communications technology upgrades. Through the deep integration of materials science, structural design, and intelligent control, they not only overcome bottlenecks in traditional manufacturing processes but also define the performance boundaries of communications equipment. As 6G technology research and development advances, communication die-casting molds will develop towards smaller tolerances (±0.005mm), higher integration (multi-cavity integration) and better electromagnetic compatibility, and continue to provide core support for the upgrading of the communications industry.
