Ⅰ. Core Advantages of Die-Casting Molds for Home Appliances
Home appliances (such as washing machines, air conditioners, refrigerators, and small appliances) place extremely high demands on parts production volume, stability, and cost control. Die-casting molds are precisely tailored to these requirements, with four key advantages:
1. Efficient Support for Mass Production of Home Appliances
Die-casting achieves molding by rapidly filling the mold cavity with molten metal under high pressure. Single-mold cycle times can be as short as 30-90 seconds (e.g., air conditioner compressor end covers), with daily production capacity reaching thousands of parts, fully meeting the "million-level" annual production pace of the home appliance industry. This efficiency is 5-8 times higher than traditional casting, significantly shortening delivery cycles.
2. High Precision Reduces Subsequent Processing Costs

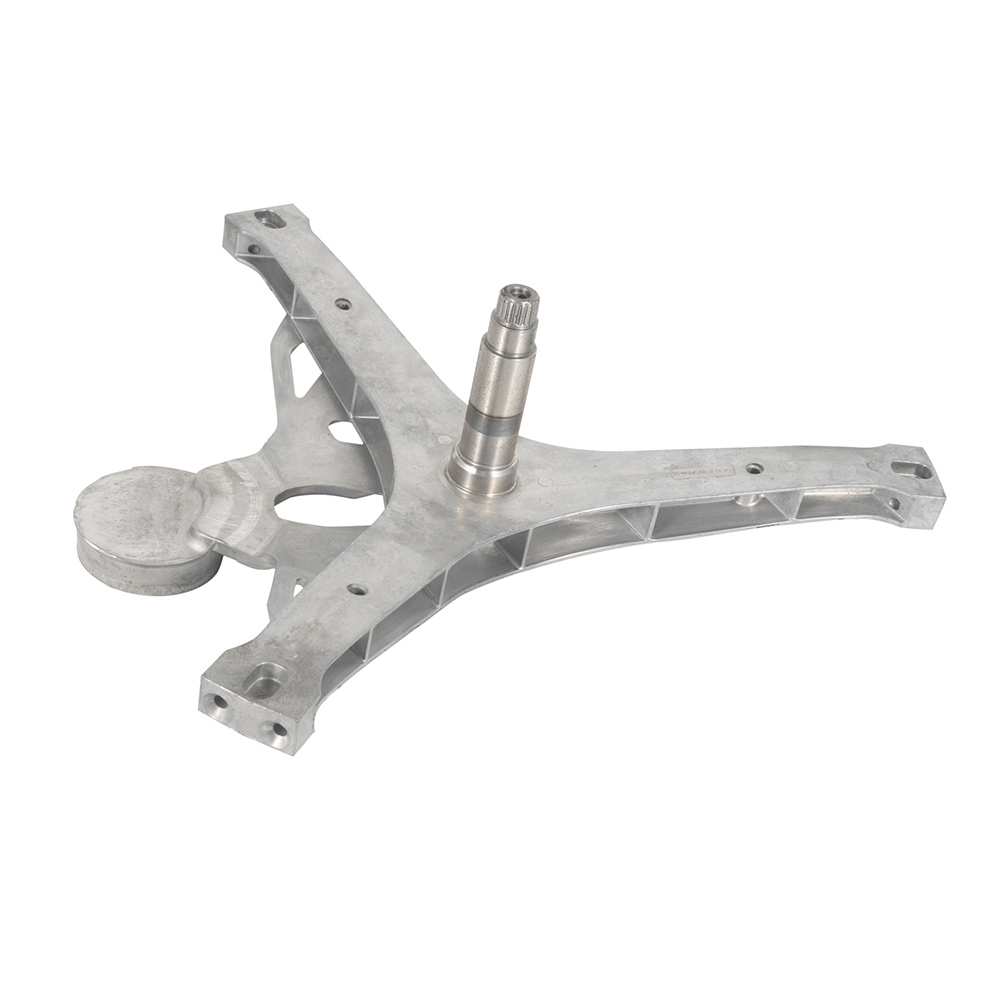

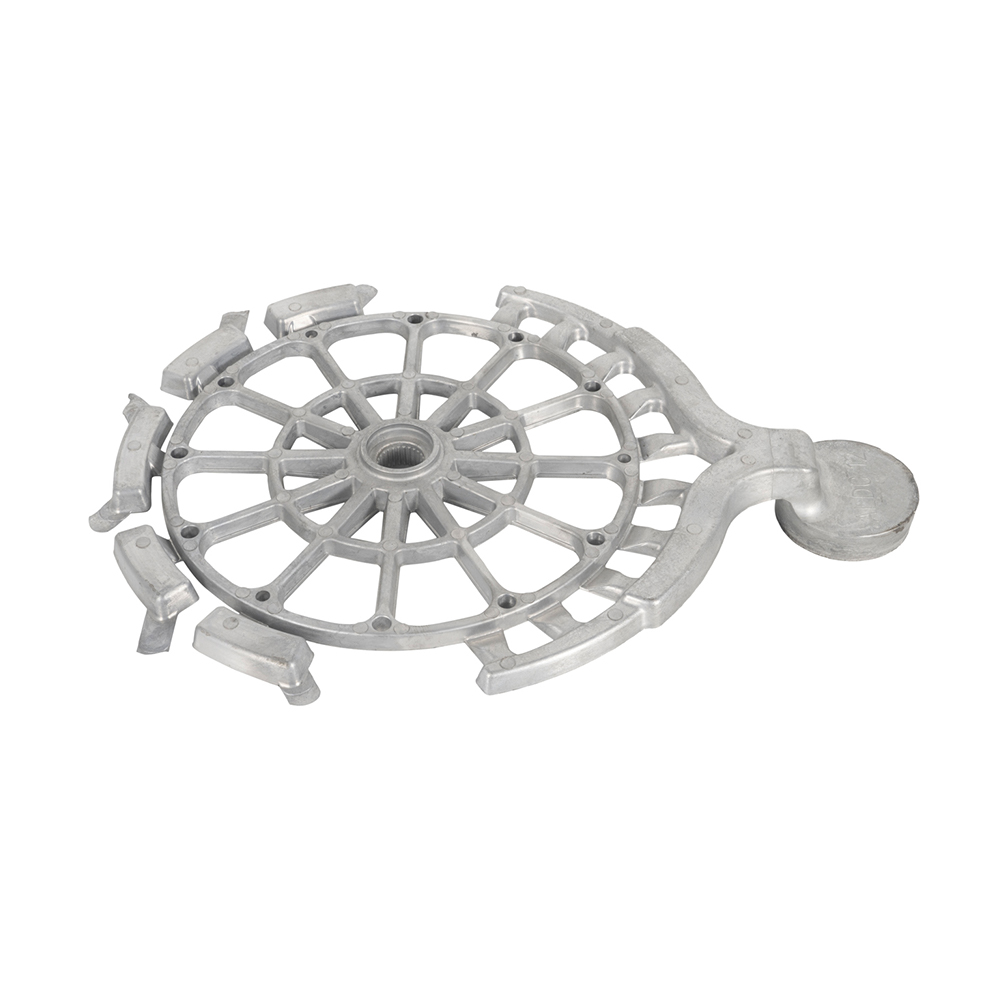

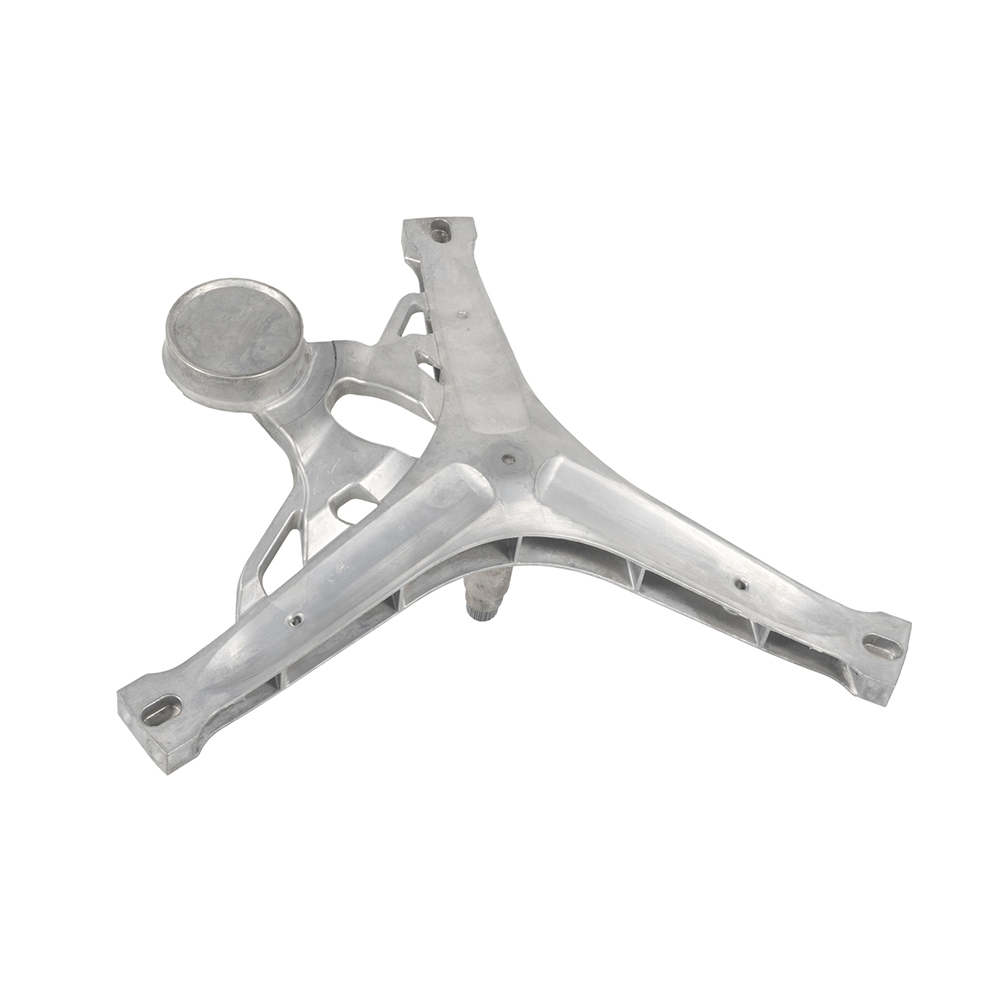

The mold cavity is precision-machined using CNC, achieving part dimensional tolerances within ±0.05mm (e.g., washing machine drum flanges) and surface roughness Ra ≤ 1.6μm. Direct assembly eliminates the need for additional milling, grinding, or other processing steps, reducing processing costs by over 30% while also avoiding dimensional deviations caused by secondary processing.
3. High Material Utilization and Environmentally Friendly
Die casting is a near-net-shape process, with material loss between the blank and finished part being only 5%-8% (compared to approximately 15%-20% in traditional casting). Excess material (such as sprues and flash) can be 100% recycled and remelted, aligning with the "green manufacturing" trend in the home appliance industry (e.g., the low-carbon production requirements of companies like Midea and Gree).
4. Long lifespan ensures stable production

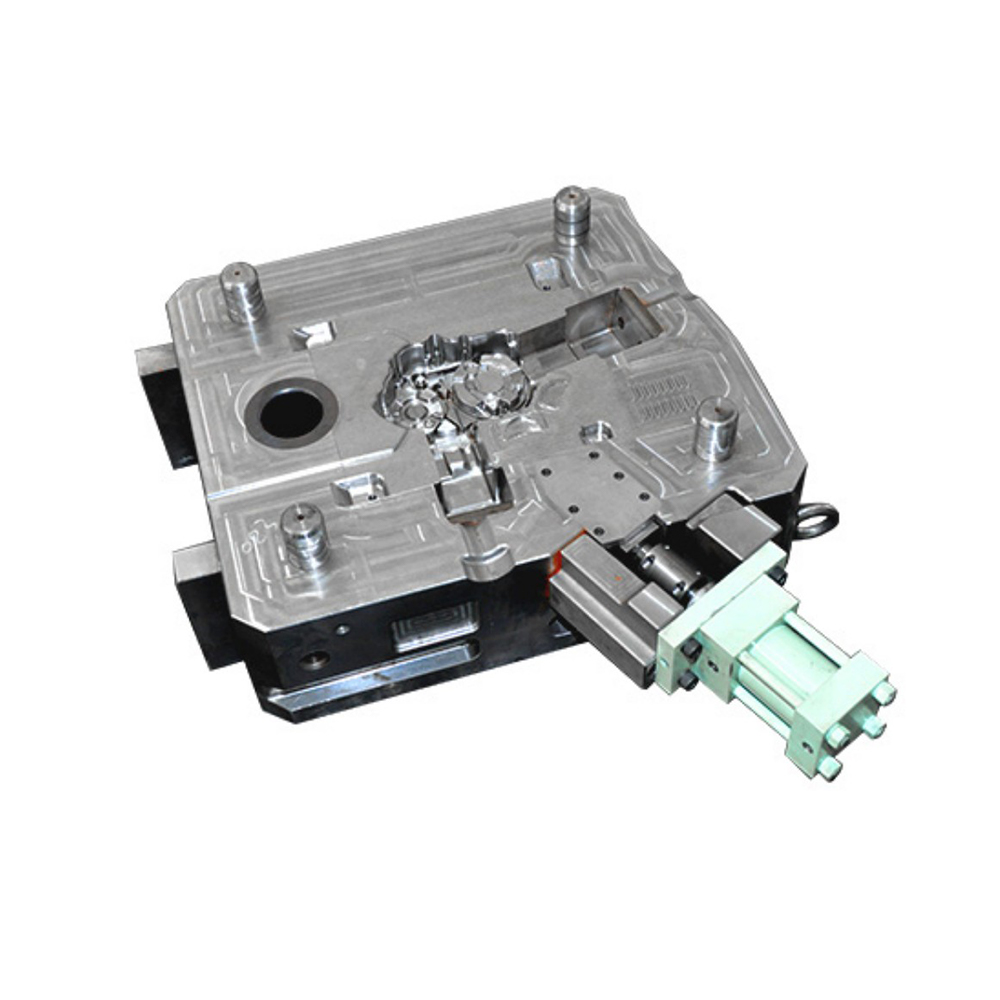

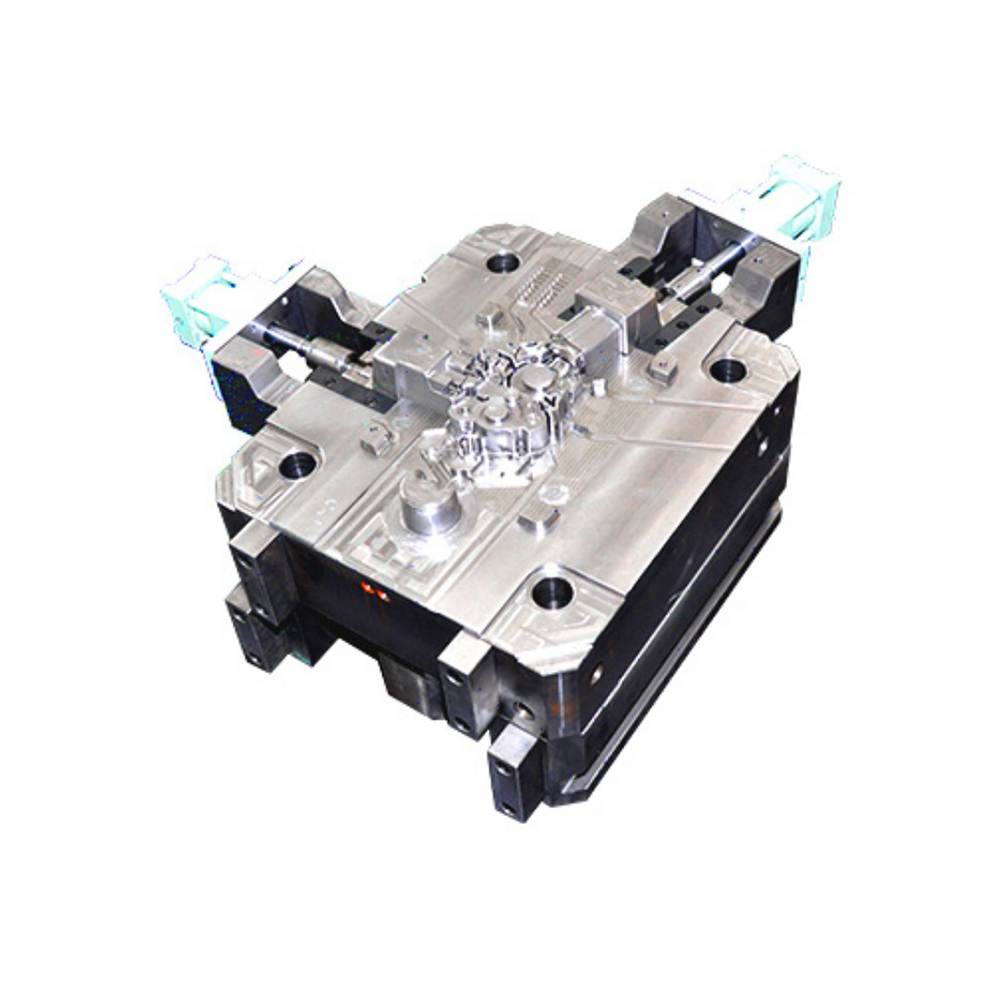

Molds are made of hot-work die steels such as H13 and SKD61, with surface nitriding and PVD coating. They offer a service life of 500,000 to 1,000,000 cycles (e.g., zinc alloy small appliance handle molds). Part dimensional consistency in mass production is ≤0.02mm, and scrap rates are kept below 1%, eliminating production interruptions caused by frequent mold changes.
Ⅱ. Differentiated Features of Home Appliance Die-Casting Molds
Different from automotive and industrial die-casting molds, home appliance molds focus more on "appearance, functionality, and lightweighting," resulting in three key features:
1. Multi-material compatibility to meet the lightweighting needs of home appliances
Compatible with aluminum alloys (e.g., air conditioner outdoor unit brackets, with a density of only 2.7g/cm³, 40% lighter than steel), zinc alloys (e.g., rice cooker buttons, with a strength of 280MPa and easy molding of complex patterns), and magnesium alloys (e.g., laptop bottom cases, with high specific strength and excellent heat dissipation). Flexible material selection based on the load-bearing, heat dissipation, and cost requirements of home appliance parts helps reduce weight and energy consumption.
2. Integrated Forming of Appearance and Function
The mold cavity can be pre-programmed with pre-set textures (e.g., brushed, leather, or high-gloss finishes). After molding, the part directly meets the desired appearance requirements of the home appliance (e.g., refrigerator door trim strips, eliminating the need for spraying or film application). Functional features are also integrated (e.g., ribs and clips on washing machine drums, forming in one step to prevent loosening during assembly). This enhances both the appearance of the home appliance and its reliability.
3. Modular design adapts to diverse home appliance models
To address the "multiple series, small batch" iterations of home appliances (e.g., 2-3 generations of air conditioner models are updated annually), molds adopt a modular structure (e.g., cores and cavities can be quickly replaced). This shortens the mold replacement cycle from the traditional 7-10 days to 2-3 days, significantly reducing mold investment costs for home appliance companies. (For example, the compressor housing mold for the same brand of air conditioner can be adapted to different power models by simply replacing a few modules.)
Ⅲ. Key Technical Features of Home Appliance Die-Casting Molds
Technically, mold performance is enhanced through "digitalization, precision, and intelligence." Core technologies include:
1. Digital Design and Simulation Technology
Using an integrated CAD/CAM/CAE process: 3D mold modeling is first performed using SolidWorks and UG. Then, MAGMAsoft and AnyCasting are used to simulate the molten metal filling and solidification processes, predicting defects such as porosity, cold shuts, and shrinkage. (For example, in the case of an air conditioner condenser bracket mold, simulation optimized the gate position and reduced the porosity from 5% to 0.5%.) This reduces the mold development cycle by 20%-30% and reduces the number of mold trials from 3-5 to 1-2.)
2. Precision Casting and Vacuum Die-Casting Technology
For pressure-bearing parts in household appliances (such as the inner bracket of an electric water heater), a "sequential valve gate" system is used to control the order of molten metal filling and avoid turbulent air entrainment. Combined with vacuum die-casting (vacuum level ≤ 50 mbar), this system increases part density to over 99.5%, meeting the requirements of a water pressure test (no leakage at 1.2 MPa), thereby addressing the "prone to leakage and insufficient strength" of traditional die-cast parts.
3. Intelligent Temperature Control and Online Monitoring System
The mold is equipped with 8-12 zoned temperature control water circuits. A PID thermostat controls mold temperature fluctuations within ±2°C (for example, in the case of an aluminum alloy washing machine inner drum mold, temperature uniformity directly affects part deformation; fluctuations exceeding 5°C can result in excessive assembly clearance). Pressure and temperature sensors are also embedded to monitor mold conditions (such as cavity pressure and mold wear) in real time. Automatic warnings are issued when parameters are abnormal, preventing batch scrap.
4. Automation Integration and Adaptation Technology
The mold design incorporates pre-defined automation interfaces, compatible with robotic part removal, automatic gate cutting, and online dimensional inspection. (For example, with a six-axis robot for small appliance handle molds, production cycle times are reduced from 45 seconds per part to 30 seconds per part.) This enables unmanned production while reducing scratches caused by manual contact (the scratch rate has been reduced from 3% to 0.1%), ensuring the aesthetic quality of appliance parts.
