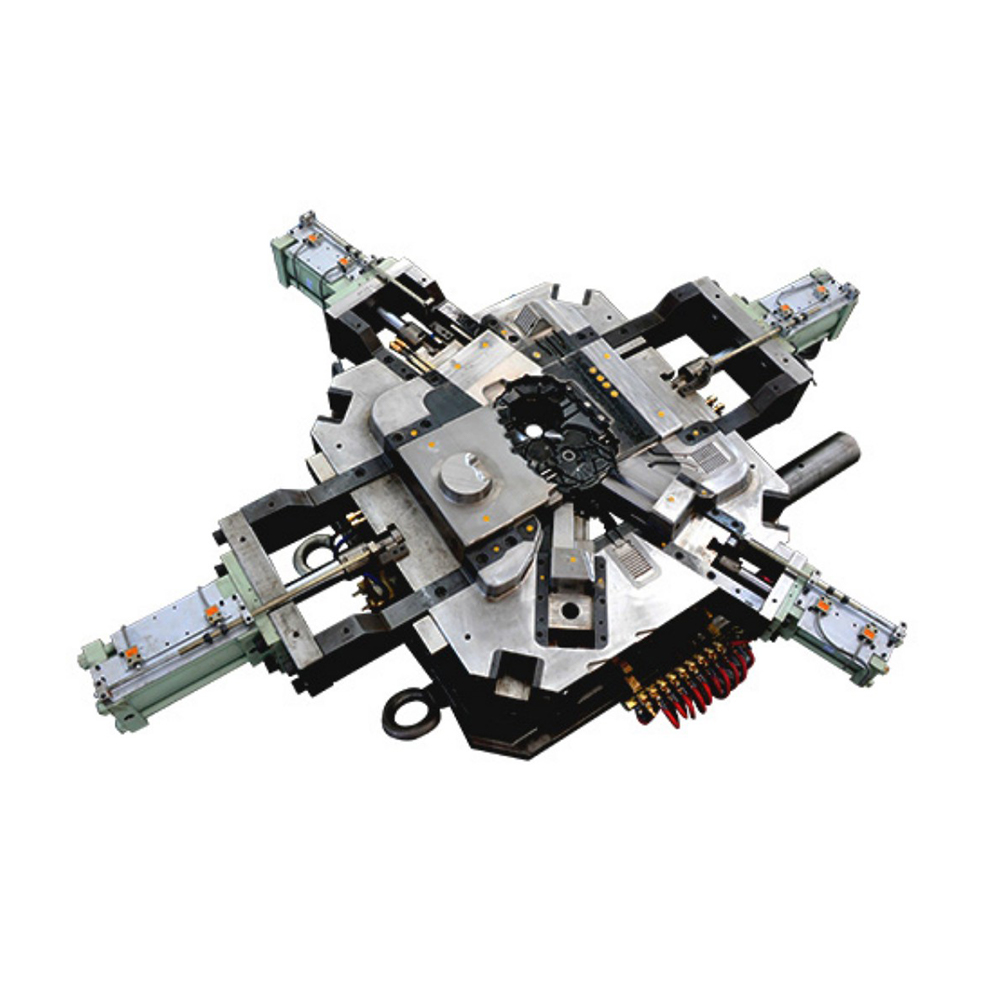

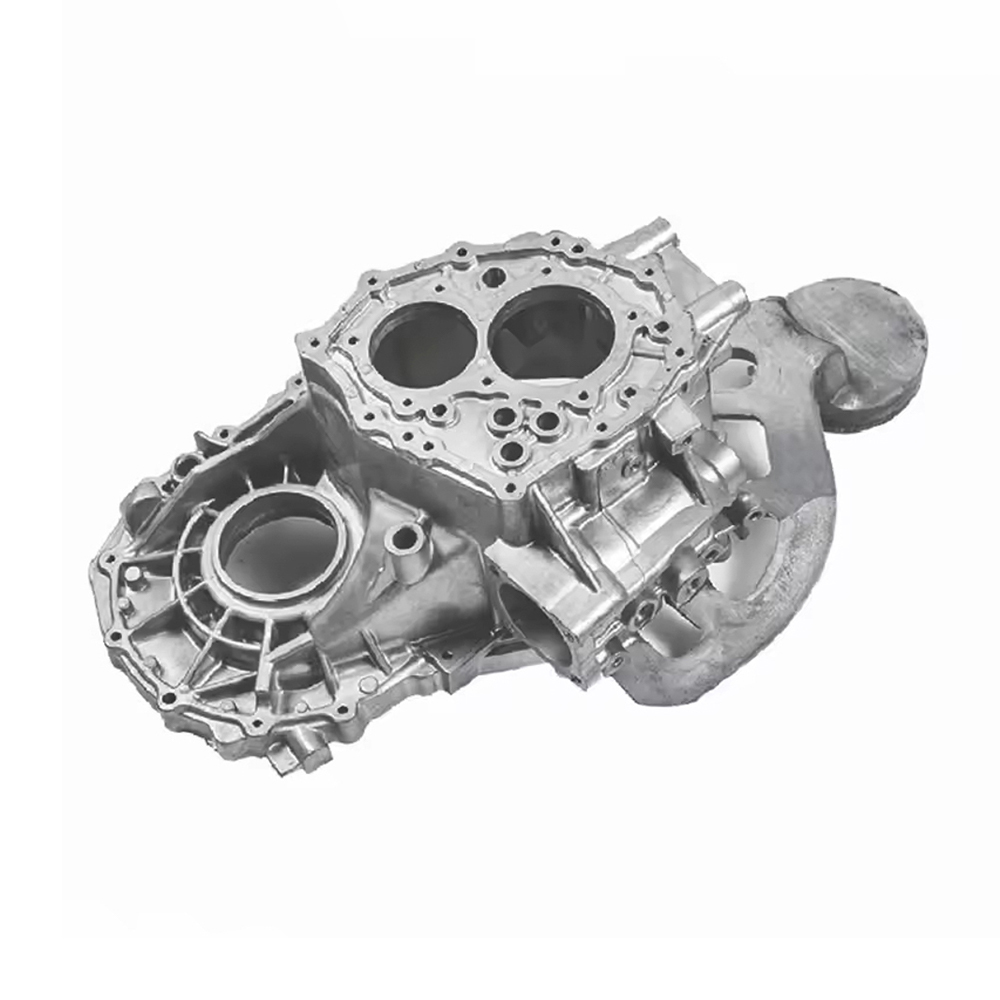

Ⅰ. Core Advantages: Meeting the Core Needs of Automotive Parts Production
1. Efficient Mass Production Capabilities, Lower Unit Costs

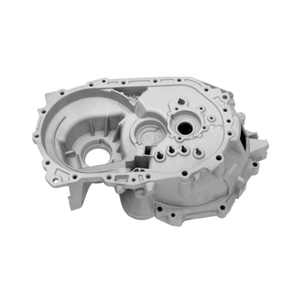

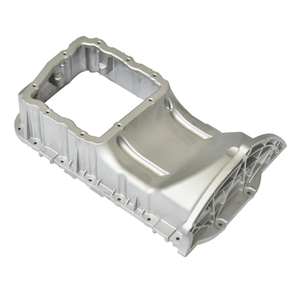

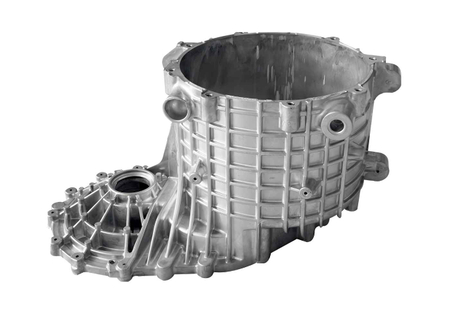

Die-casting molds enable single-shot molding of molten metal (such as aluminum and magnesium alloys), with single-mold production cycles as short as 30 seconds (e.g., for small sensor housings). Compared to traditional forging and machining processes, this increases production efficiency by 3-5 times. For high-volume parts such as engine blocks and transmission housings, one mold set can produce 100,000 to 500,000 parts annually. Large-scale production can reduce unit mold costs by 20%-30%.
2. Compatibility with lightweight materials, aligning with the trend of automotive weight reduction.

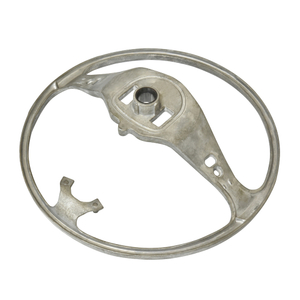

It is perfectly compatible with lightweight materials such as aluminum alloy (which accounts for over 80% of automotive die-castings) and magnesium alloy. The density of the castings is only 1/3-1/2 that of cast iron, helping to reduce vehicle weight by 10%-15% (for example, one automaker used die-cast aluminum alloy door frames, reducing the weight of each door by 2.3kg). Furthermore, the material utilization rate exceeds 95%, far exceeding forging (70%-80%), reducing scrap recycling costs.
3. High Precision and Consistency, Meeting Automotive Assembly Requirements
The mold cavity undergoes high-precision machining (tolerance ±0.01mm), achieving casting dimensional tolerances of CT5-CT7 (according to ISO 8062 standards) and a surface roughness of Ra ≤ 1.6μm, enabling direct assembly without extensive secondary machining. Dimensional fluctuations within the same batch of castings are ≤ 0.1mm, preventing assembly issues such as noise and seal failure caused by part deviations (e.g., brake valve body die-castings).
Ⅱ. Distinctive Features: Differentiated Value from Ordinary Molds
1. Modular Design, Suitable for Multi-Variety Part Production

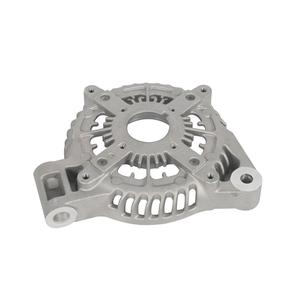

Targeting the "platform + multi-model" characteristics of automotive parts, the mold utilizes a modular cavity structure. By replacing the core cavity module (rather than the entire mold), parts can be switched between different models on the same platform. (For example, one automaker reduced mold changeover time from 8 hours to 1.5 hours for the same series of motor end covers for SUVs and sedans from 8 hours, increasing mold reuse by over 40%.)
2. Integrated Molding Capabilities, Simplifying Part Structures

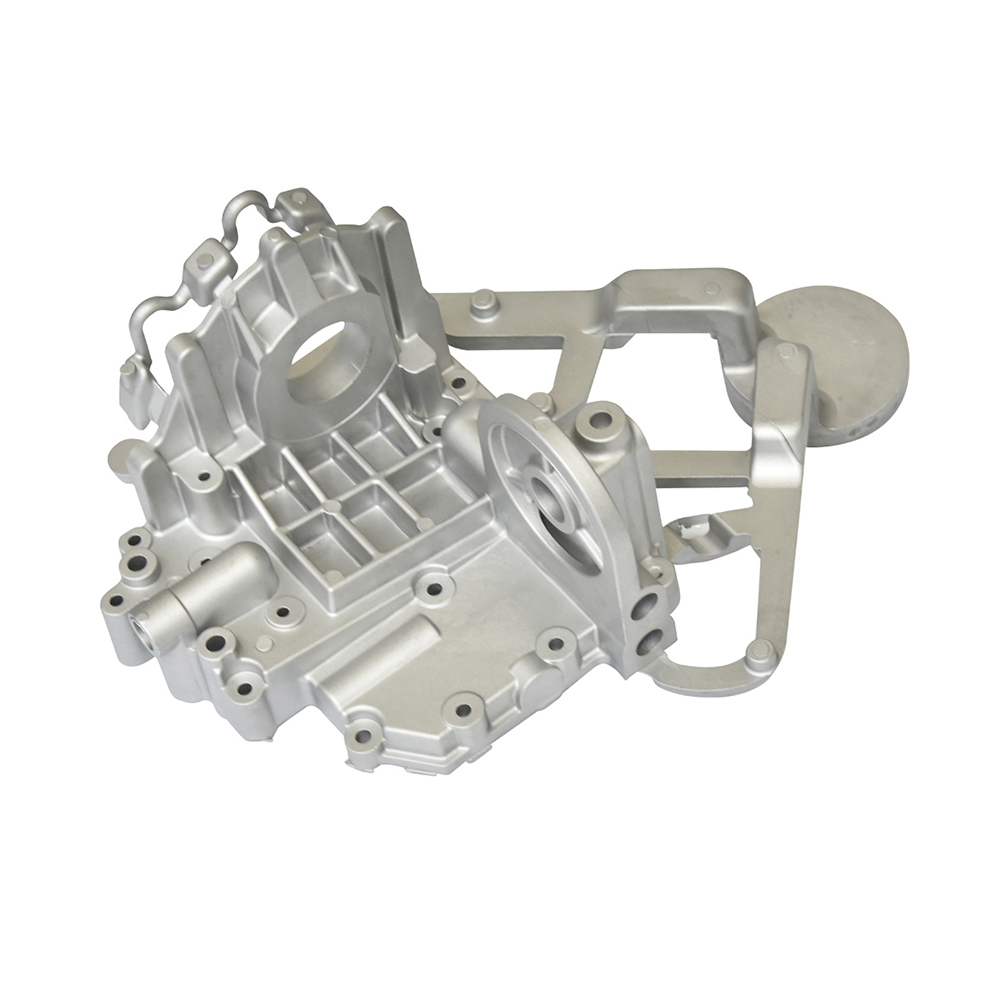

Complex structures can be die-cast in one go, reducing assembly steps. For example, the Tesla 4680 battery pack housing utilizes an ultra-large integrated die-casting mold (over 5 meters in size) to consolidate over 70 stamped parts into a single casting, eliminating over 300 weld points. This not only improves structural strength (torsional rigidity increased by 20%) but also shortens production line length by 60%.
3. High-pressure resistance and long life, suitable for automotive production intensity
The mold cavity is constructed of H13 hot-work die steel (vacuum hardened and tempered to a hardness of HRC 44-48), capable of withstanding molten metal filling pressures of 100-150 MPa (far exceeding the 5-15 MPa of ordinary plastic molds). With proper maintenance, a mold set can last up to 500,000 to 1,000,000 cycles (e.g., for aluminum alloy wheel die-casting molds), which is 2-3 times the lifespan of ordinary stamping molds.
Ⅲ. Key Technical Features: Core Technology System Supporting Performance
1. CAE Simulation-Driven Mold Design Technology
Using simulation software such as FLOW-3D and AnyCasting, we simulate the molten metal filling and solidification processes in advance:

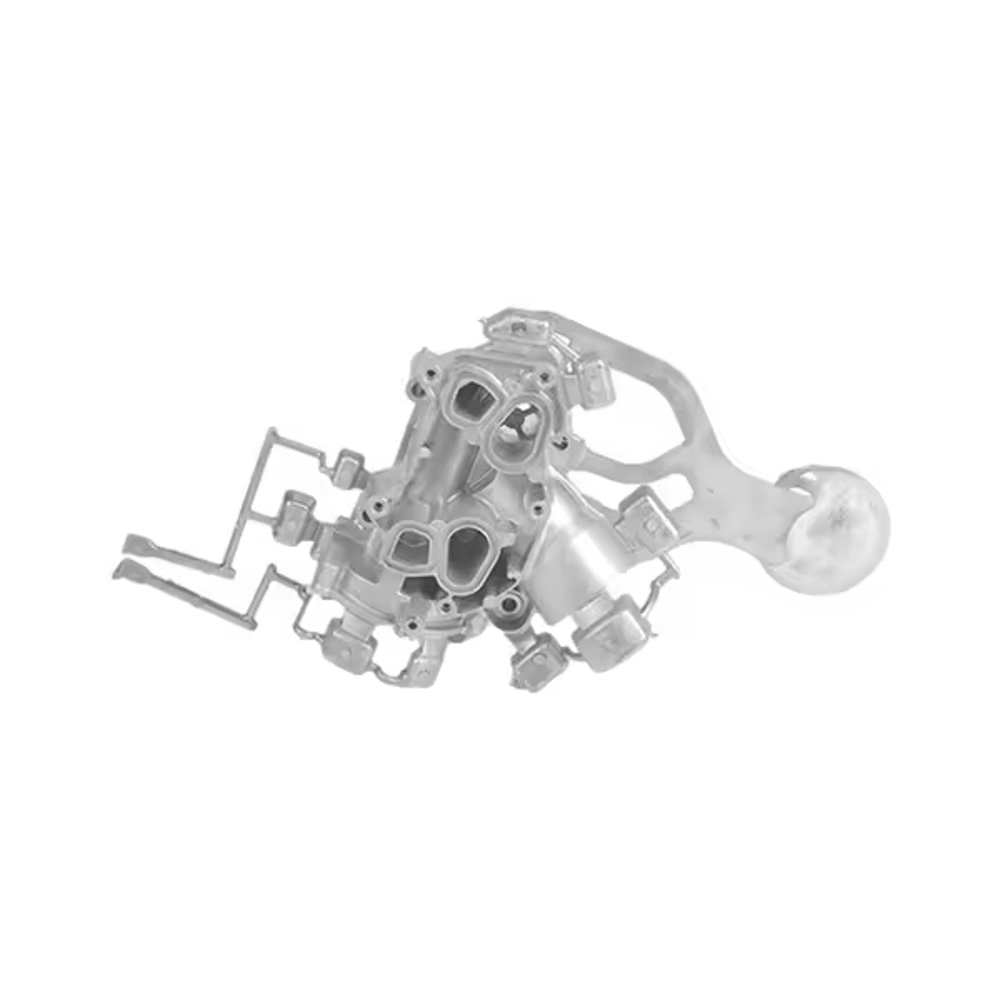

● Optimizing gate location and runner cross-section (e.g., using fan-shaped gates to reduce molten metal impact) to control casting porosity and shrinkage defects to below 0.5%;

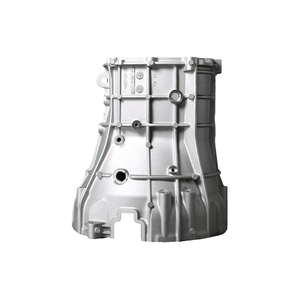

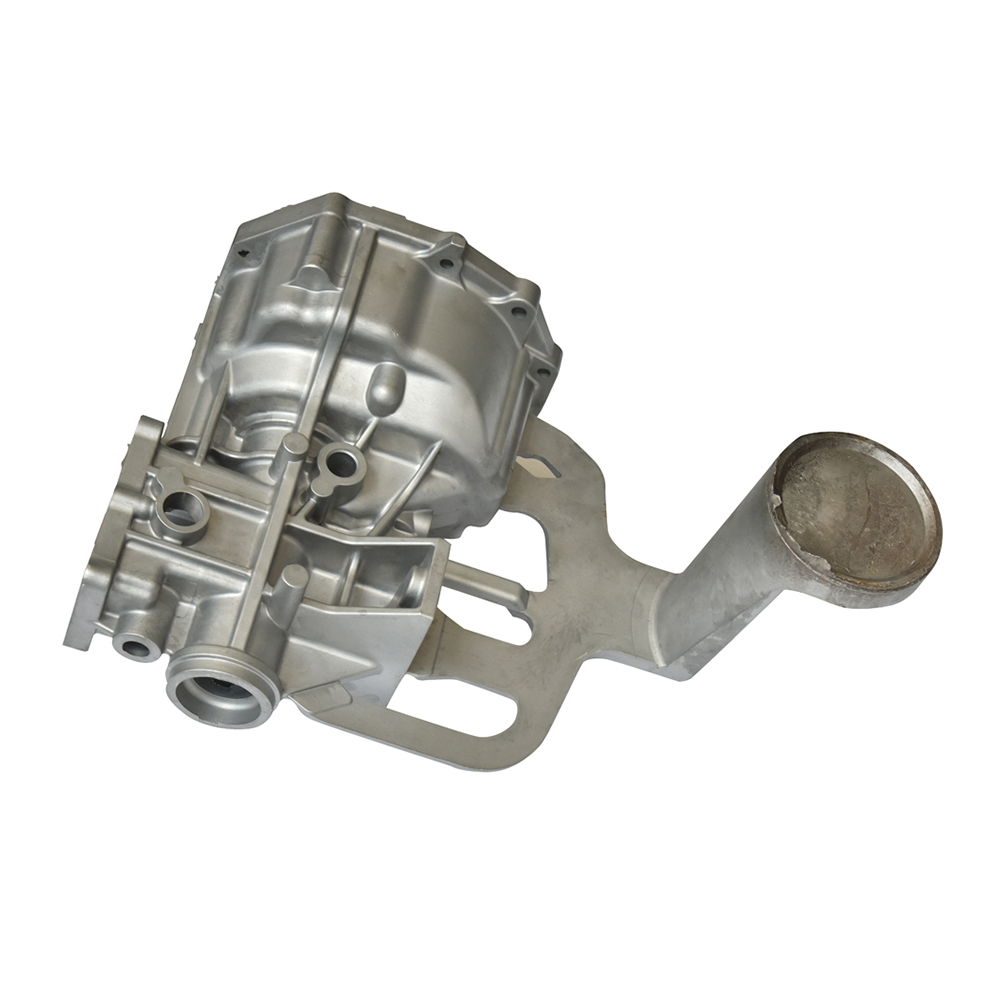

● Simulating mold temperature distribution and designing conformal cooling channels (with an error of ≤0.5mm) to minimize casting deformation caused by temperature differences (e.g., reducing gearbox housing deformation from 0.3mm to 0.1mm).
2. High-Precision Mold Manufacturing and Surface Treatment Technology
● Cavity Machining: Utilizes a five-axis machining center (positioning accuracy ±0.005mm) and EDM (surface roughness Ra ≤ 0.8μm) to ensure precision molding of complex structures (such as engine block water jackets and oil passages).
● Surface Enhancement: PVD coating (such as AlCrN coating, hardness HV 3000+) or nitrocarburizing treatment is applied to the cavity surface to enhance wear resistance and anti-sticking properties, extending mold life by 30%-50% (particularly suitable for high-silicon aluminum alloys).
3. Intelligent Process Monitoring Technology

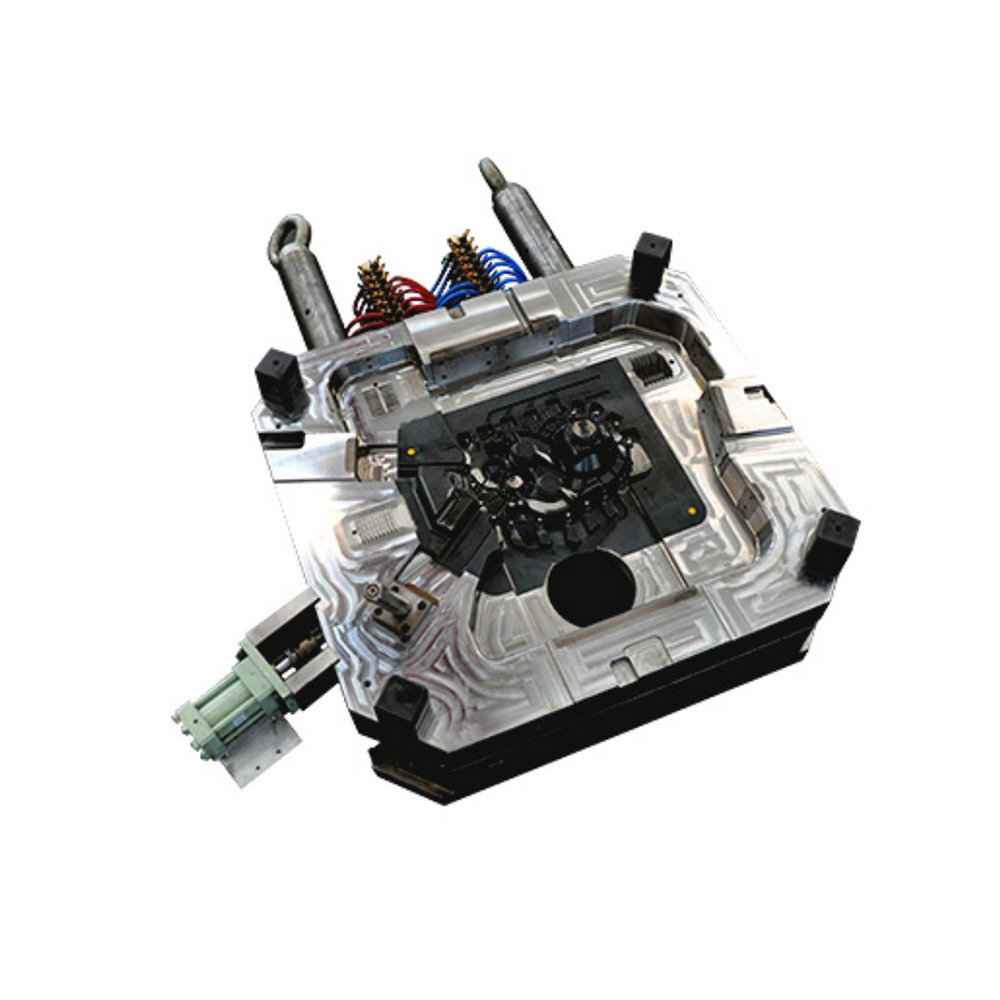

Molds integrate multi-dimensional sensors:
● Temperature sensor (real-time monitoring of cavity temperature, controlled within a ±5°C fluctuation range);
● Pressure sensor (monitors molten metal filling pressure to avoid defects caused by under- or over-pressure);
● Displacement sensor (monitors mold clearance to prevent excessive flash due to wear);
Data is transmitted to the MES system in real time, providing automatic alarms for abnormalities and maintaining a casting qualification rate of over 99%.
4. Large-scale and thin-wall molding technology

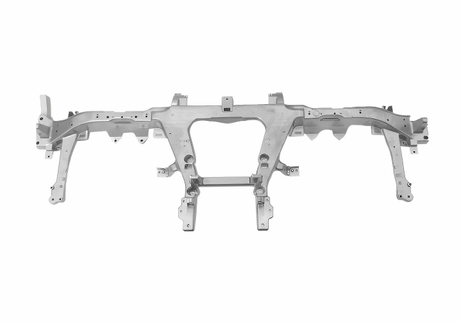

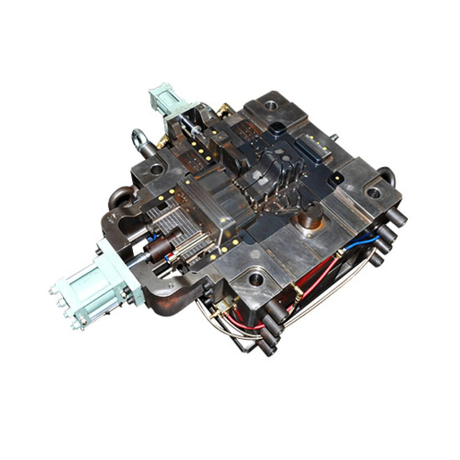

For automotive structural parts (such as rear floors and rocker beams), we have developed ultra-large die-casting molds (with a maximum clamping force of 6000 tons):
● "Local pressurization" technology is used to ensure full molten metal filling at the far ends of large castings;
● Thin-wall molding is achieved (down to 1.5mm, such as the battery pack cover of new energy vehicles), reducing weight while maintaining structural strength (through topology optimization design, the casting has a tensile strength of ≥280 MPa).
