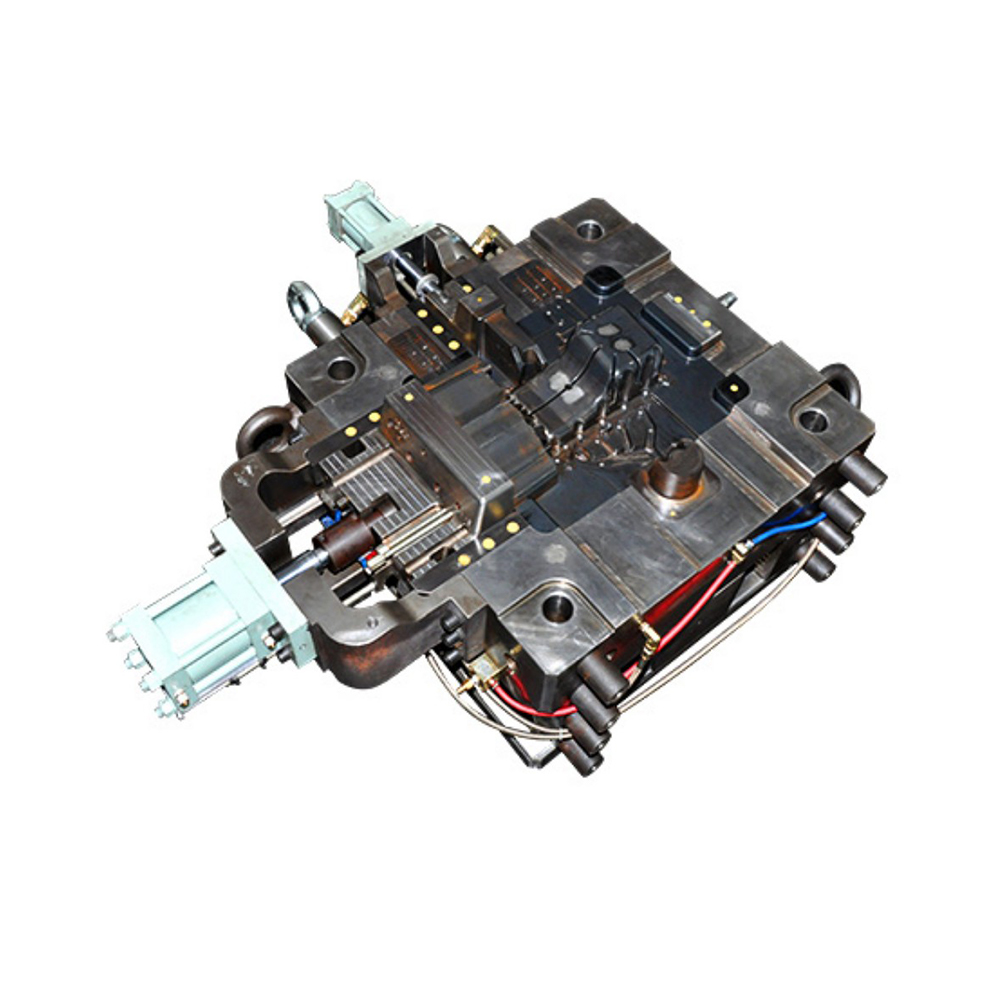

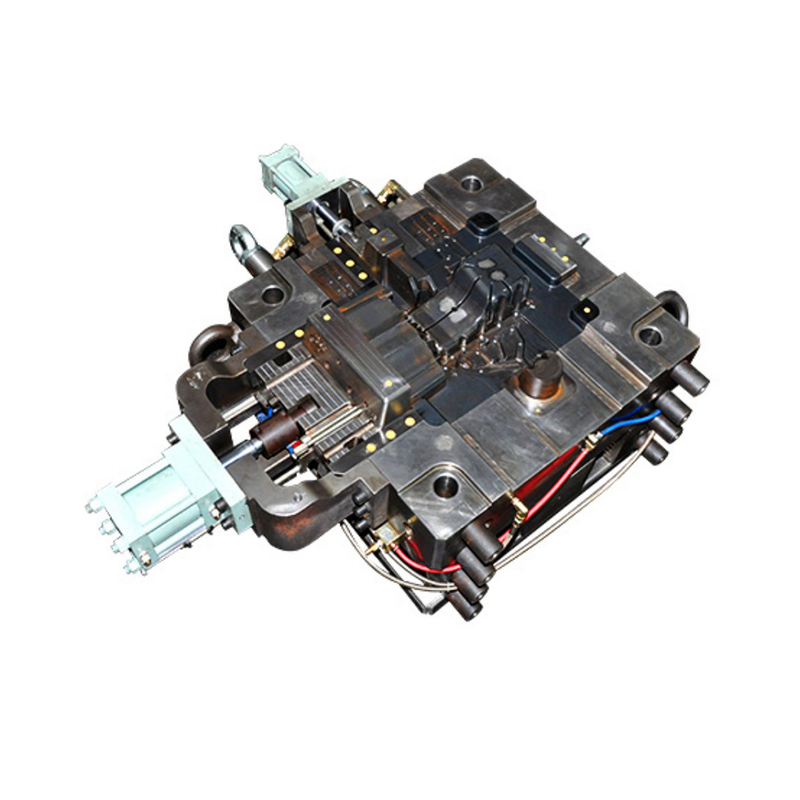

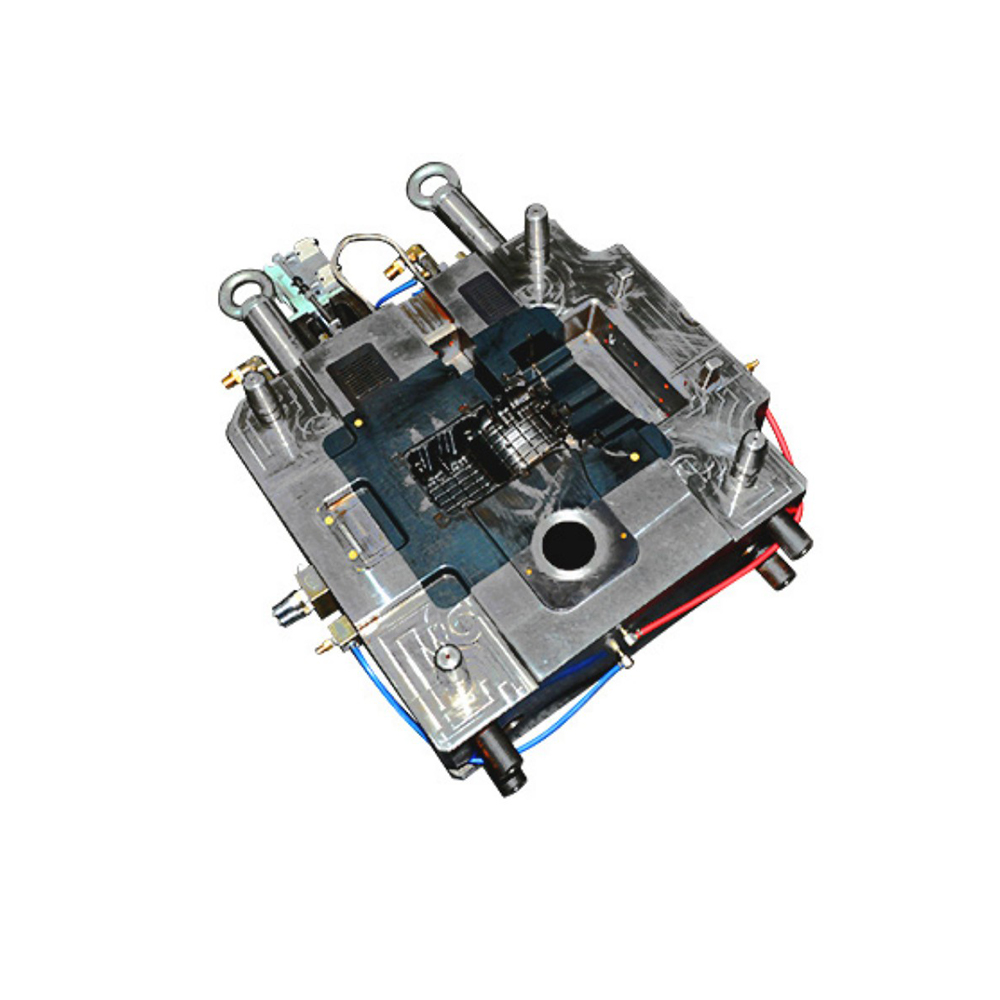

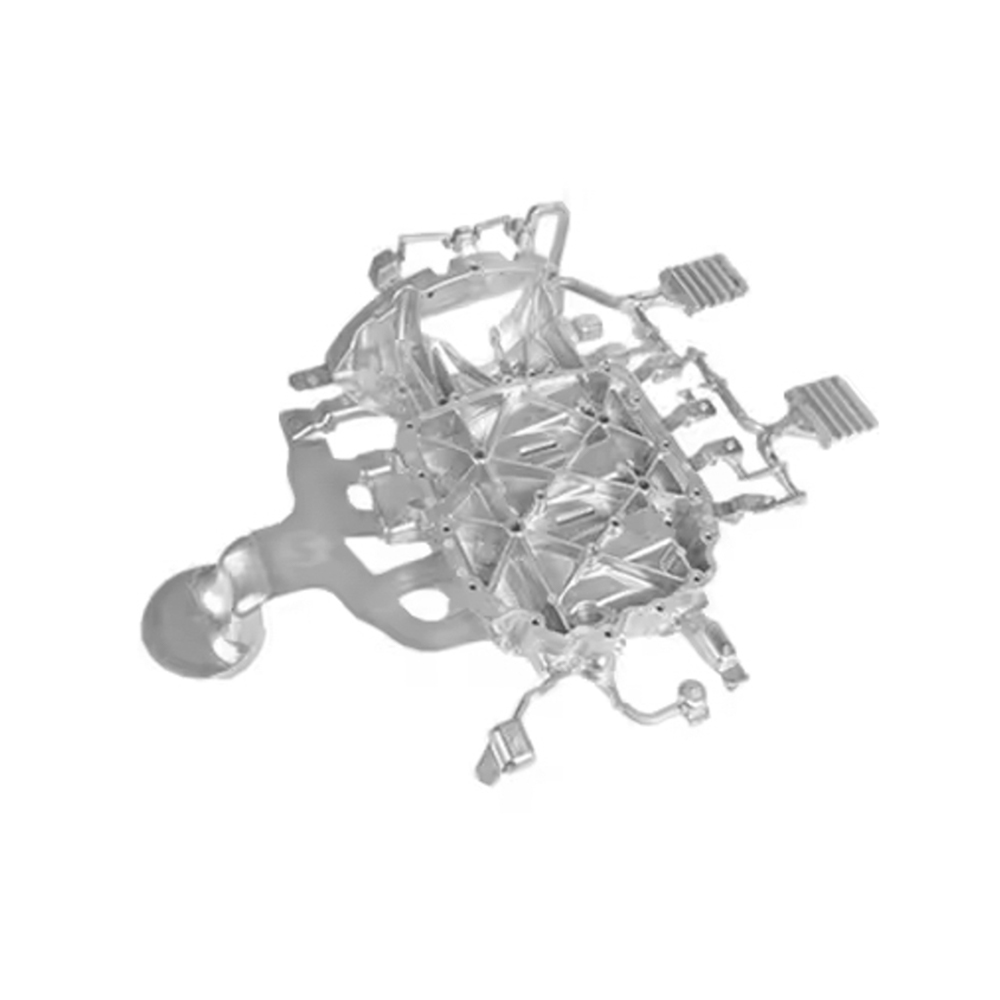

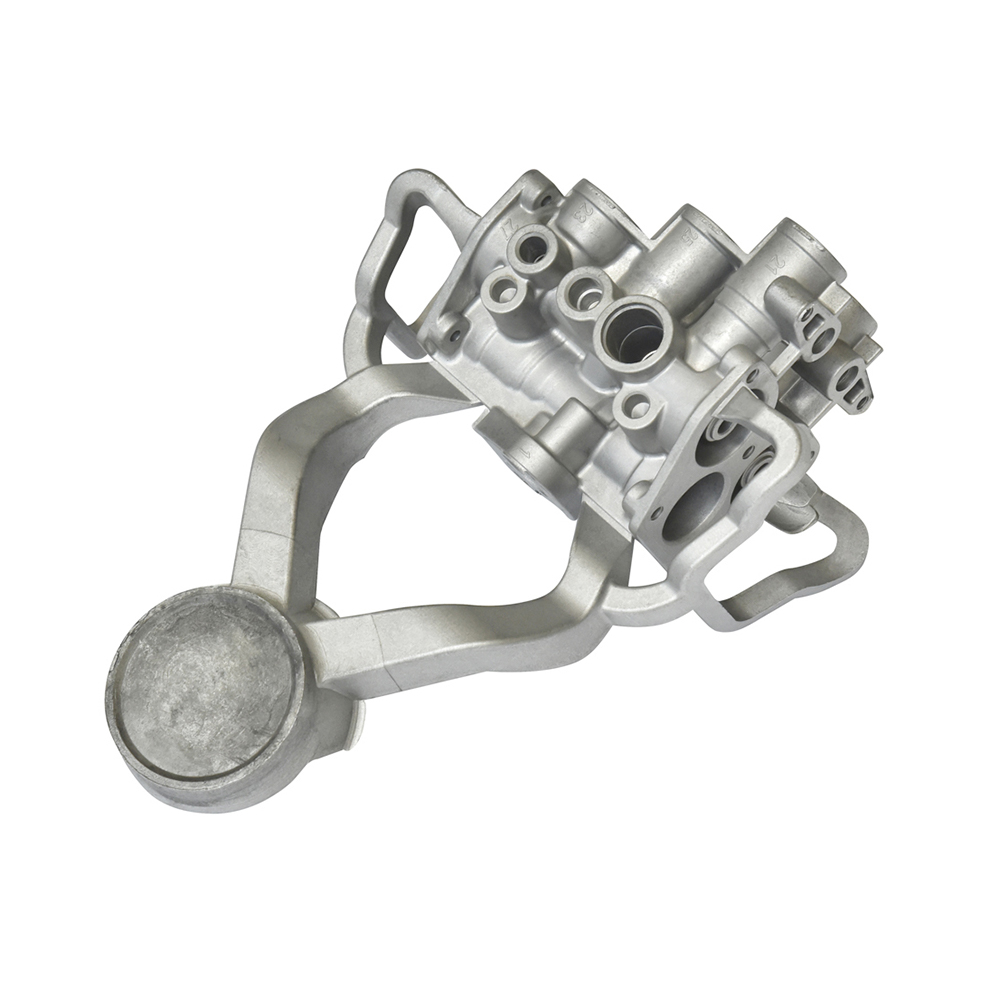

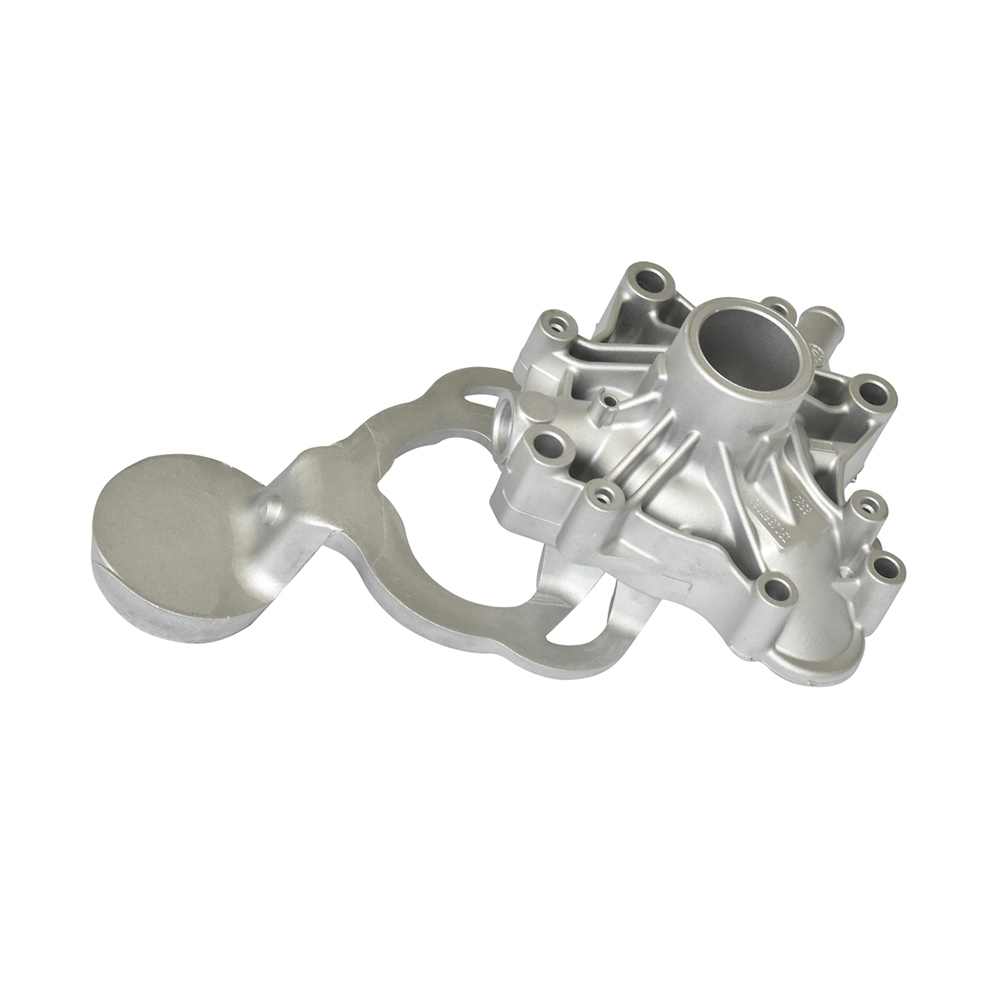

Ⅰ. Die-casting Dies for New Energy Vehicle Parts: A Collaborative Innovation of Material Innovation and Process Breakthroughs
In the field of new energy vehicle manufacturing, die-casting die technology is undergoing a paradigm shift from traditional processes to high-end manufacturing. With electric vehicles pursuing extreme lightweighting, high strength, and integration, die-casting dies, as key process equipment, directly determine the performance and production costs of core components. This article systematically analyzes the technical advantages, distinctive features, and core technological characteristics of die-casting dies for new energy vehicle parts, showcasing innovative achievements and development trends in this field.
Ⅱ. Material Revolution: From Pain Points of Wear to Performance Leaps
The breakthroughs in die-casting dies for new energy vehicles are primarily reflected in innovations in material technology. Traditional die-casting dies have long suffered from a lifespan shortcoming caused by repeated impacts from high-temperature molten aluminum. This is particularly true in the production of complex structural parts with porous or thin walls. Molds made of American standard H13 or German standard 1.2344 die steel often experience failures such as collapse and cracking after approximately 20,000 cycles. This material's limitations stem from the fact that traditional mold steels contain only approximately 1.4% molybdenum. The lack of heat-resistant alloying elements results in poor thermal stability and a sharp drop in strength at high temperatures.
The advent of 8433 mold steel has revolutionized this situation, achieving a significant performance improvement through three key technological breakthroughs: First, the molybdenum content is increased to 3%, significantly improving the material's thermal stability and high-temperature strength. Second, the use of an atmosphere-shielded electroslag and six-sided forging process reduces the sulfur impurity content to below 0.0005%, effectively eliminating cracking at the root. Most importantly, at the same hardness, its unnotched impact toughness is over 50% higher than that of H13, reaching a hardness of HRC54-58, achieving a perfect combination of high hardness and high toughness. Actual application data shows that die-casting molds using 8433 steel have an average lifespan of over 40,000 cycles, more than 100% longer than traditional H13 molds. As a result, one automotive aluminum alloy parts manufacturer has reduced its overall production costs by 30%. Alumold600, a specialized aluminum alloy mold material, demonstrates unique advantages for specialized applications such as new energy vehicle battery modules. This material combines the superior properties of aluminum alloy and mold steel, achieving a Brinell hardness of 220-240 HB, approaching the level of mold steel, while boasting a thermal conductivity of 180-210 W/(m・K), far exceeding that of conventional mold steel. Its tensile strength reaches 580-650 MPa and it can operate continuously at 350°C, making it particularly suitable for die-casting battery and motor housings, where heat dissipation performance is critical. This innovative material achieves a breakthrough in the field of lightweight molds for heavy-duty parts, providing a novel solution for the production of core components for new energy vehicles.
Ⅲ. Process Breakthrough: From Distributed Manufacturing to Integrated Molding
The most significant technical feature of die-casting molds for new energy vehicles is their support for the disruptive integrated die-casting process. In traditional automotive manufacturing, the body structure is assembled from hundreds of welded parts. However, the Giga Press, a super-large die-casting machine developed in collaboration between Tesla and LK Technology, uses specialized molds to press-form the complete Model Y rear floor in a single pass, reducing unit manufacturing time by 97%. This transformation is driven by significant breakthroughs in die-casting mold technology, requiring uniform mold filling, precise temperature control, and sufficient structural strength.
The technical parameters of super-large, integrated die-casting molds have reached astonishing levels. Among LK Technology's LEAP series die-casting machines, the LEAP9000 boasts a clamping force of up to 90,000 kN and a platen size of 4,100 x 4,100 mm, capable of accommodating molds for integral body components. The design of such super-large molds presents three major challenges: ensuring uniform filling of the molten metal within the ultra-large cavity, ensuring efficient exhaust of the complex structure, and maintaining thermal balance throughout the mold. By employing CAE simulation technology, creating a finite element mesh in Hypermesh and simulating the flow, filling, and temperature fields in ProCAST, we can accurately predict defects and optimize mold structures, ensuring high consistency between simulated defects and actual X-ray inspection results.
For complex components such as on-board charger housings for new energy vehicles, die-casting molds have developed sophisticated gating and cooling system designs. These housings have complex internal structures and widely varying wall thicknesses (minimum 1.5mm, maximum 19mm), requiring high density and low porosity. The mold design utilizes a special high-pressure spot cooling mechanism. Water cooling pipes are inserted through holes drilled in the deep-cavity mold or core, maintaining optimal mold surface temperatures by controlling the coolant's residence time. This cooling system effectively prevents sticking, strain, and thermal cracking, while also extending the life of the thin core and preventing breakage. Combined with an optimized gating system design, the metal flows smoothly along the wall, avoiding eddy currents and enabling the entire filling process to be completed within 0.2427 seconds.
Ⅳ. Technological Convergence: The Co-evolution of Intelligent Manufacturing and Precision Manufacturing
The core technical characteristics of die-casting molds for new energy vehicles are reflected in the deep integration of multidisciplinary technologies. Digital simulation technology has become an essential tool for mold development. By establishing a detailed model with 5.78 million meshes, the flow and temperature fields during the die-casting process can be fully simulated. Simulation analysis not only predicts defects such as pores and shrinkage, but also optimizes process parameters. For example, by setting the initial pouring temperature to 650°C, the mold preheating temperature to 220°C, and the gate speed to 3.0 m/s, precise control of casting shrinkage was achieved to 6%. This digital capability significantly shortens mold development cycles and reduces mold trials.
Improved mold manufacturing precision supports the high-performance requirements of new energy vehicle components. Alumold600 mold aluminum achieves nanometer-level surface finishes of Ra 0.01μm, making it suitable for micron-level precision structure manufacturing. This ultra-high precision ensures the sealing requirements of the battery housing, preventing the risk of electrolyte leakage. It also improves the dimensional consistency of the heat dissipation fins on the motor housing, ensuring stable heat dissipation efficiency. For components like on-board charger housings that carry both electrical and structural functions, the mold's precision manufacturing capabilities directly determine the balance between insulation performance and mechanical strength.
Intelligent monitoring technology is reshaping the way die-casting molds are used. Modern molds often integrate temperature and pressure sensors, enabling real-time monitoring of key parameter changes during the molding process. Combining the performance characteristics of 8433 mold steel, intelligent systems can dynamically adjust cooling intensity and die-casting cycles, maximizing production efficiency while ensuring part quality. In one case study, the use of intelligent molds increased product yield by 15%, significantly improving production efficiency. This "material performance + intelligent control" model represents the future direction of die-casting mold technology.
Ⅴ. Scenario Verification: Precise Matching of Technical Characteristics with Functional Requirements
The diverse demands of new energy vehicles are driving the diversification of die-casting mold technology. In the battery module industry, molds must meet both lightweight and high-strength requirements. The use of Alumold 600 material reduces the weight of battery housings by over 30%, while also reducing the number of connecting parts by over 50% through integrated molding. The mold design specifically emphasizes the molding precision of the sealing structure. CAE analysis optimizes the dimensional control of the sealing ring groove to ensure the battery pack's IP67 protection rating.
Motor system components place even higher dimensional accuracy demands on die-casting molds. The motor housing not only needs to precisely support the rotor and stator, but also requires efficient heat exchange through external heat dissipation structures. The mold utilizes a conformal cooling channel design to control the casting wall thickness deviation to within ±0.1mm, ensuring concentricity during motor operation. For parts with complex bearing housings, such as motor end caps, the mold integrates a slider core-pulling mechanism, enabling the single-step molding of difficult-to-machine structures such as deep cavities and blind holes, reducing subsequent machining.
The trend toward larger body structural parts is driving the development of ultra-large molds. Since Tesla's first use of a 6,000-ton die-casting machine in 2019, the clamping force has climbed to 16,000 tons in just a few years. LK Technology's LEAP series of ultra-large die-casting machines feature a modular mold interface design to accommodate the production of integrated structural parts of varying sizes. The use of this ultra-large mold reduces the number of vehicle body parts by over 70%, reducing weld points from thousands in traditional processes to dozens, significantly improving vehicle body structural strength and production efficiency. Currently, the penetration rate of integrated die-casting technology in the global automotive industry has reached approximately 10%, and is expected to increase rapidly in the coming years.
Technological advances in die-casting molds for new energy vehicle components are profoundly changing the competitive landscape of the automotive manufacturing industry. From innovative materials like 8433 die steel and Alumold 600 aluminum alloy, to process-level integrated die-casting and intelligent cooling systems, and to full-process digital simulation, each technological breakthrough is driving improvements in production efficiency, product quality, and material utilization. With the continued growth of the new energy vehicle market, die-casting mold technology will continue to achieve breakthroughs in lightweighting, integration, and intelligence, providing core support for the transformation and upgrading of the automotive industry.
