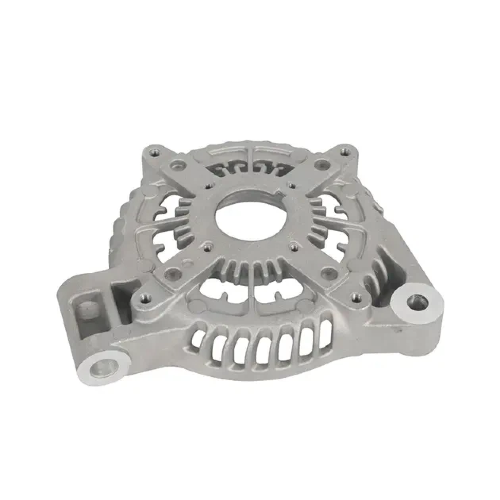

Aluminum alloy die casting is a manufacturing process in which molten aluminum alloys are injected under high pressure into a steel mold, known as a die, to form intricate and complex shapes. This process has become integral to many industries, especially those requiring lightweight, durable, and corrosion-resistant components.
Aluminum alloy die casting is one of the most efficient and precise manufacturing methods used to create parts with complex geometries. It involves forcing molten aluminum alloy into a die cavity, where it cools and solidifies to form a part. The die is reusable, allowing for high-volume production, which makes this process ideal for mass-producing metal parts that are used in industries like automotive, electronics, aerospace, and machinery.
Aluminum alloys are the preferred material for die casting because they combine light weight, strength, and excellent resistance to corrosion. These properties make aluminum die castings ideal for components that must withstand harsh environments, endure high stresses, or remain lightweight for performance reasons, such as in the automotive and aerospace industries.
Understanding the aluminum alloy die casting process is essential for appreciating its value in modern manufacturing. Here's a detailed breakdown of the process steps involved in creating high-quality die-cast aluminum parts.
Mold Preparation
The first step is to prepare the steel die, which is often designed using computer-aided design (CAD) software. The die is precision-machined to ensure tight tolerances and correct cavity shape. It may also be coated to reduce wear during the casting process.
Injection of Molten Aluminum Alloy
Once the mold is prepared, molten aluminum alloy is injected into the die under high pressure. This pressure forces the molten metal to fill every cavity and detail of the die, ensuring that the part is created with precision.
Cooling and Solidification
After injection, the aluminum alloy begins to cool and solidify. This cooling phase is critical for ensuring that the aluminum retains its strength and dimensional accuracy. The cooling rate can be controlled by modifying the temperature of the die or the flow of coolant.
Ejection and Finishing
Once the aluminum has fully cooled and solidified, the die opens, and the newly formed part is ejected. Any excess material from the casting process, such as runners or risers, is then removed, and the part undergoes secondary finishing processes like trimming, sanding, and surface treatment.
Step | Description | Key Features |
Mold Preparation | Design and prepare the steel die with precision machining. | CAD design, high tolerance, mold coating to reduce wear. |
Injection of Molten Aluminum | Inject molten aluminum into the die under high pressure. | High pressure, ensures full cavity filling. |
Cooling and Solidification | Cool the aluminum to allow solidification, maintaining the part’s strength and dimensional accuracy. | Controlled cooling rate, critical for precision. |
Ejection and Finishing | Eject the part from the mold and remove excess material. Secondary finishing includes trimming and sanding. | Secondary processes for a finished, smooth surface. |
Aluminum alloy die casting offers numerous advantages that make it the preferred choice for many industries. These benefits include material properties, process capabilities, and cost-efficiency.
One of the primary reasons aluminum alloys are used in die casting is their combination of low density and high strength. Aluminum is one of the lightest metals used in die casting, which is why it’s often chosen for industries where reducing weight is critical, such as automotive and aerospace.
Strength-to-weight ratio: Aluminum alloys have an excellent strength-to-weight ratio, providing the necessary strength without the added weight of other metals like steel.
Long lifespan: Components made from aluminum alloys are durable and resistant to corrosion, making them ideal for applications that require long-term reliability.
Aluminum alloy die casting is known for its ability to produce parts with high precision and tight tolerances. The die casting process allows for the creation of intricate and complex shapes that would be difficult or impossible to achieve with other methods.
Intricate designs: Complex geometries, internal cavities, and thin walls can be easily formed.
Tight tolerances: The high precision of aluminum die casting ensures that parts fit perfectly and function as intended in assembled products.
Aluminum naturally forms an oxide layer that protects it from corrosion, making aluminum alloy die castings particularly well-suited for outdoor and harsh environment applications.
Outdoor applications: Aluminum alloy parts are commonly used in industries such as automotive, where parts are exposed to weathering and corrosive elements.
Longevity: The corrosion resistance significantly extends the life of components, reducing the need for frequent replacements.
Die casting offers exceptional cost-effectiveness for high-volume production. The reusable steel molds, combined with the rapid production speeds, make it highly efficient for creating large quantities of parts at a low cost per unit.
High-volume efficiency: The aluminum die casting process is extremely efficient for mass-producing components at scale.
Minimal waste: Aluminum die casting reduces material waste compared to other manufacturing methods, keeping costs down.
Aluminum alloy die casting is used across various industries to produce components that require lightweight, durable, and precisely manufactured parts. Some of the most common applications include:
In the automotive sector, aluminum alloy die casting is used to produce engine parts, housings, transmission cases, and other critical components that require both strength and reduced weight for fuel efficiency.
Key parts: Engine blocks, cylinder heads, transmission casings, oil pumps, and gear housings.
Benefits: Lightweight materials improve fuel efficiency and reduce the overall weight of vehicles.
Aerospace components often need to withstand extreme conditions while being as lightweight as possible. Aluminum alloy die casting is ideal for producing critical aerospace components such as landing gear, structural parts, and housings for avionics.
Key parts: Structural components, engine parts, airframe components.
Benefits: High strength-to-weight ratio and corrosion resistance are critical in this industry.
Aluminum alloy die casting plays an important role in the electronics industry, especially for components such as enclosures, heat sinks, and connectors. These parts require high precision and heat resistance, making aluminum alloy the ideal material.
Key parts: Computer housings, heat sinks, electronic enclosures.
Benefits: Thermal conductivity, durability, and aesthetic appeal.
Die casting is also widely used in machinery and industrial equipment manufacturing. Parts such as motor housings, pump components, and structural frames benefit from the strength, precision, and lightweight properties of aluminum alloys.
Key parts: Pump casings, motor housings, machinery components.
Benefits: Lightweight and precision for complex designs.
The quality of aluminum alloy die cast parts is critical for their performance in end applications. Maintaining high standards throughout the production process is essential to ensure reliability, durability, and precision.
Dimensional accuracy is one of the primary concerns in aluminum alloy die casting. Ensuring that parts are within the required tolerances is vital to ensuring proper fitment and function. Dimensional checks are performed using advanced measurement tools like coordinate measuring machines (CMMs).
Visual inspection is another quality control measure used to ensure that the die-cast parts meet aesthetic and functional requirements. Any imperfections, such as cracks or surface defects, are identified during this stage, and necessary corrections are made.
Non-destructive testing is an essential part of quality assurance in die casting. Techniques like ultrasonic testing, X-ray inspection, and dye penetrant testing are used to detect internal and surface flaws without damaging the parts.
Quality Control Method | Description | Key Features |
Dimensional Checks | Ensures that parts are manufactured to the exact specifications and tolerances. | High-precision measurement tools, like CMMs, used for accuracy. |
Visual Inspections | Identifies any surface imperfections, cracks, or defects. | Conducted with trained personnel, often with magnification. |
Non-Destructive Testing (NDT) | Detects internal flaws and surface defects without damaging the part. | Methods include ultrasonic, X-ray, and dye penetrant testing. |
Aluminum alloy die casting is a crucial process in modern manufacturing, offering high-quality, precise, and cost-effective solutions for creating lightweight and durable components. The flexibility of aluminum alloys, combined with the efficiency of die casting, makes it indispensable in sectors like automotive, aerospace, electronics, and industrial machinery. As industries continue to demand higher performance, reduced weight, and enhanced durability, aluminum alloy die casting will remain a key driver of innovation and manufacturing efficiency.
At Ningbo Ganyee Technology Co., Ltd., we specialize in providing top-tier aluminum alloy die casting services. Our cutting-edge technology and commitment to quality ensure that we deliver precision-engineered solutions for a wide range of industries. As the demand for high-performance parts increases, we are ready to help you meet your manufacturing needs. Contact us today to learn more about how our advanced die casting services can elevate your projects and contribute to your success.
What is the primary advantage of using aluminum alloys in die casting?
Aluminum alloys offer a unique combination of strength, lightweight properties, and excellent resistance to corrosion, making them ideal for producing high-performance parts.
Can aluminum alloy die casting create complex shapes?
Yes, aluminum alloy die casting is capable of producing intricate, complex shapes with high precision and tight tolerances, which is essential for many industries.
How does aluminum alloy die casting reduce manufacturing costs?
By enabling high-volume production with minimal waste, aluminum alloy die casting is a cost-effective solution for manufacturers, especially in large-scale operations.
Which industries benefit the most from aluminum alloy die casting?
Automotive, aerospace, electronics, and machinery industries benefit greatly from aluminum alloy die casting due to its ability to produce lightweight, durable, and intricate parts.
What quality control measures are used in aluminum alloy die casting?
Quality is ensured through rigorous inspections and testing, including dimensional accuracy checks, visual inspections, and non-destructive testing (NDT) to guarantee part integrity and performance.
