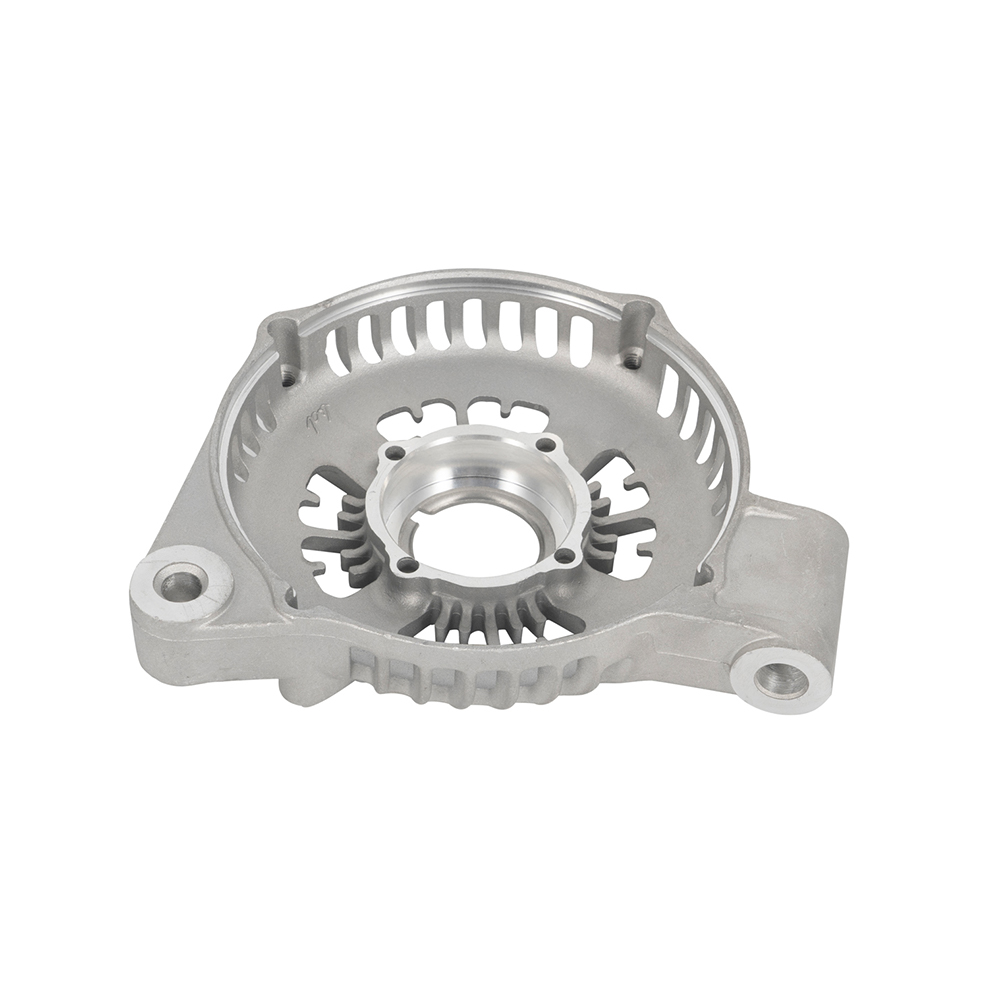

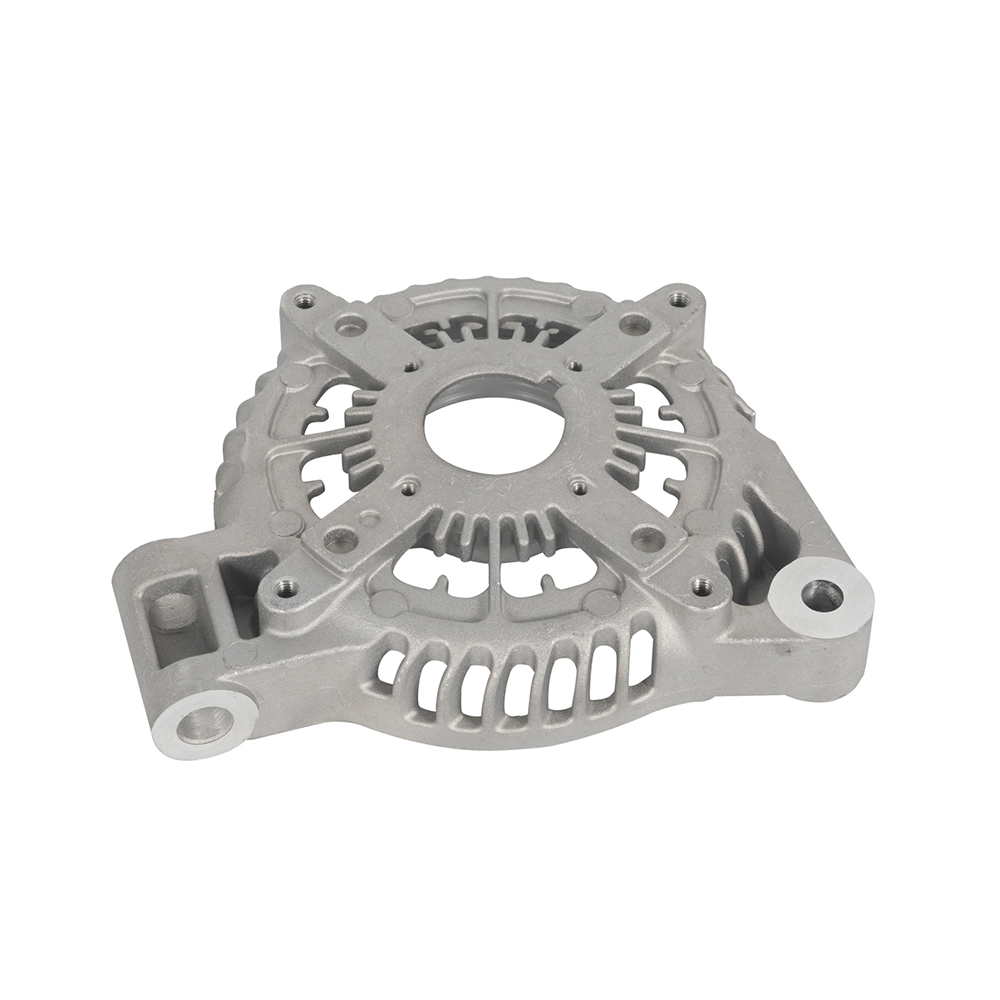

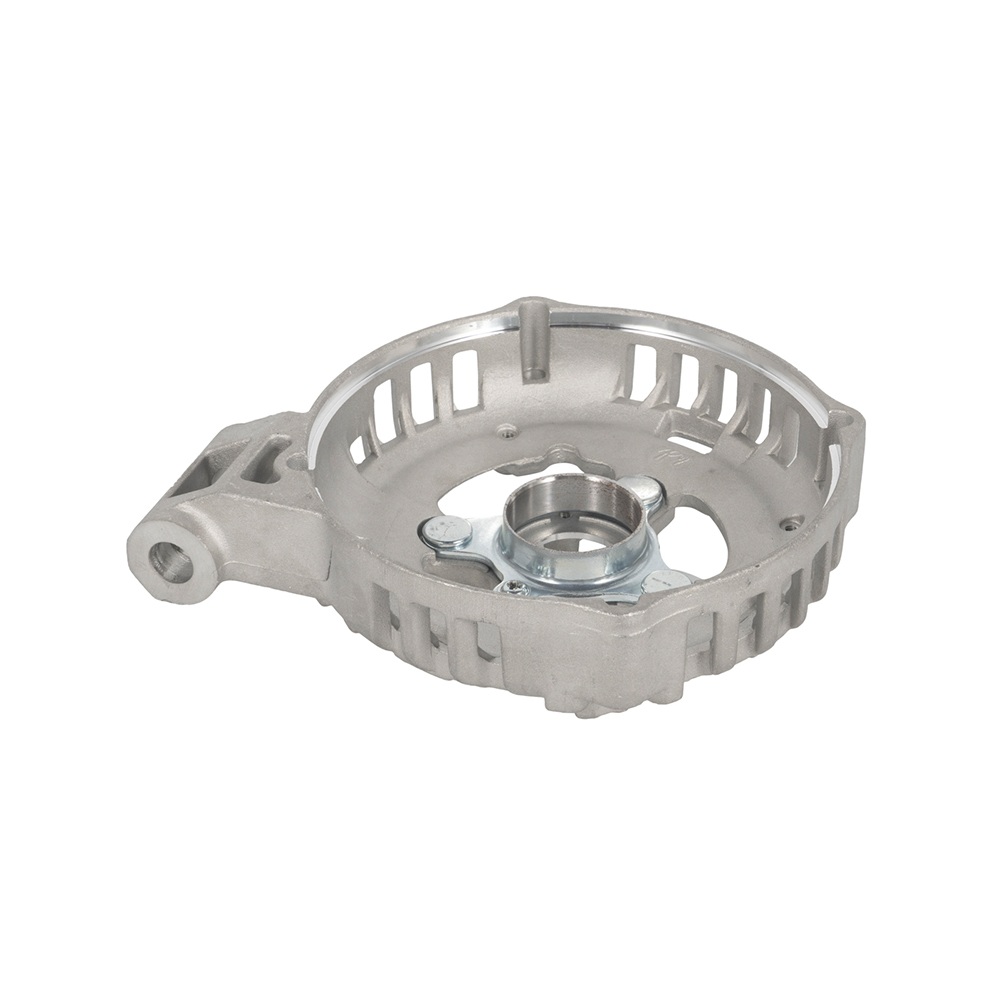

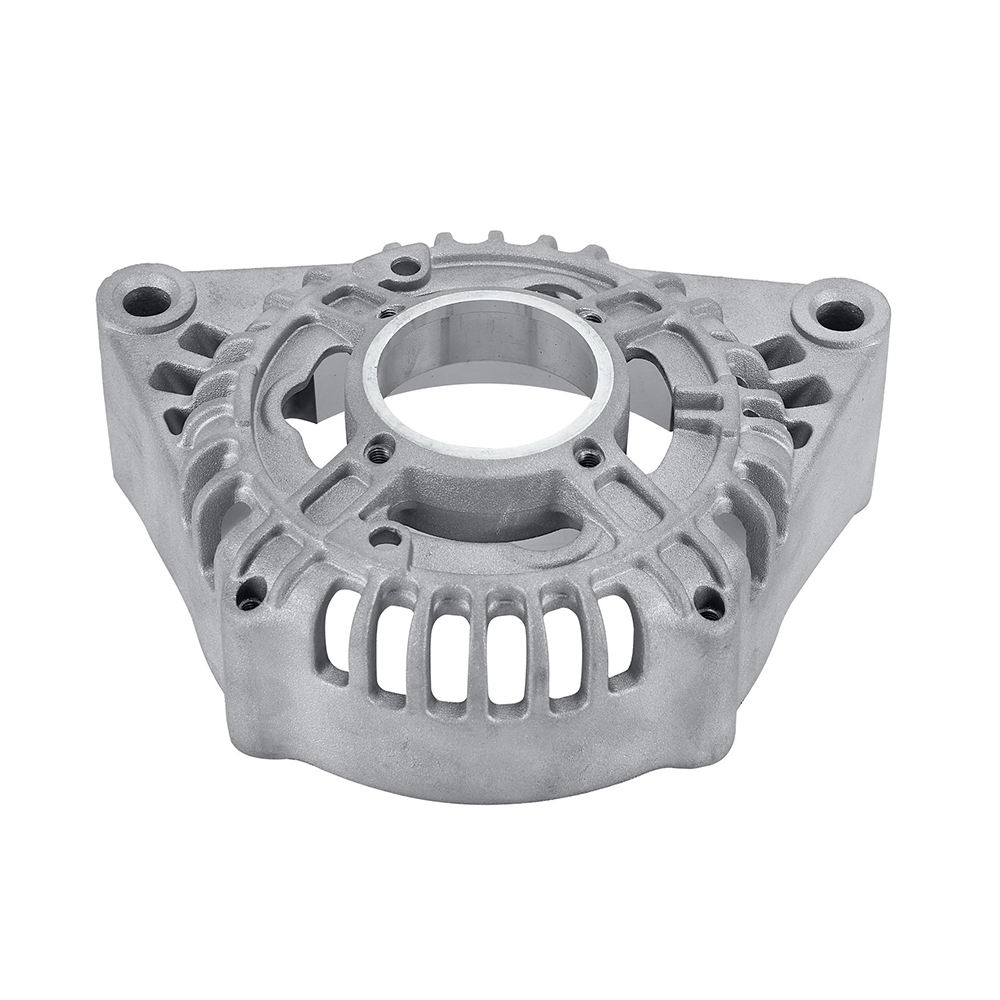

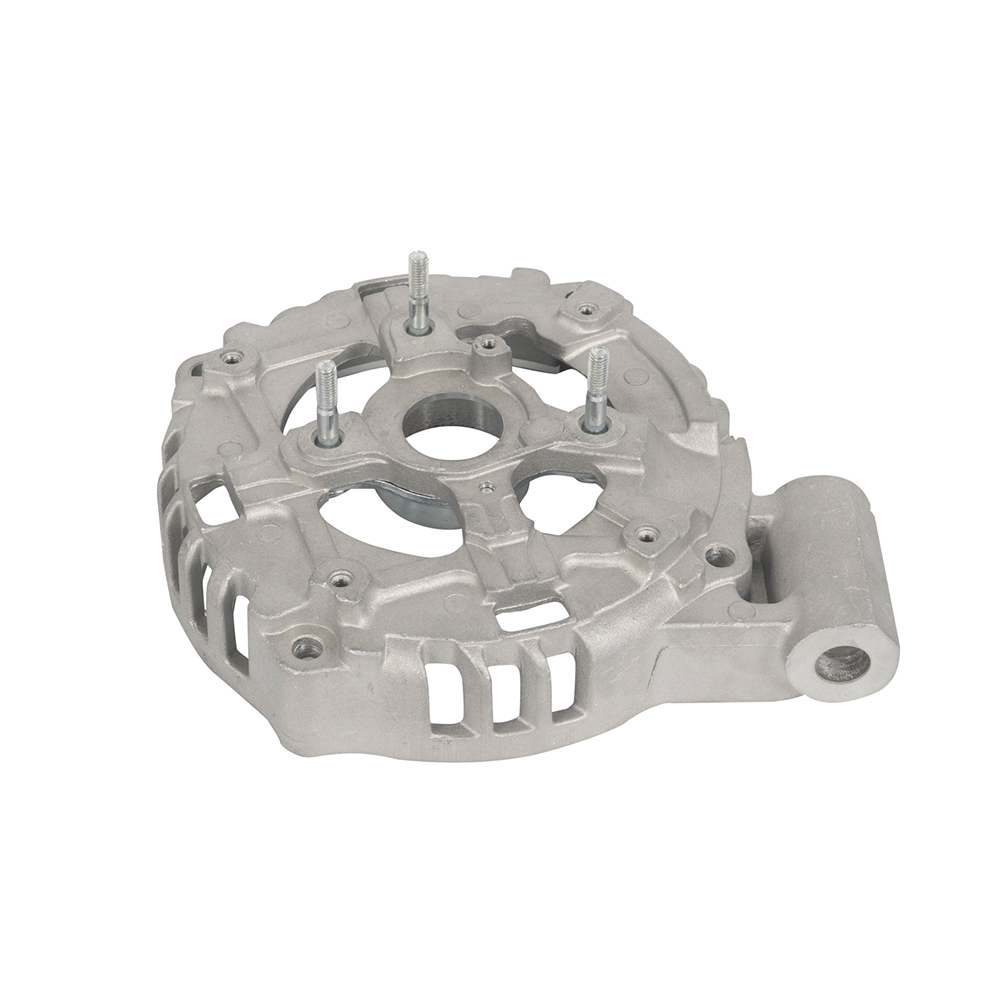

I. Core Advantages and Features of Aluminum Generator Housings
As the motor's "protection and heat dissipation carrier," the aluminum generator housing must simultaneously meet sealing, load-bearing, and thermal management requirements. Its advantages stem from a deep integration of material properties and structural design, as follows:
1. Lightweighting and Energy Efficiency Optimization: Adapting to weight reduction needs in multiple scenarios
● Weight Advantage: Aluminum generator housings made of aluminum alloys (such as ADC12 and A380) are 35% to 50% lighter than steel housings of the same size. For example, a 12V automotive generator aluminum housing (outer diameter Φ180mm × height 150mm) weighs only 1.2kg as a blank, while a steel housing weighs 2.1kg. This directly reduces overall unit handling costs (for industrial generators) and vehicle fuel consumption (for automotive generators, it can help reduce fuel consumption by 0.3 to 0.5L per 100km). · Suitable Scenarios: Automotive generators (requires high-frequency engine vibration; lightweight design reduces the load on the mounting system); portable outdoor generators (weight reduction allows single-person portability, ≤8kg); large industrial generators (overall weight reduction reduces the required mounting base load).
2. Efficient Heat Dissipation: Ensures long-term stable operation of the generator
● Thermal Conductivity: Aluminum alloy has a thermal conductivity of 100-237W/(m・K) (ADC12 thermal conductivity 105W/(m・K)), which is 2.3-7.9 times that of ordinary steel (15-45W/(m・K)). This allows for rapid heat dissipation from the generator stator and rotor. The aluminum housing of one industrial generator incorporates "ring-shaped cooling fins (15mm height, 8mm spacing)" that improve heat dissipation efficiency by 40% compared to a finless steel housing, maintaining a stable motor operating temperature of 80-100°C (steel housings can easily exceed 120°C, requiring the installation of an additional fan).
● Balanced Sealing and Heat Dissipation: The aluminum housing is die-cast to achieve a "sealed cavity + integrated heat dissipation structure" integration. This eliminates the dust and moisture intrusion that would occur in a steel housing due to excessive temperature rise, requiring openings for heat dissipation. This makes it suitable for harsh environments such as humid (e.g., ship generators) and dusty (e.g., mine generators).
3. High Corrosion Resistance: Extends Product Lifespan
● Material Weather Resistance: A 2-5μm thick oxide film (Al₂O₃) naturally forms on the surface of aluminum alloy, resisting corrosion from weak acids and alkalis. After surface treatment (e.g., anodizing or powder coating), the salt spray test lifespan reaches 500-1000 hours (steel housings require galvanizing, resulting in a salt spray lifespan of only 200-300 hours). For example, the aluminum housing of an offshore platform generator, after anodizing, can withstand five years of continuous use in salt spray environments without rust. · Corrosion-resistant structural design: The die-casting process avoids weld corrosion at the welds of the steel housing (welding can easily damage the galvanized coating). The aluminum housing is integrally formed without seams, and the sealing surface utilizes a stepped groove + O-ring seal to further isolate corrosive media.
4. Structural Integration: Simplifies assembly processes and reduces costs
● Integrated molding of complex structures: Die-casting allows for direct integration of mounting holes (e.g., 12 M8 threaded holes evenly distributed around the circumference), locating pins, terminal connectors, cooling fins, and other components, eliminating the need for subsequent welding or drilling. For example, an aluminum housing for an automotive generator incorporates six sets of cooling fins and eight locating holes in a single mold, reducing the number of assembly steps from eight for a steel housing to three. The assembly time per unit has been reduced from 15 minutes to 5 minutes, increasing annual production capacity to 500,000 units. Dimensional Accuracy Guarantee: Key assembly surfaces (such as the flanges that mate with the end caps) have tolerances of GB/T 6414 CT8, with flange diameter tolerances of ±0.05mm and flatness ≤0.1mm. This allows for a direct, gasketless seal with the end cap, reducing seal procurement costs.
II. Die-Casting Technology Features Suitable for Generator Aluminum Housings
Generator aluminum housings have stringent requirements for structural integrity (no pores), dimensional accuracy (for assembly requirements), and heat dissipation efficiency (for fin formation). These requirements require a targeted die-casting process design. The core technical features are as follows:
1. Precise Matching of Material and Process Parameters
Aluminum Alloy Selection: Select the material based on the generator power. For low-power (≤5kW) automotive generators, choose ADC12 (excellent fluidity, suitable for complex fin formation, and a tensile strength of ≥230MPa); for high-power (≥100kW) industrial generators, choose A380 (higher strength, with a tensile strength of ≥280MPa, capable of withstanding radial forces during motor operation). · Die-casting Parameter Control:
● Clamping Force: For small aluminum shells (Φ≤200mm), use a 500-800T cold chamber die-casting machine; for large aluminum shells (Φ≥500mm), use a 1200-2000T die-casting machine to avoid flashing at the parting surface.
● Injection Speed: 3-5m/s during the filling phase (to quickly fill the gaps between the heat sink fins and prevent material shortages); 0.8-1.2m/s during the holding phase (to reduce shrinkage voids).
● Mold Temperature Control: Mold temperature is 180-220°C (ADC12) and 200-240°C (A380). Intermittent water supply is used to maintain stability through the mold temperature controller to prevent dimensional deviations (such as uneven fin thickness) caused by mold temperature fluctuations. 2. High Vacuum Die Casting: Solving Porosity and Sealing Challenges
● Vacuum System Design: To meet the "sealed cavity" requirements of the generator aluminum housing, a combination of "partial vacuum + overall vacuum" technology is employed. Three to five vacuum extraction holes are located in the mold area corresponding to the inner cavity of the aluminum housing. Combined with the integrated vacuum valve, the mold cavity vacuum is controlled to ≤5kPa, reducing air entrained during aluminum molten filling and maintaining a casting porosity of ≤3% (porosity in the stressed area ≤1%).
● Actual Results: After high vacuum die casting, a certain automotive generator aluminum housing achieved a leakage rate of ≤2mL/min at 0.5MPa, far below the industry standard (≤5mL/min). Subsequent repair welding and hole plugging are no longer necessary, and the pass rate has increased from 85% with traditional die casting to 98%.
3. Optimizing Heatsink Fin Molding: Ensuring Heat Dissipation Efficiency
● Mold Flow Channel Design: To address the "stock shortage" issue with slender heatsink fins (2-3mm thick, 15-25mm high), a "multi-gate split flow" design is employed. Four to six gates are positioned around the circumference of the aluminum shell to ensure simultaneous filling of the fin gaps with molten aluminum. Combined with "super-spot cooling" technology (a Φ3mm diameter spot cooling needle is positioned at the fin root, with a cooling time of 10-15 seconds) this prevents shrinkage and cracking at the fin root.
● Post-processing Precision Control: Fin surface roughness is achieved through "mold polishing (Ra ≤ 0.8μm)" and post-die casting without cutting, eliminating the need for subsequent polishing and ensuring a consistent heat dissipation area. (The actual heat dissipation area of the fins in the aluminum shell of an industrial generator reached 0.8m², with a deviation of ≤2% from the design value.)
4. Intelligent Process Control: Stable Batch Quality
● Real-time Parameter Monitoring: The MES system links the die-casting machine, vacuum valve, and mold temperature controller to collect real-time data on 12 key parameters, including injection force (±5% tolerance), molten aluminum temperature (670-690°C, ±5% tolerance), and vacuum level (≤5kPa). Automatic shutdown and alarms are triggered when deviations occur, preventing batch defects.
● Integrated Post-Processing: After die-casting, the entire process is directly connected to a production line that includes "T6 heat treatment (ADC12 aging temperature at 170°C for 3 hours, increasing strength by 20%), robotic deburring (for threaded holes and gate residue), and airtightness testing." This enables one-stop production from "die-casting - molding - testing," reducing the production cycle per part from 40 minutes with traditional processes to 15 minutes.
