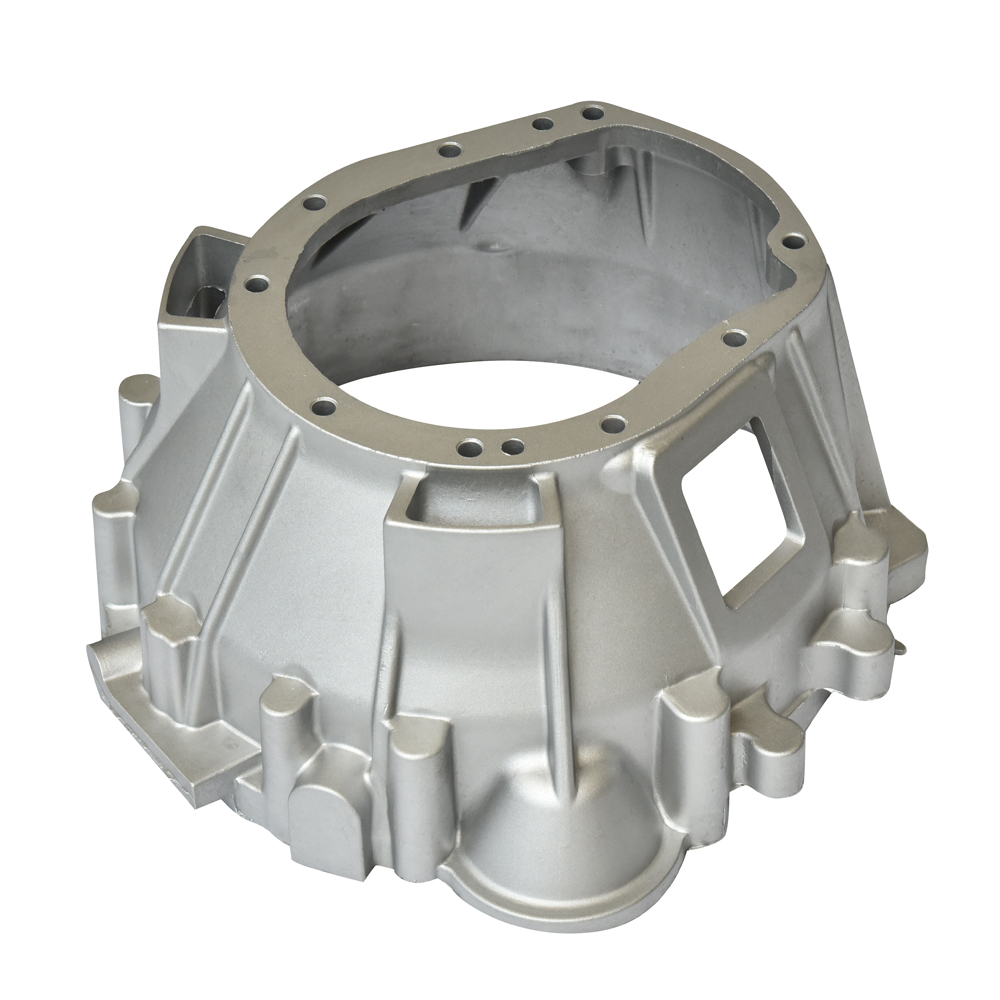

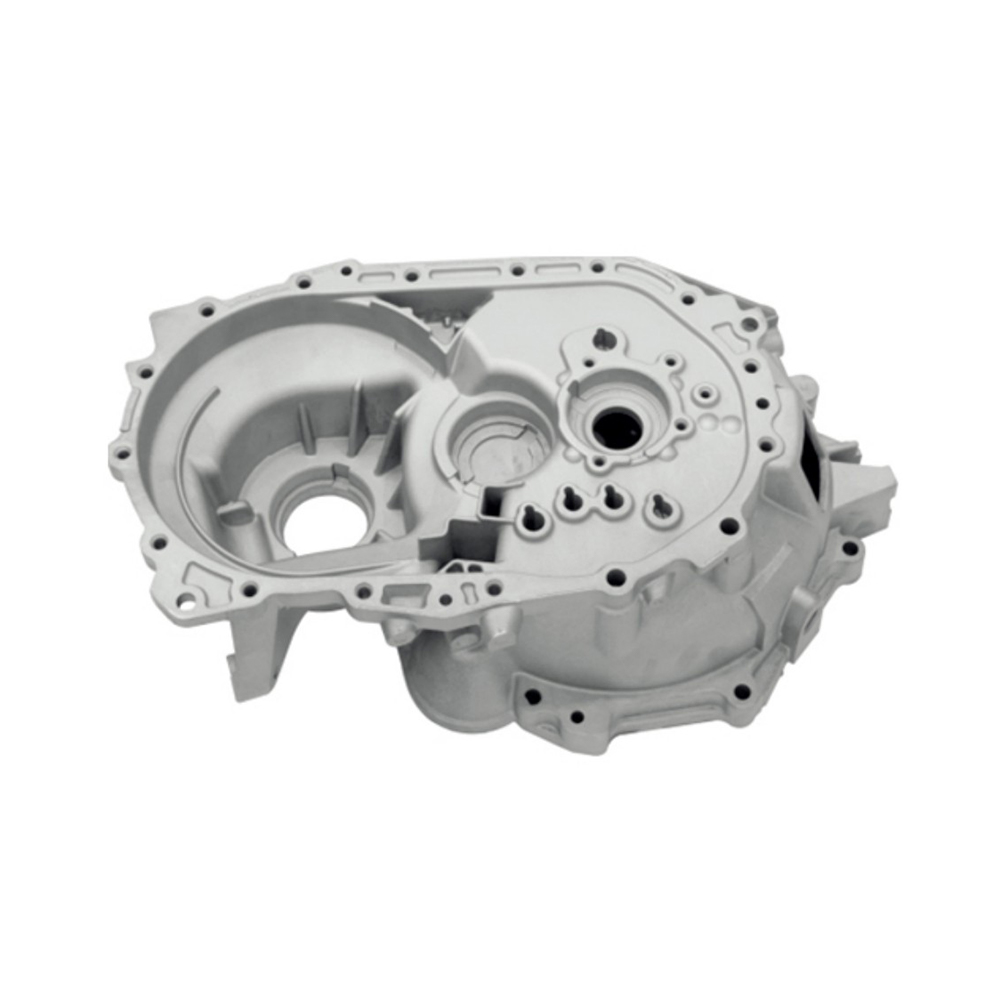

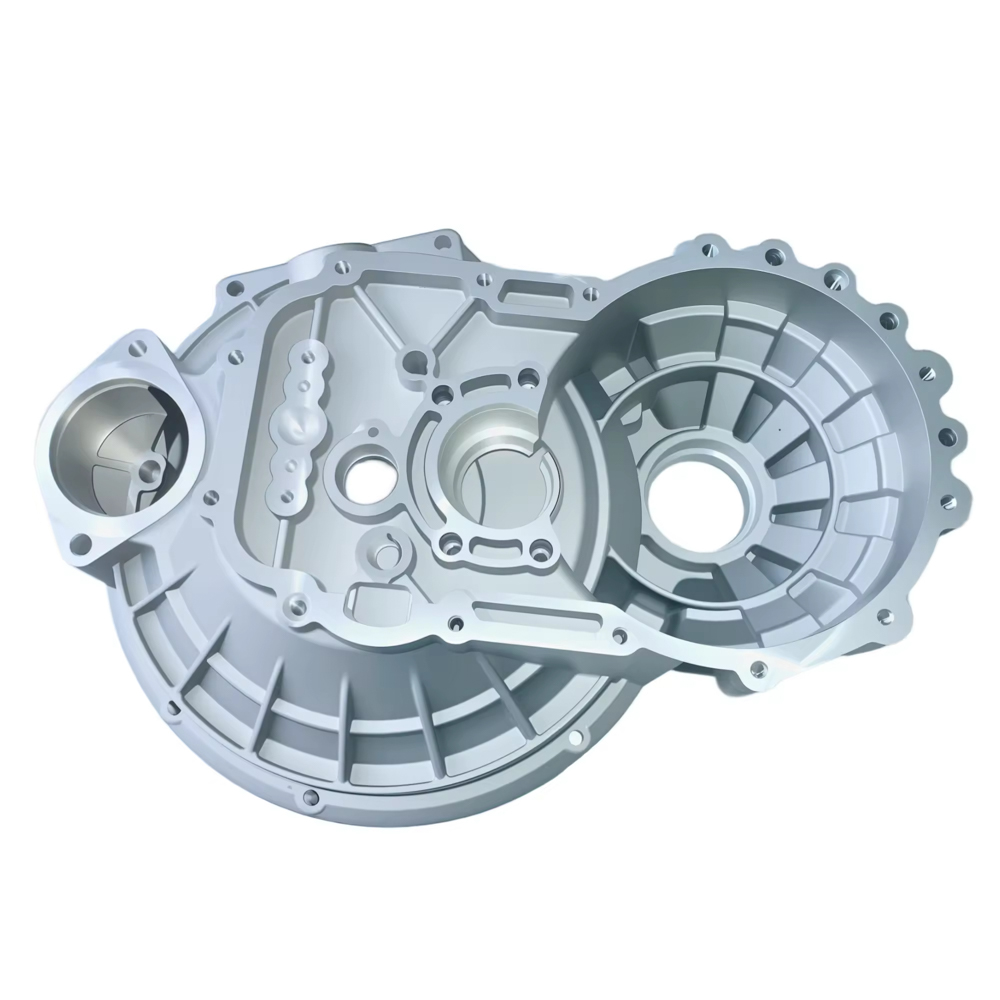

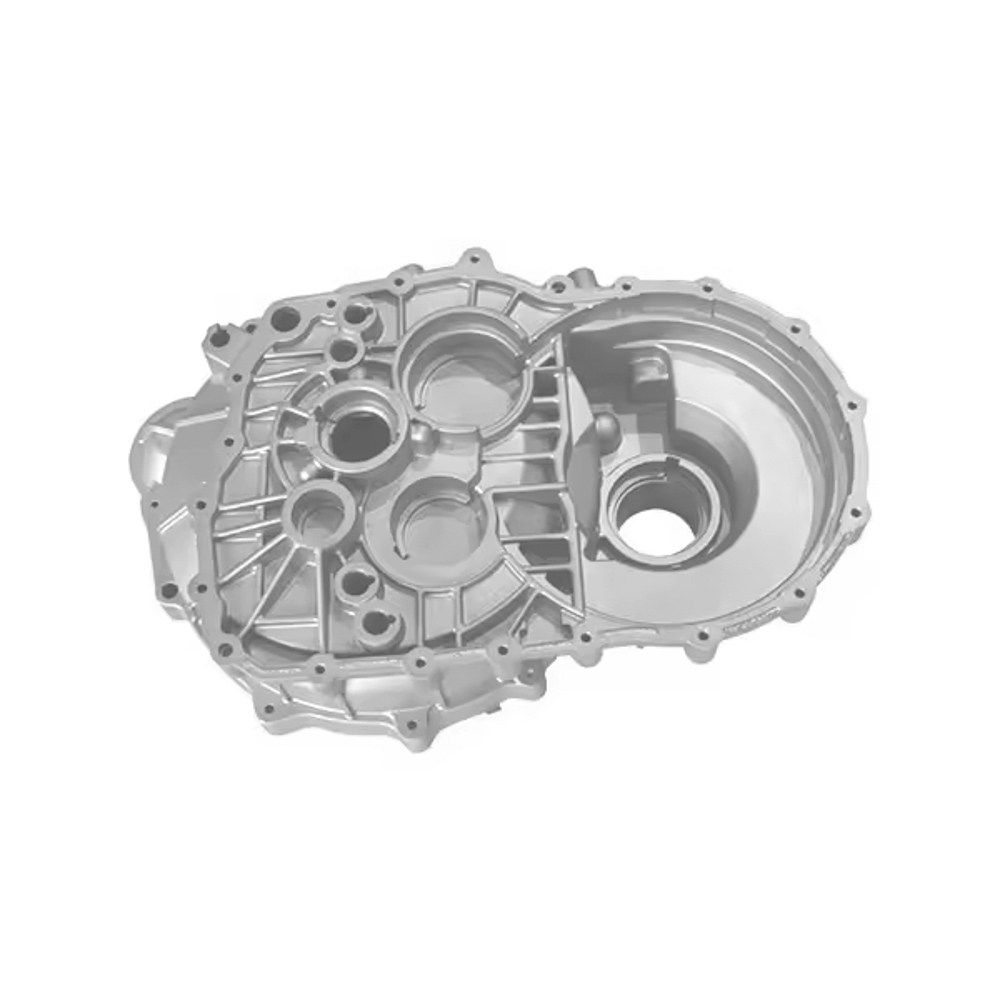

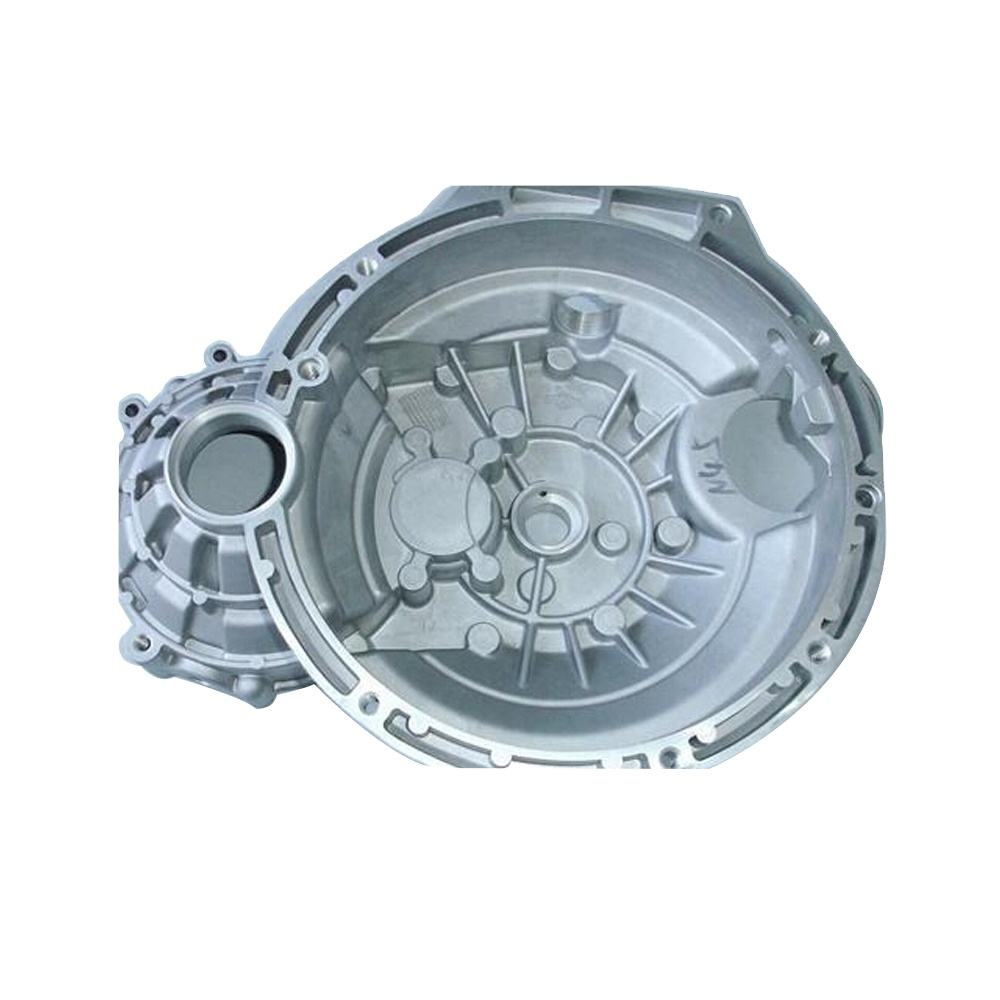

The clutch housing is the connecting hub of the automotive transmission system, simultaneously fulfilling three core functions: precise connection between the engine and transmission, support and fixation of the clutch assembly, and stable transmission of transmission torque. Its advantages stem from the material properties of aluminum alloy and die-cast structural design, as follows:
More compatible with energy-saving requirements than traditional materials.
● Weight Reduction Breakthrough: Clutch housings made of die-cast aluminum alloy (ADC12, A380) are 30%-40% lighter than cast iron housings of the same size. For example, a manual transmission clutch housing for a passenger car (380mm long, 260mm wide, and 180mm high) weighs only 5.8kg as a blank, compared to 9.5kg for a cast iron housing. Commercial light truck clutch housings (larger in size) are die-casted with aluminum alloy, reducing weight by 12-15kg per unit. This directly reduces the vehicle's unsprung mass, contributing to fuel consumption reductions of 0.2-0.3L/100km for passenger cars and 0.5-0.8L/100km for commercial vehicles.
● Scenario Adaptation: Passenger vehicles pursue low fuel consumption (e.g., hybrid vehicles require a balance between lightweighting and NVH control), while commercial vehicles prioritize "weight reduction and load-bearing balance" (e.g., light truck casings have a wall thickness of 5-7mm, 2-3mm thinner than cast iron, yet still meet torque transmission requirements).
Reducing Part Count and Improving Efficiency
● Integrated Molding of Complex Interfaces: The die-casting process allows for direct integration of key structures such as the engine docking flange, transmission locating stop, clutch bearing seat, and shift mechanism mounting holes, eliminating the need for subsequent welding or machining. A passenger car clutch housing is die-cast to incorporate eight M10 threaded holes (evenly distributed around the circumference), three locating pin holes (tolerance ±0.02mm), and one bearing seat (diameter Φ50mm, roundness ≤0.005mm). This reduces the number of parts from six in a cast iron housing to one, and the number of assembly steps from 15 to five. The assembly time per unit is reduced from 25 minutes to 8 minutes, increasing annual production capacity to 800,000 units. ·
● Dimensional Precision Guarantee: The engine-to-clutch housing and transmission have a surface tolerance of ≤0.1mm and a flange diameter tolerance of ±0.03mm, ensuring seamless connection between the engine, clutch housing, and transmission, eliminating noise caused by transmission misalignment (measured NVH values are 2-3dB lower than cast iron housings).
Suitable for Transmission System Fluid Protection
● Highly Airtight Design: The die-cast housing has no weld seams (eliminating the risk of fluid leakage at the welds of the cast iron housing). The sealing surface utilizes a "trapezoidal groove + nitrile rubber sealing ring" structure. Combined with a high-vacuum die-casting process (porosity ≤2%), leakage at 0.6MPa is ≤2mL/24h, significantly lower than the industry standard (≤8mL/24h). This meets the clutch fluid sealing requirements of manual and automated manual transmissions, preventing clutch slippage caused by fluid leakage.
● Optimized Dust and Water Resistance: A lip-shaped dust ring groove is installed at the interface between the housing and the engine, and a stepped seal is used at the interface with the transmission to resist rain and dust intrusion (IP6K7 waterproof test, no water ingress after 30 minutes of immersion), making it suitable for complex road conditions such as muddy and rainy days.
Carrying Dynamic Clutch Loads
● Torque and Impact Resistance: ADC12 aluminum alloy undergoes T5 heat treatment (aging temperature 160°C for 3 hours) with a tensile strength of ≥240MPa and a yield strength of ≥180MPa. It can withstand the instantaneous torque of clutch engagement (approximately 300-500N·m for passenger cars and 800-1200N·m for commercial vehicles). – A commercial vehicle clutch housing was tested through 100,000 engagement-disengagement cycles (maximum torque 1000N·m) with no cracks or deformation, and the bearing seat aperture deviation was ≤0.01mm.
● Localized Reinforcement Design: In concentrated stress areas such as the bearing seat and flange connection, the die-casting process increases the wall thickness (from 5mm to 8mm) and adds reinforcing ribs (8mm wide and 12mm high). This reduces local stress by 30%-40%, preventing fatigue damage after long-term use.
Clutch housings have stringent requirements for "connection accuracy, sealing performance, and dynamic strength," requiring targeted die-casting process design. The core technical features are as follows:
1. Precise Matching of Material and Process Parameters: Balancing Formability and Strength
● Aluminum Alloy Selection: Material selection is tailored to vehicle type and load.
● Passenger car clutch housings: Choose ADC12 (excellent fluidity, suitable for complex interface molding, low cost, suitable for low and medium torque applications);
● Commercial vehicle light/medium truck housings: Choose A380 (higher strength, tensile strength ≥280MPa, suitable for high torque applications, and improved impact resistance after T6 heat treatment).
● Key Process Parameter Control:
● Clamping Force: Passenger vehicle bodies use 800-1200T cold chamber die-casting machines, while commercial vehicle bodies use 1500-2000T die-casting machines (to avoid overflow at the parting surface and ensure flange surface flatness);
● Injection Speed: 4-6m/s during the filling phase (to quickly fill precision structures like bearing seats and locating holes and prevent material shortages); 0.8-1.2m/s during the holding phase (to reduce shrinkage and ensure density in the stress-bearing area);
● Mold Temperature: 190-230°C (ADC12), 210-250°C (A380). "Zone Temperature Control" (mold temperature 5-8°C higher in the flange area) is used with a mold temperature controller to prevent localized shrinkage cracks or dimensional deviations.
2. High Vacuum Die Casting: Solving Porosity and Sealing Challenges
● Vacuum System Design: To meet the "leakage-proof" requirements for clutch housings, a "multi-point vacuum extraction + cavity zone sealing" technology is employed. Four to six vacuum extraction holes are located in the mold corresponding to key sealing areas, such as the housing flange and bearing seat. Combined with the integrated vacuum valve, the cavity vacuum is controlled to ≤4 kPa, reducing air entrained during aluminum filling and maintaining an internal porosity of ≤2% (≤1% in stress-bearing areas such as the flange and bearing seat), thus preventing seal failure caused by porosity.
● Actual Results: After high vacuum die casting, the airtightness qualification rate of a passenger car clutch housing increased from 85% with traditional die casting to 99%. Subsequent repair welding and hole plugging were eliminated, reducing the unit cost by 12%.
3. Precision Interface Molding Optimization: Overcoming the Challenge of Docking Accuracy
● Mold Insert and Runner Design: For precision structures such as engine docking flanges and transmission spigots, a "high-strength alloy insert (HRC55-60) + latent gate" design is employed. The insert directly forms the flange and spigot, ensuring dimensional accuracy (spigot diameter tolerance ±0.02mm). The latent gate (Ø8mm diameter) is located in a non-stressed area to prevent gate residue from affecting the docking. Subsequent polishing is sufficient to meet assembly requirements.
● Bearing Seat Precision Control: The bearing seat utilizes a combined "die-casting preforming + CNC fine boring" process. During die-casting, inserts are used to ensure the initial aperture shape (tolerance ±0.05mm). Subsequently, CNC fine boring (tolerance ±0.005mm) ensures the bearing seat roundness is ≤0.003mm and coaxiality is ≤0.01mm (with the engine crankshaft axis), meeting the precise fit requirements of the clutch bearing and preventing abnormal bearing noise.
4. Intelligent Process Control and Post-Processing: Stable Batch Quality
● Real-time Parameter Monitoring: The MES system links the die-casting machine, vacuum valve, and mold temperature controller to collect real-time data on 13 key parameters, including injection force (±5% tolerance), molten aluminum temperature (670-690°C, ±5% tolerance), and vacuum level (≤4kPa). Automatically shut down and issue an alarm if deviations occur, preventing batch defects. (One factory has used this system to keep the batch defect rate below 0.3%).
● Integrated post-processing: After die-casting, the system integrates a T5/T6 heat treatment (ADC12-T5 aging increases strength by 20%, A380-T6 aging increases strength by 30%), robotic deburring (for parting surfaces and gate residues, with an accuracy of ±0.05mm), airtightness testing (0.6MPa pressure hold for 5 minutes), and three-dimensional coordinate measurement (full inspection of key dimensions). This completes the "die-casting - molding - inspection" one-stop production process, reducing the single-piece production cycle from 40 minutes with traditional processes to 18 minutes.
● Passenger car manual transmission clutch housing (a domestic automaker): Made of ADC12, using a 1000T die-casting machine with a high vacuum process. Integrated with the engine flange, transmission flange, and bearing seat. The blank weighs 5.6kg, with flange surface flatness ≤0.08mm and airtightness leakage ≤1.5mL/24h. Annual production capacity is 1 million units, with a 99.2% pass rate.
● Commercial vehicle and light truck AMT clutch housing (a joint venture automaker): Made of A380-T6, formed using an 1800T die-casting machine. Wall thickness is 7mm, with a tensile strength of ≥300MPa. Tested with no deformation after 120,000 torque cycles (maximum 1000N·m), it is suitable for heavy-duty operating conditions (daily mileage exceeding 300km).
