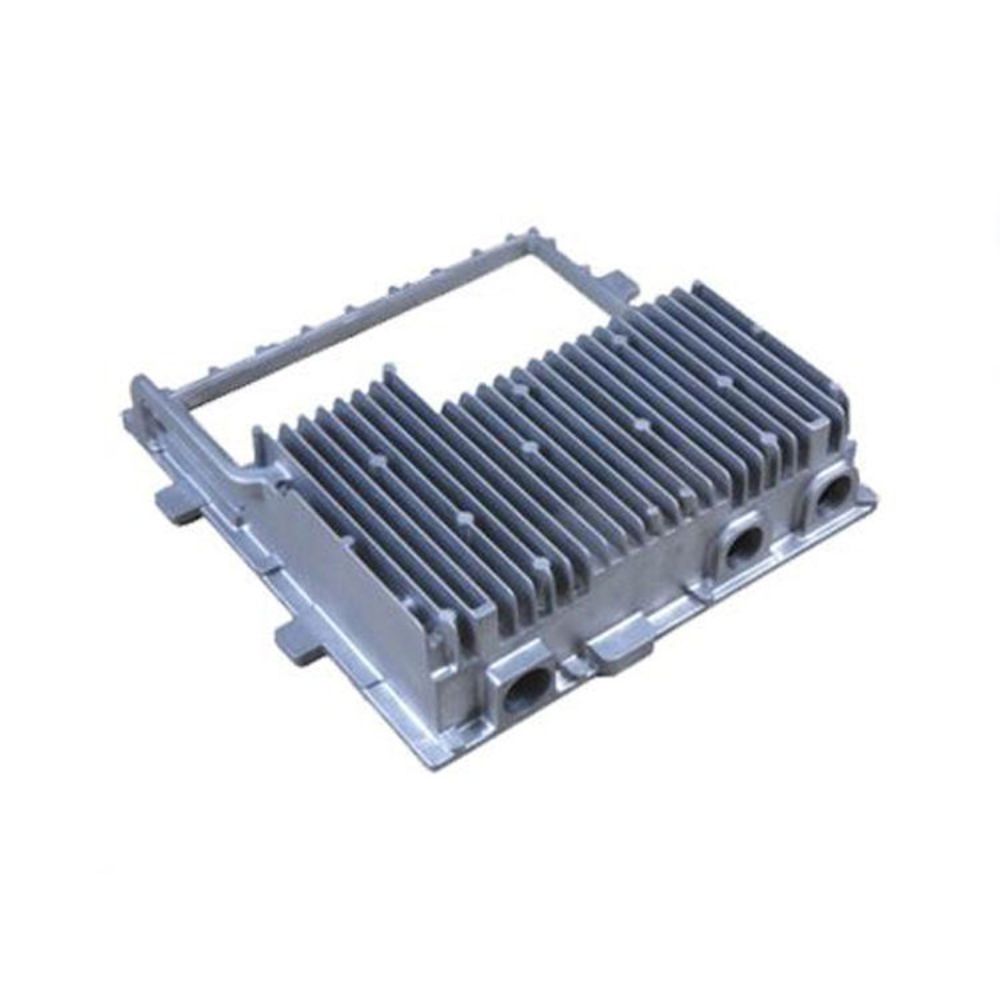

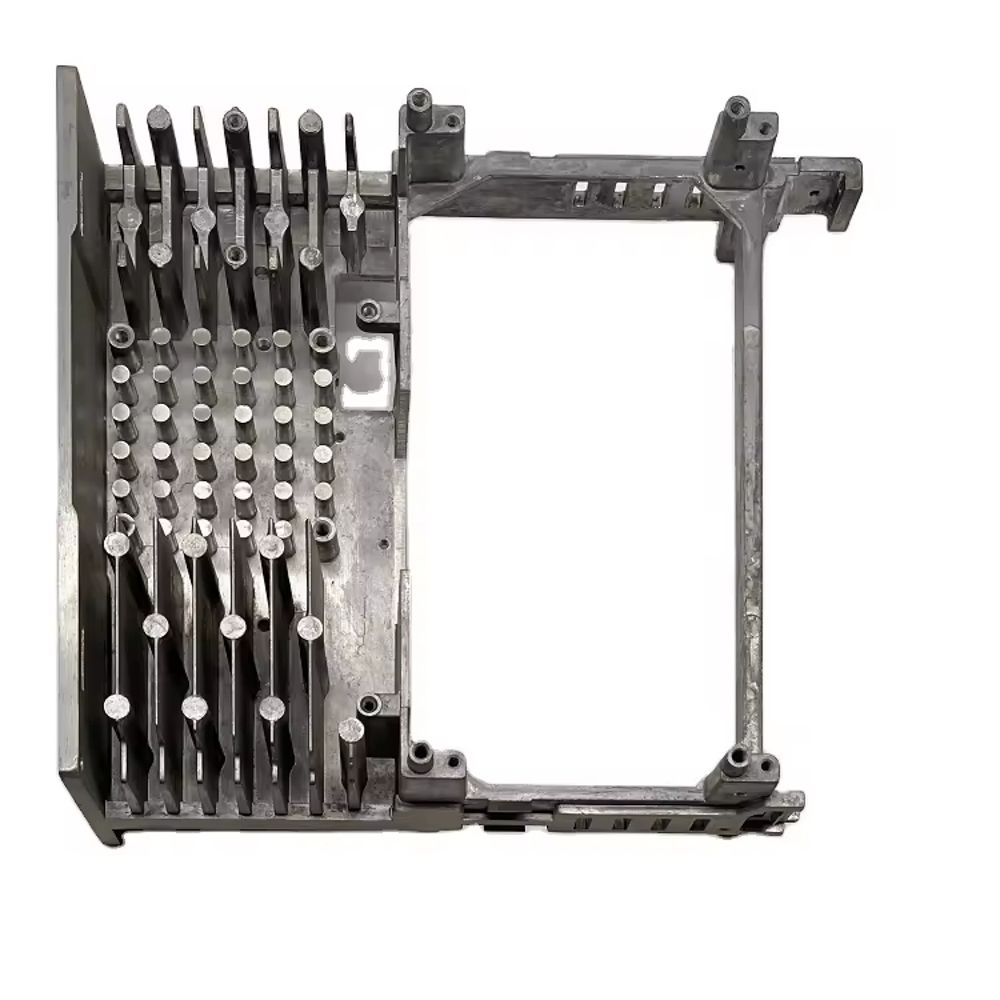

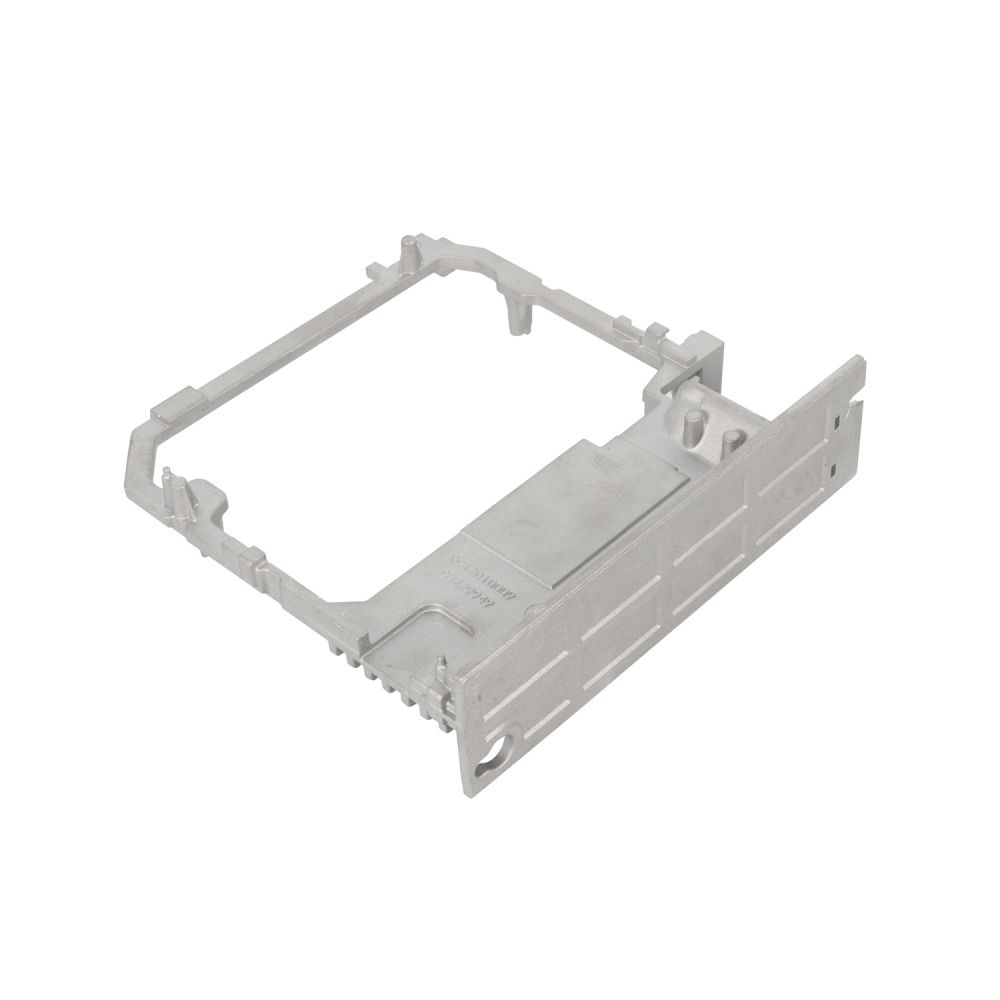

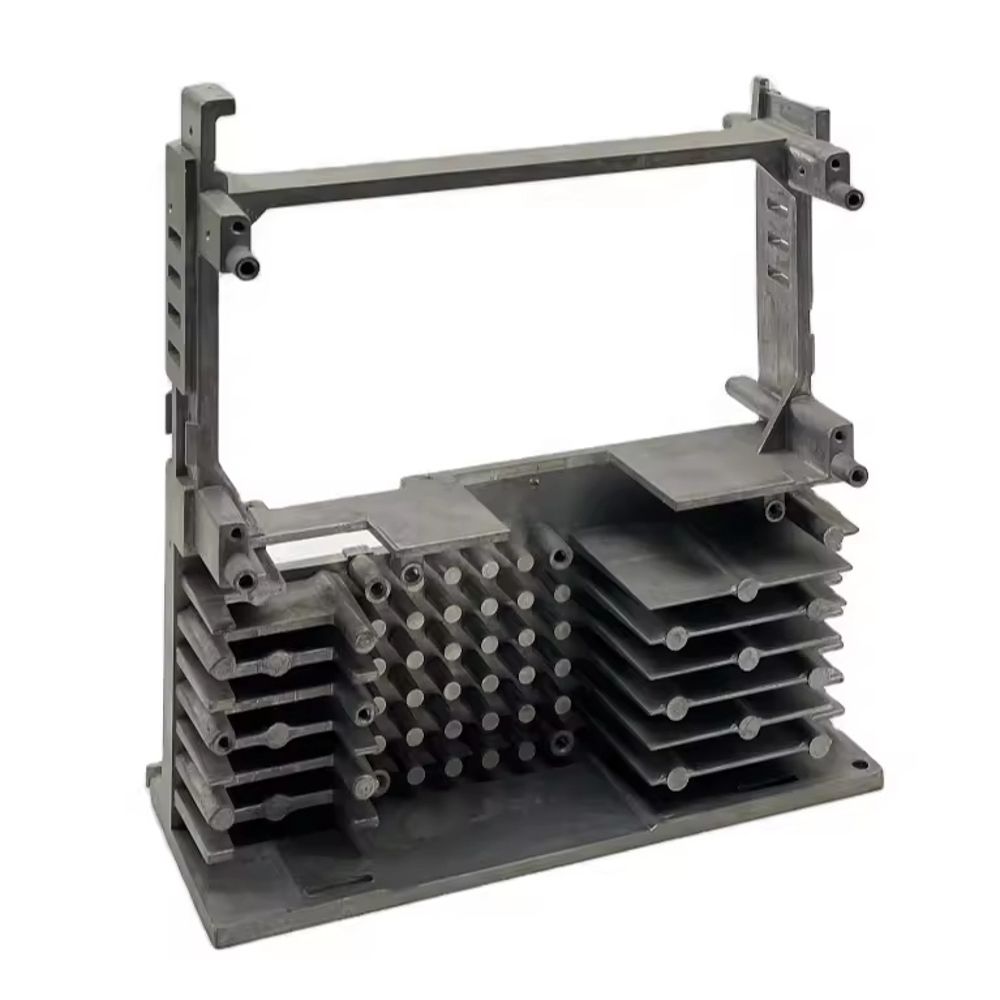

Ⅰ. Die-cast Servo Drive Heat Sinks: A Complete Analysis of Process Innovation and Technological Advantages
In the field of industrial automation, servo drives serve as the core of precision control. Their heat dissipation performance directly determines the equipment's response speed, control accuracy, and service life. As servo systems evolve toward higher power density and smaller dimensions, traditional heat sinks are no longer able to meet these cooling requirements. Die-cast servo drive heat sinks, through the innovative integration of materials science and manufacturing processes, have become a key solution to this dilemma. This article will comprehensively analyze the core competitiveness of die-cast servo drive heat sinks from three perspectives: process advantages, technical features, and engineering value.
Ⅱ. The Synergistic Advantages of Process and Materials
The die-casting process has brought revolutionary structural possibilities to servo drive heat sinks. Compared to traditional aluminum extrusion, die-casting technology uses high pressure to inject molten aluminum alloy into a precision mold cavity. This allows for the simultaneous formation of three-dimensional structures with complex internal flow channels and dense fins. These structures can achieve tooth-to-height ratios exceeding 10:1, a level of structural freedom difficult to achieve with extrusion. This process characteristic enables the heat sink to maximize heat dissipation area within a limited space. For example, a certain servo drive model using the die-casting process achieves a 40% increase in heat dissipation area compared to an extruded design within the same volume, effectively addressing the heat dissipation bottleneck caused by increased power density.
In terms of material selection, die-cast servo drive heat sinks primarily utilize aluminum alloys such as ADC12 and AlSi10Mg. ADC12 boasts a thermal conductivity of 96-120 W/(m・K), while high-end products using aircraft-grade AA1070 aluminum alloy offer even better thermal conductivity, reaching approximately 200 W/(m・K). To balance thermal conductivity and corrosion resistance, modern die-cast heat sinks often utilize an aluminum-steel composite structure, with 2.0-2.5mm low-carbon cold-rolled steel or stainless steel tubes embedded within. This prevents the water medium from directly contacting the aluminum. This preserves aluminum's efficient thermal conductivity while addressing water quality issues, making it particularly suitable for China's complex industrial water environment.
Structural optimization is another core advantage of die-cast heat sinks. A multi-channel flow design optimized through CFD (computational fluid dynamics) simulation ensures optimal coupling between the heat sink fins and the air flow field. Compared to traditional single-row straight-fin designs, the staggered fin structure achieved through die-casting enhances airflow turbulence by over 30%, significantly improving convective heat transfer efficiency. Furthermore, the one-piece molding process eliminates the thermal resistance introduced by weld seams, increasing heat transfer efficiency from the driver baseplate to the heat sink fins by 15-20%. This optimized overall heat transfer path is crucial for transient heat dissipation in servo drives.
Ⅲ. Three-Dimensional Breakthroughs in Technical Features
In terms of spatial dimensions, the die-cast heat sink achieves a perfect balance between lightweight and high density. Aluminum itself has a density of only 2.7g/cm³. Combined with the thin-wall design achieved through die-casting (wall thickness can be controlled to 1.5-2mm), the heat sink is 60-70% lighter than a comparable steel counterpart. The die-cast heat sink for a 400W servo drive weighs only 580g, 75% less than traditional cast iron heat sinks. This significantly reduces the load-bearing requirements for equipment installation, making it particularly suitable for weight-sensitive applications such as robotic joints and precision machine tools. This lightweight advantage also improves installation convenience, allowing a single person to complete the assembly of the servo system's heat sink module, increasing installation efficiency by 30-40%.
In terms of reliability, the die-cast heat sink provides a full lifecycle protection system. Formed using a 1200T-2600T high-pressure die-casting machine, the heat sink's structural density far exceeds that of welded or assembled products. Testing has shown that its test pressure can reach 1.8MPa and its operating pressure remains stable above 1.2MPa, fully meeting the pressure-resistant requirements of industrial environments. The surface treatment further enhances reliability. Electrostatically spraying epoxy resin powder and curing at 190-200°C creates a dense protective film on the heat sink surface, which has been shown to withstand over 500 hours of salt spray testing without rust. More importantly, the die-cast structure improves heat sink temperature uniformity by 25%, avoiding local hot spots that accelerate aging of electronic components and significantly extending the servo drive's MTBF (mean time between failures).
The potential for intelligent integration is a hidden technical advantage of die-cast heat sinks. The high-precision die-casting process achieves dimensional tolerances of ±0.1mm, providing a structural foundation for the integrated installation of temperature sensors and flow monitoring components. In high-end medical equipment servo systems, NTC temperature probes are now directly die-casted into the heat sink, enabling real-time temperature feedback and dynamic heat dissipation control. This integrated "sensing and cooling" design improves the servo drive's thermal response speed to under 50ms, providing a more stable operating environment for precision control. Furthermore, the die-cast surface roughness accuracy of Ra1.6-3.2μm provides a consistent benchmark for subsequent calibration of heat dissipation performance parameters.
Ⅳ. Multi-dimensional Transformation of Engineering Value
The die-casting process offers significant production efficiency advantages for servo drive heat sinks. A single die-casting cycle takes only seconds to minutes. Combined with an automated production line, this approach enables large-scale continuous production of heat sinks, increasing production efficiency by over five times compared to traditional machining methods. This efficient production model not only reduces unit manufacturing costs but, more importantly, ensures product consistency. Through X-ray inspection and Zeiss CMM coordinate measurement, critical dimensional consistency of each batch of heat sinks exceeds 98%, effectively eliminating fluctuations in heat dissipation performance due to individual differences. For servo drive manufacturers, this stability means a simplified heat dissipation matching testing process and accelerated time-to-market.
In terms of energy efficiency, die-cast heat sinks directly reduce servo system energy loss by improving heat dissipation efficiency. Experimental data shows that servo drives equipped with high-efficiency die-cast heat sinks can reduce operating temperatures by 12-15°C under rated load, resulting in a corresponding reduction in power device losses by approximately 8%. Based on an average annual operating time of 8,000 hours for industrial servo systems, this results in energy savings of approximately 120 kWh per drive. Furthermore, the high thermal conductivity of die-cast heat sinks enables servo drives to operate stably at higher switching frequencies. Combined with advanced vector control algorithms, this can improve the overall energy efficiency of motor systems by 2-3 percentage points. This energy saving can generate significant economic value in large-scale automated production lines.
The technical advantage of die-cast heat sinks lies in their adaptability to specific scenarios. In the medical device sector, die-cast heat sinks made of AlSi12 aluminum alloy have become standard equipment for precision surgical robot servo systems due to their excellent biocompatibility and heat dissipation stability. In maritime applications, chromate-treated die-cast heat sinks resist corrosion in high-humidity salt spray environments. In CNC machine tools, the die-cast heat sink's seismic resistance (withstanding random vibrations of 10-2000Hz) ensures reliable operation of servo drive systems in harsh operating conditions such as cutting. Particularly noteworthy is the die-cast heat sink's modular design, allowing for flexible adjustment of the heat dissipation area to suit servo drive power levels. By increasing or decreasing the number of fin groups, heat dissipation capacity can be adjusted in a step-by-step manner. This flexibility significantly reduces the customization cost of servo systems.
The technological evolution of die-cast servo drive heat sinks reflects the tremendous innovations in the micro-sectors of manufacturing. From the precision structures shaped by 1600T die-casting machines under pressure of tens of thousands of tons, to the molecular-level thermal conductivity optimization of aircraft-grade aluminum alloys, to the digital twinning of flow fields through CFD simulation, each technological breakthrough creates industrial value within millimeter-scale dimensions. This pursuit of perfection at the microscopic level is the core driving force behind the continuous advancement of the high-end equipment manufacturing industry. As servo technology advances toward nanometer-level control precision, die-cast heat sinks will continue to achieve breakthroughs in material innovation (such as graphene-composite aluminum-based materials), structural biomimetic design (such as leaf-vein-like flow channel design), and intelligent integration (such as self-sensing cooling), providing a solid thermal management foundation for the future development of industrial automation.
