In garden maintenance operations, the durability, precision, and lightweight nature of tool accessories directly impact efficiency and user experience. Due to its unique technical characteristics, die-casting has become a core manufacturing solution for high-end garden tool accessories. Compared to traditional casting and forging processes, die-casting offers significant advantages in complex shape formation, material utilization, and mass production stability, making it particularly well-suited for the demanding environments of long-term outdoor operation for garden tools.
The die-casting process uses high pressure and high speed to press molten metal into a precision mold cavity, where it solidifies under pressure. This process creates core competitiveness far exceeding traditional methods. Compared to sand casting, die-cast parts can achieve dimensional accuracy levels of IT11-IT13 and surface roughness as low as Ra1.6-6.3μm. They can be assembled directly with virtually no subsequent machining, significantly reducing the production cycle for garden tool accessories. Shandong Hongcan's production data shows that after adopting integrated die-casting technology, the production time for similar parts has been reduced from 140 minutes using traditional methods to 155 seconds, an efficiency improvement of nearly 98%. This efficiency advantage is particularly significant in large-scale garden tool production.
Another significant advantage of die-casting is improved material utilization. Traditional casting requires feed risers, resulting in metal utilization rates typically below 70%. However, die-casting eliminates the need for risers through crystallization under pressure, resulting in material utilization rates as high as 90-98%. For commonly used materials for garden tools, such as aluminum alloys, this not only reduces raw material costs but also energy consumption during production. Weiqiao Group's direct aluminum supply model further reduces energy consumption per ton of aluminum produced by over 90%, perfectly aligning with the green manufacturing trend in the garden tool industry.
In terms of mass production stability, die-casting molds have a lifespan of tens to hundreds of thousands of cycles, far exceeding the disposable molds of sand casting. This stability ensures dimensional consistency across each batch of garden tool parts, significantly improving component interchangeability. For garden tools requiring frequent replacement of wearing parts, the standardized nature of die-cast accessories greatly simplifies repair and replacement processes, reducing maintenance costs.

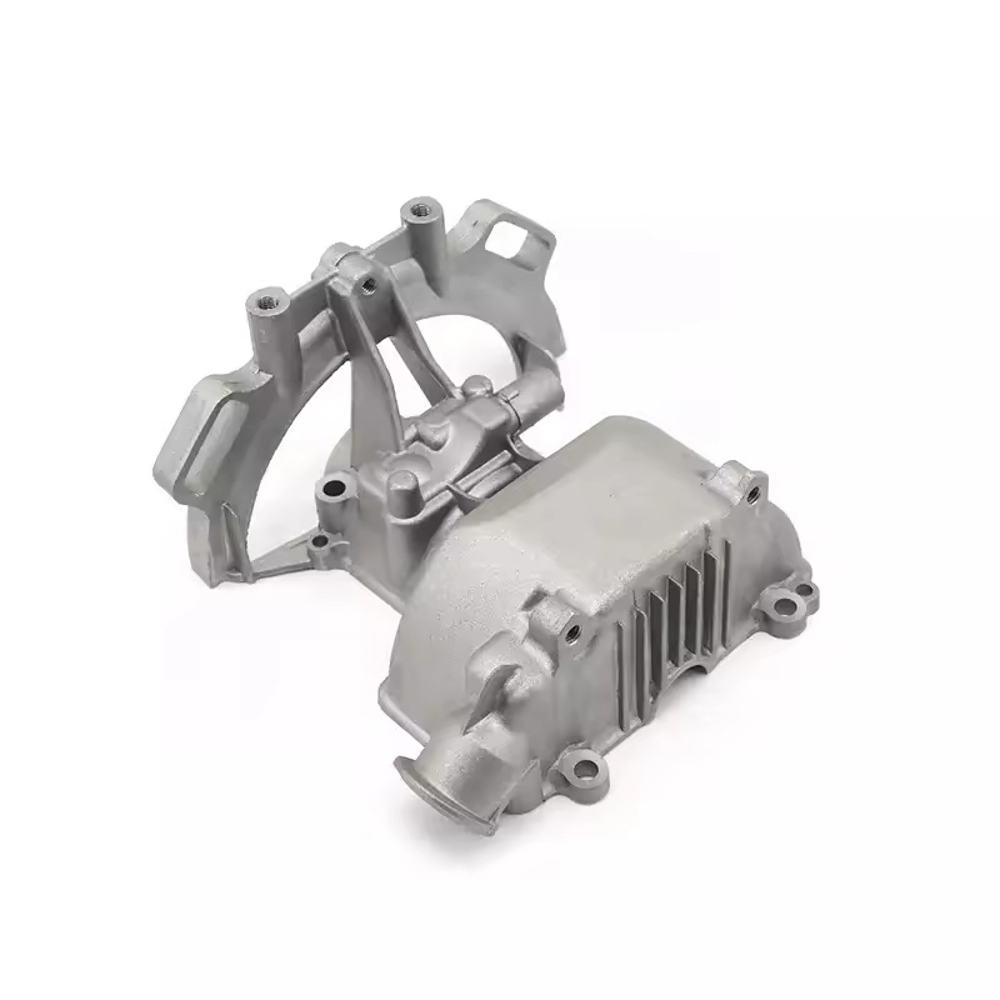

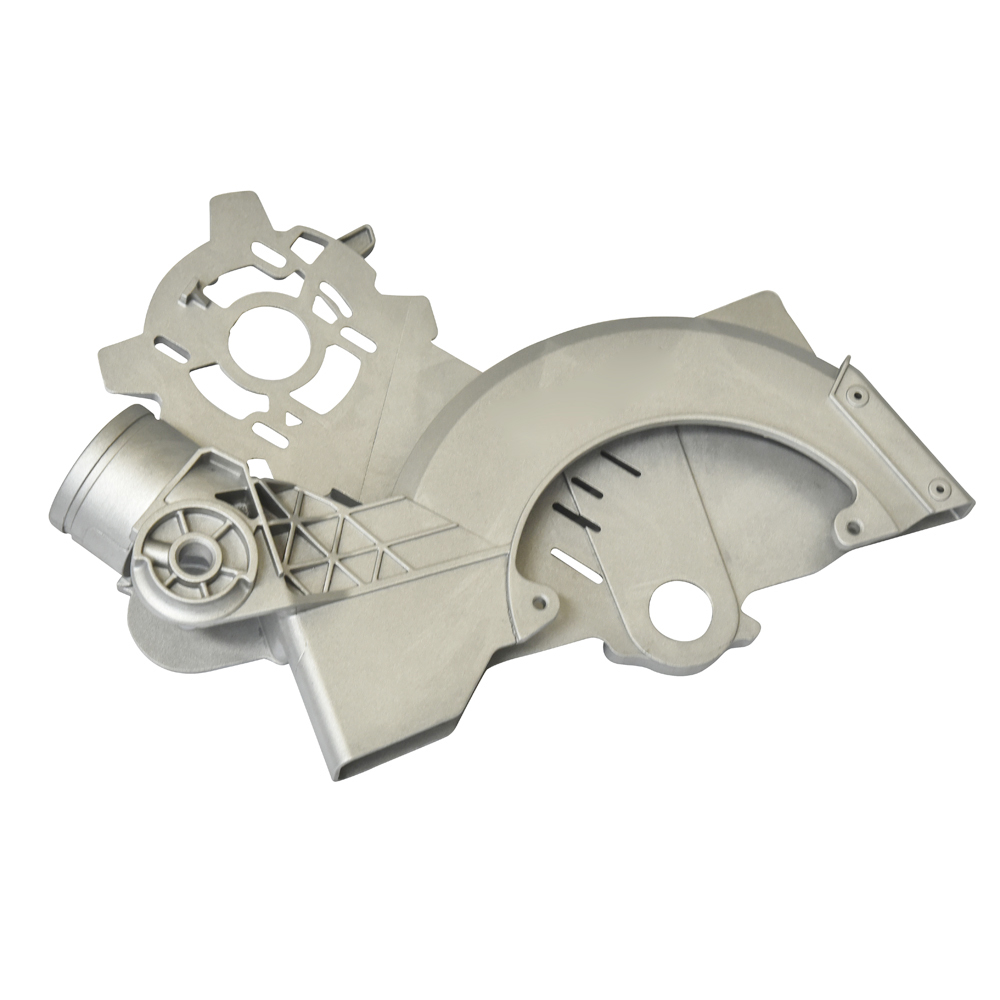

The perfect match between die-casting technology and the needs of garden tools is largely due to the precise application of material properties. Aluminum alloy and zinc alloy, as mainstream die-casting materials, each play an irreplaceable role in different gardening scenarios. Aluminum alloy die-castings, with their low density (only one-third that of steel) and high specific strength, are ideal for handheld garden tools such as the drive housings of pruning machines and the operating handles of hedge trimmers. They significantly reduce tool weight and reduce fatigue during prolonged operation.
For components exposed to water, such as irrigation systems, zinc alloy excels due to its excellent corrosion resistance. The popular zinc alloy rocker sprinkler heads on Taobao utilize a special die-casting process to demonstrate excellent corrosion resistance in 3.5% NaCl solution testing, ensuring long-term stable operation in chlorinated irrigation water and humid environments. These accessories must not only withstand the impact of hydraulic pressure but also resist corrosion from fertilizers and chemicals. The high density and uniform structure of zinc alloys provide reliable protection.

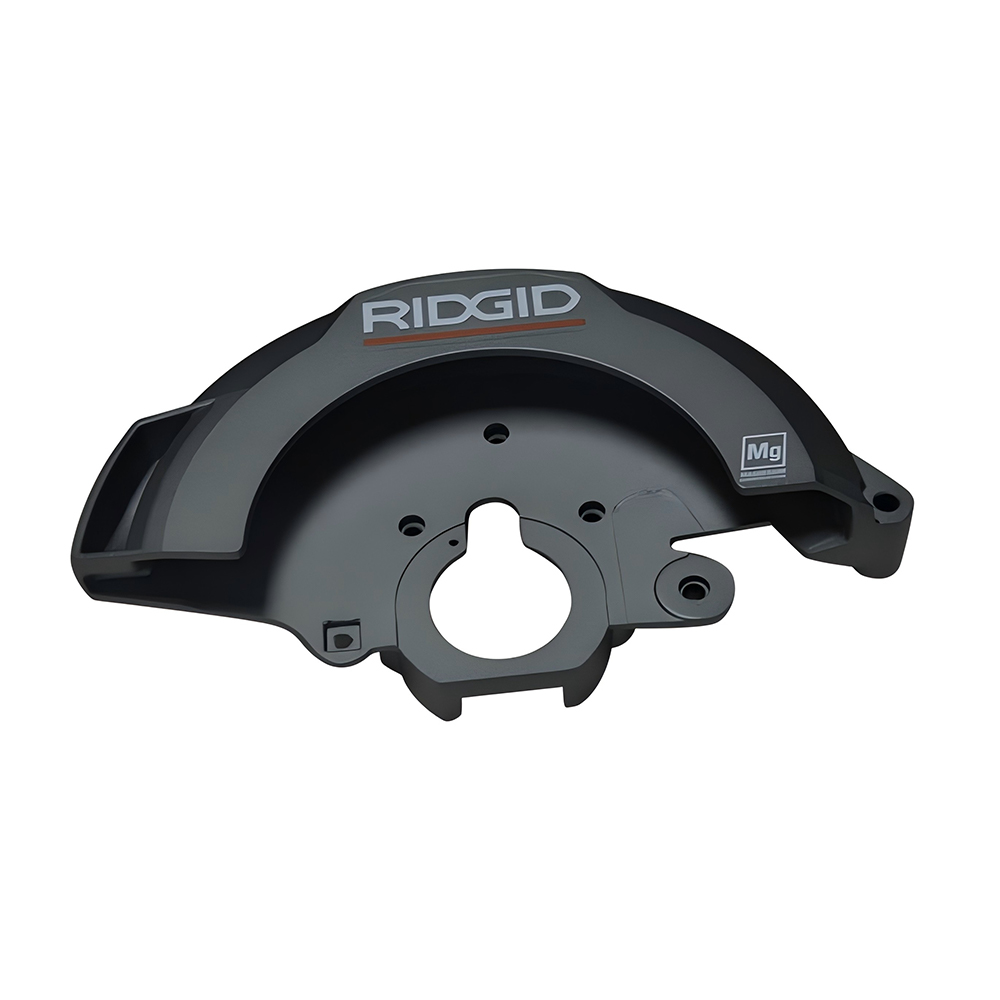

The application of new magnesium-aluminum alloys has further expanded the performance boundaries of die-cast accessories. Test data shows that die-cast Mg-9Al-1Zn-0.5Ce alloy parts produced using a pouring temperature of 650°C and an injection speed of 3m/s achieve a tensile strength of 268MPa and a yield strength of 177MPa, respectively, representing increases of 13.08% and 23.78% compared to traditional processes. This high-strength, lightweight alloy is particularly suitable for the transmission components of garden tools, achieving further weight reduction while maintaining structural strength.
The superior performance of die-cast garden tool accessories stems from precise control of process parameters and continuous innovation. Pouring temperature and injection speed are key parameters that directly influence the mechanical properties and corrosion resistance of the accessories. Experiments show that increasing the pouring temperature from 620°C to 650°C shifts the corrosion potential of die-cast parts by 43mV, significantly improving corrosion resistance. Optimizing the injection speed from 1m/s to 3m/s increases the yield strength by 16.45%. This strength improvement is crucial for resisting the impact loads experienced during gardening operations.
The application of vacuum die-casting technology effectively addresses the problem of porosity commonly associated with traditional die-casting. By removing air from the mold cavity, it significantly reduces internal defects in the parts, significantly improving the surface finish and mechanical properties of the die-cast parts. This technology is particularly suitable for exterior parts and seals of garden tools, such as irrigation valve bodies and decorative covers for trimmers. It ensures the sealing of the parts and enhances the adhesion of surface coatings.
Digital mold design is another key feature of die-casting technology. Using CAD/CAM technology for mold design enables precise molding of complex internal structures. For example, the water flow channels of irrigation sprinklers and the gear mechanisms of transmission components can all be die-cast in a single step, eliminating the need for subsequent assembly. This integrated molding capability not only simplifies the production process but also eliminates performance losses caused by assembly gaps, improving the transmission efficiency of garden tools by 15-20%.
Integrated die-casting technology offers unique advantages for large garden machinery parts. Traditionally, large components require 700-800 weld points, but integrated die-casting can reduce these to fewer than 50. This not only reduces structural stress concentration but also significantly improves the overall rigidity of the part. This technology is widely used in the chassis of garden tractors and the support structures of large irrigation equipment, significantly extending the tool life.
The die-casting process, through the deep integration of materials, processes, and design, brings comprehensive improvements in the efficiency, precision, and durability of garden tool parts. From lightweight handheld tool designs to the corrosion resistance requirements of irrigation systems, from cost control in mass production to the one-step molding of complex structures, die-casting technology is continuously driving the development of garden tools towards greater efficiency, reliability, and environmental friendliness. With the continuous application of new alloy materials and advanced die-casting technology, die-cast garden tool parts are poised to play an even more important role in the mechanization of gardening.
