I. Core Advantages of Die-Cast Light Housing
1. Strong Structural Integrity and High Reliability
The integrated die-casting process eliminates the problems of loose screws and cracking seams common in traditional spliced luminaires. The housing has no gaps, significantly improving vibration and impact resistance. For example, the ADC12 aluminum alloy die-cast housing has a tensile strength of ≥220 MPa, 25% higher than the impact resistance of stamped and spliced structures, making it suitable for complex environments such as outdoor and industrial mining.
2. Outstanding Heat Dissipation Efficiency, Extending Light Source Life
Die-cast materials (such as aluminum alloy) have a thermal conductivity of ≥110 W/(m·K), and integrated heat sink fins can be directly molded into the mold, eliminating the need for additional heat sink assembly. This reduces the junction temperature of the lamp by 20-30°C. For example, in a 100W LED high bay light, a die-cast structure can extend the life of the light source by over 50% compared to a plastic + metal heat sink structure. 1. Excellent mass production and manageable costs.
Die-casting molds have a lifespan of over 100,000 cycles, and a single-piece production cycle of just 3-5 minutes, making them suitable for large-scale mass production. Furthermore, integrated molding reduces assembly steps by over 80%, reducing labor and material waste, and the unit cost is 15%-20% lower than precision-cast lamps.
3. Strong weather resistance and adaptability to various scenarios
Die-cast housings can undergo surface treatments such as anodizing and plastic spraying, achieving a salt spray resistance rating of over 1,000 hours (equivalent to 5 years of outdoor use without rust). They also easily achieve IP65/IP67 water and dust resistance, making them suitable for harsh environments such as seaside areas, tunnels, and high-temperature workshops.
II. Die-cast Light Housing Product Features
1. High Design Freedom and Flexible Styling
The die-casting process enables the integrated molding of complex structures, such as custom-shaped cooling fins, built-in wire guides, and concealed mounting holes. This breaks the rigid, boxy design limitations of traditional lamps. For example, outdoor landscape lamps can be die-cast with housings that mimic natural textures, achieving both aesthetics and functionality. 1. Lightweight and Easy Installation.

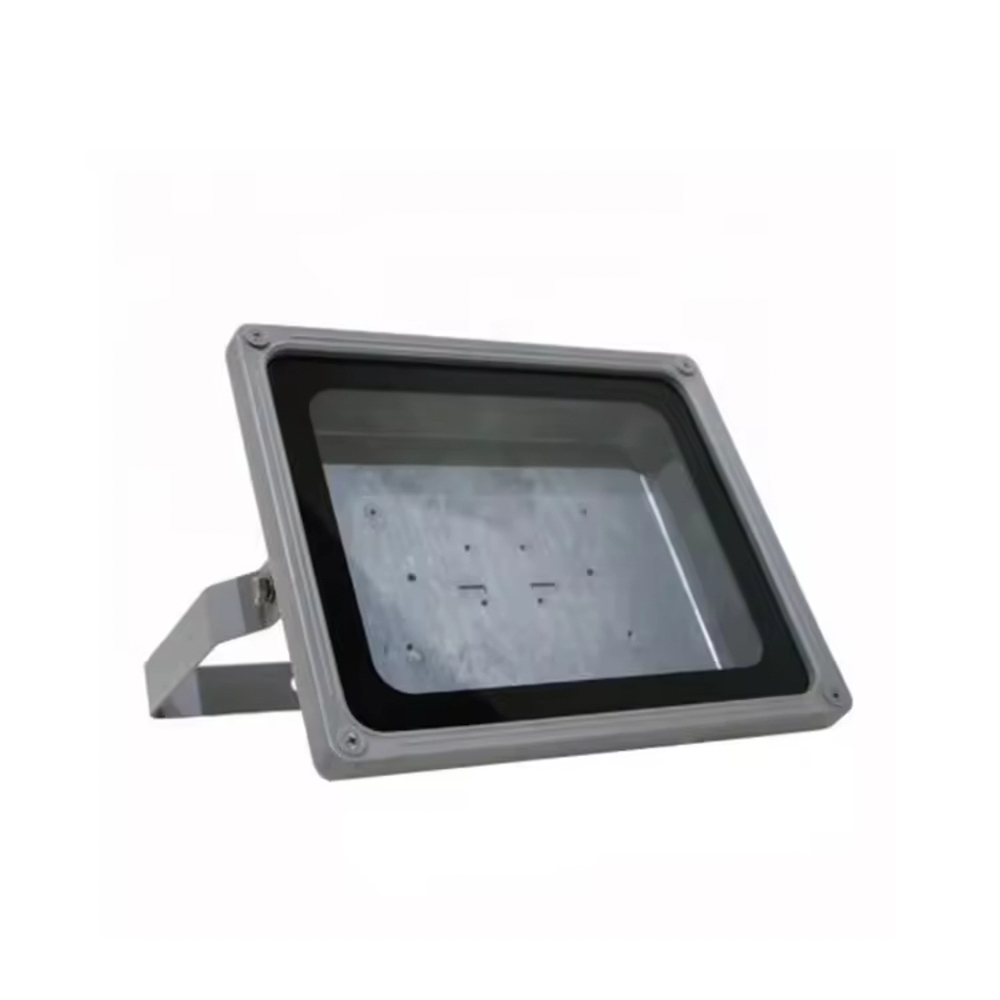

The die-cast aluminum alloy housing has a density of only 2.7g/cm³, making it 60% lighter than cast iron lamps of the same strength. A single 50W outdoor floodlight weighs less than 3kg, reducing the load on the mounting bracket and minimizing the difficulty and safety risks of high-altitude installation.
2. Environmentally Friendly and Recyclable, In line with Green Trends
The main body material is aluminum alloy, with a recycling rate of over 95%, eliminating the aging and pollution issues associated with plastic housings. The die-casting process eliminates cutting waste (waste can be directly recycled), reducing material waste by 30% compared to machining, thus meeting environmentally friendly production requirements.
III. Key Technical Features of Die-Cast Light Housing
1. Precisely Match Material Selection to Requirements
● General Applications: ADC12 aluminum alloy (excellent fluidity and formability), suitable for most indoor and outdoor lamps;
● Highly Corrosion-Resistant Applications (e.g., coastal locations): A380 aluminum alloy (low copper content, 30% improved salt spray resistance);
● High Thermal Conductivity Applications (e.g., high-power floodlights): 6061 aluminum alloy (thermal conductivity of 155W/(m·K), requires T6 heat treatment).
2. High-Precision Mold and Molding Control
● The mold is made of H13 hot-work die steel and precision-milled by a CNC machining center. Dimensional tolerances are controlled within ±0.05mm, ensuring batch-to-batch consistency.
● Strictly controlled molding parameters: aluminum alloy melting temperature 700-720°C, clamping force 500-2000T (adjusted according to product size), injection speed 3-5m/s, minimizing casting porosity (porosity ≤ 1%) to ensure heat dissipation and strength.
3. Integrated Heat Dissipation Structure Design Technology

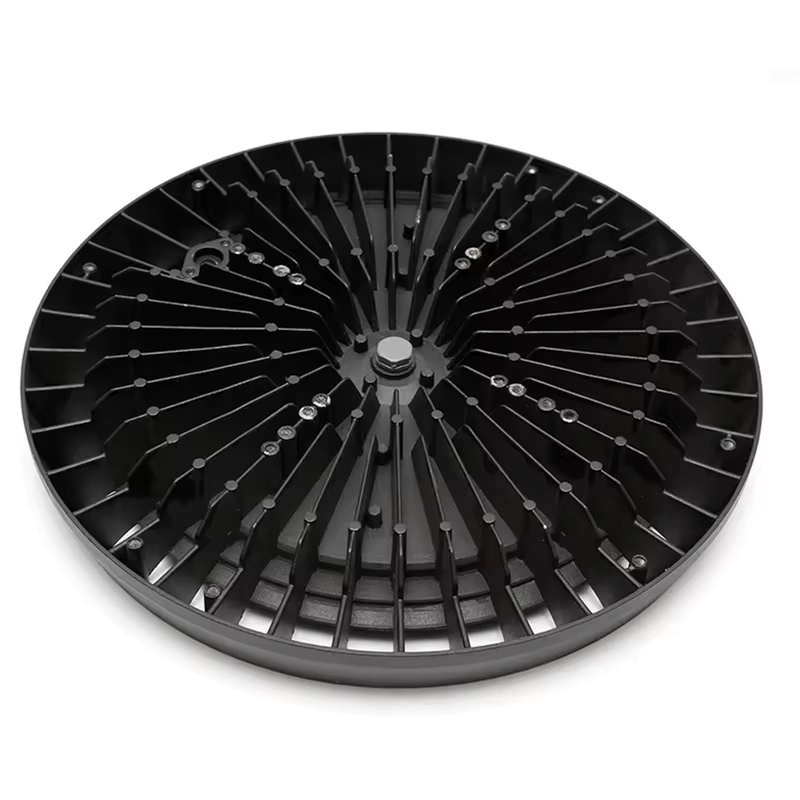

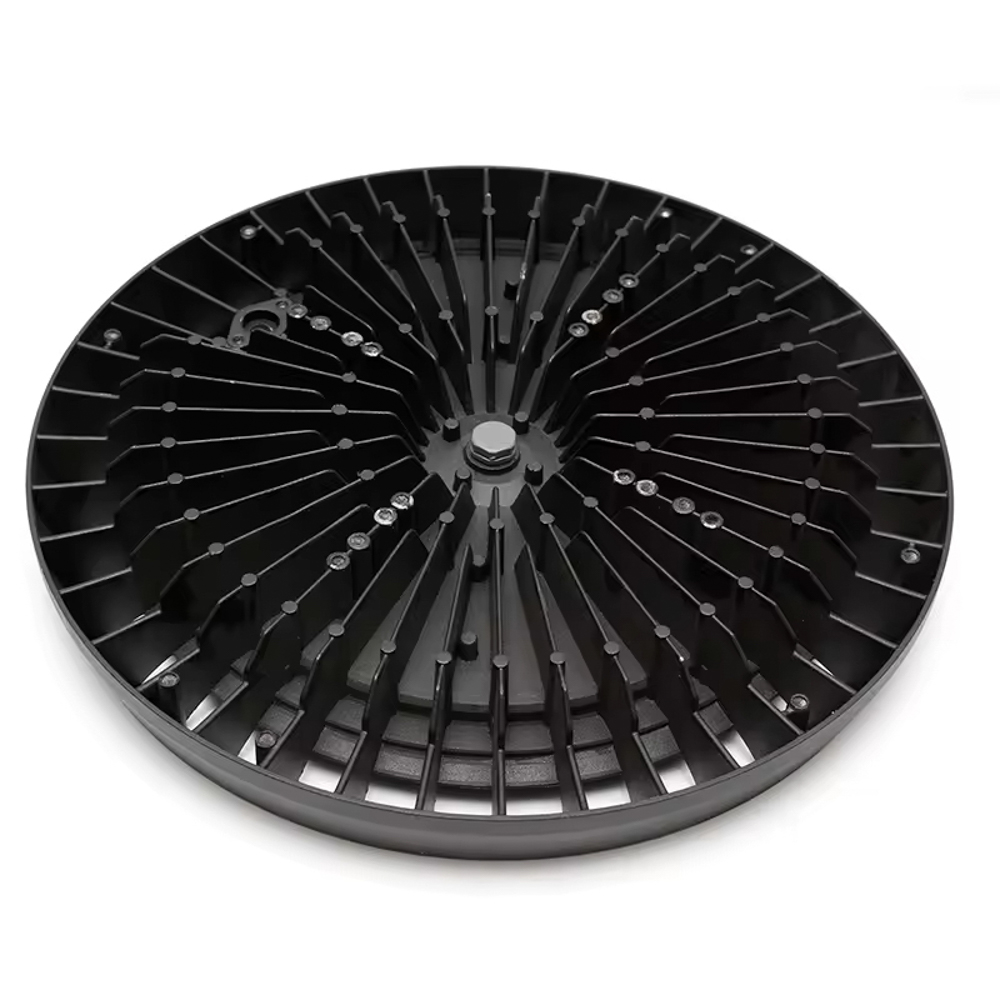

The heat sink fin layout is optimized through CFD (computational fluid dynamics) simulation. Fin height and spacing are matched to the lamp power (e.g., a 200W lamp has fin height ≥ 30mm and spacing ≥ 8mm). This creates a "housing-as-heat sink" design, eliminating the need for additional fans for cooling and reducing failure rates.
4. Upgraded Sealing and Protection Technology
The die-cast housing's mating surfaces are precision milled flat (flatness ≤ 0.1mm). A silicone seal and thread locker are used for dual sealing, eliminating the risk of water leakage associated with traditional splicing. Select high-end products utilize a die-casting and ultrasonic welding process, achieving a waterproof rating of up to IP68, suitable for short-term underwater use.
