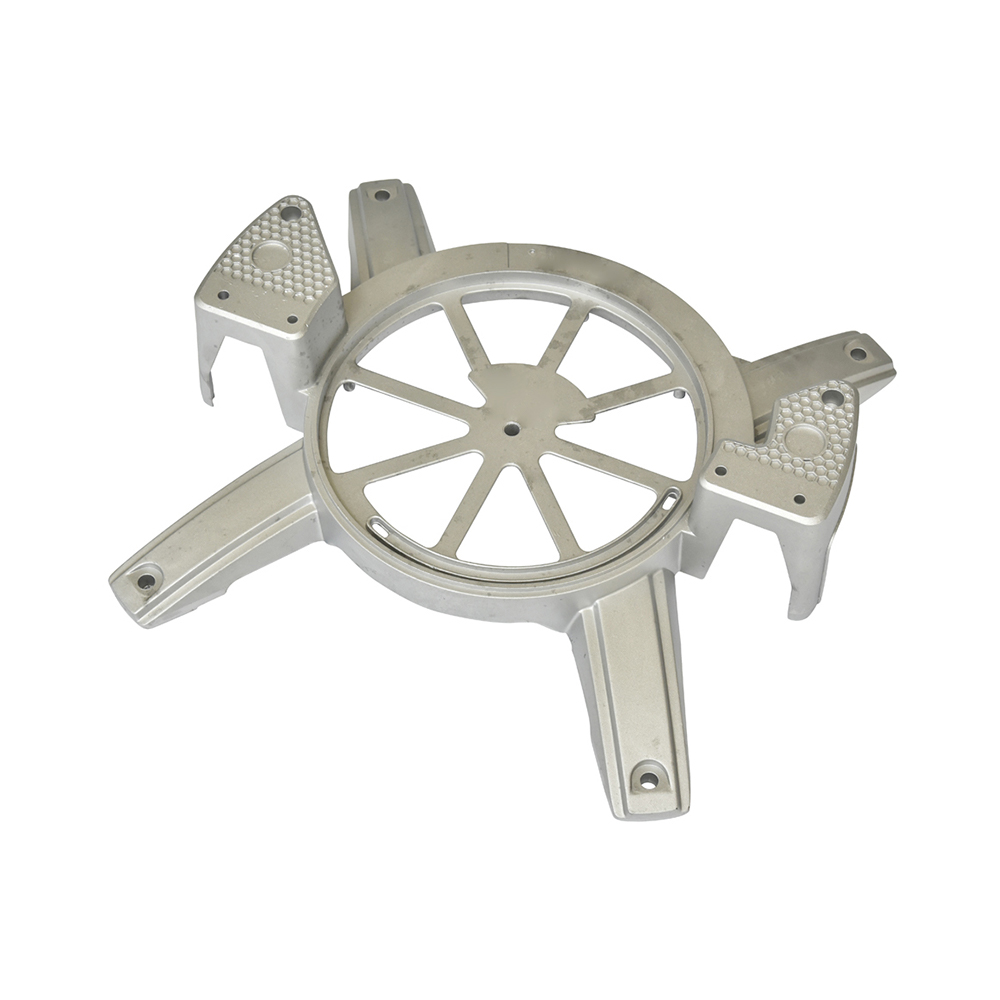

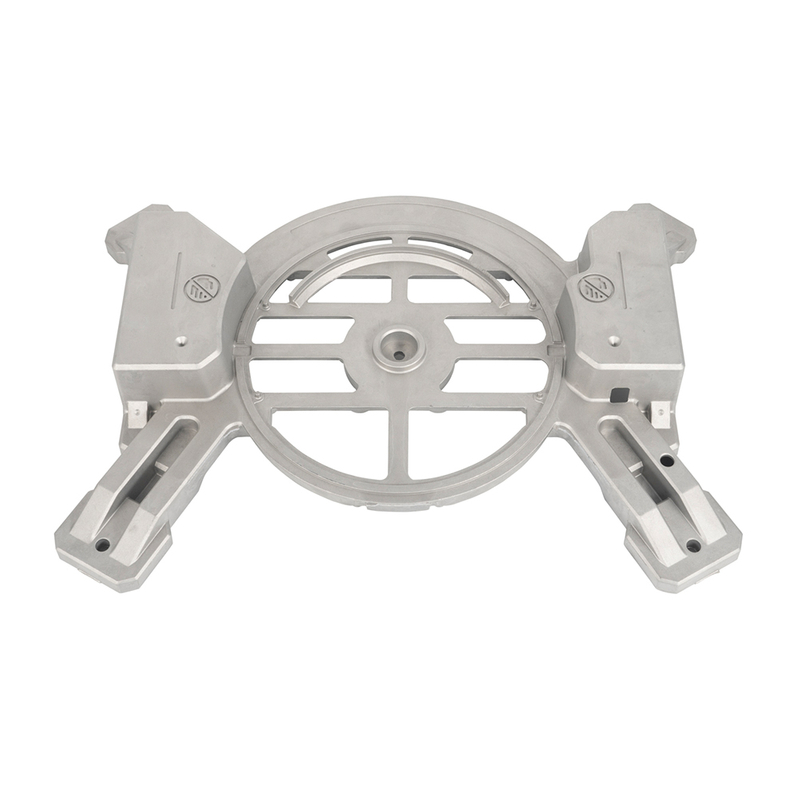

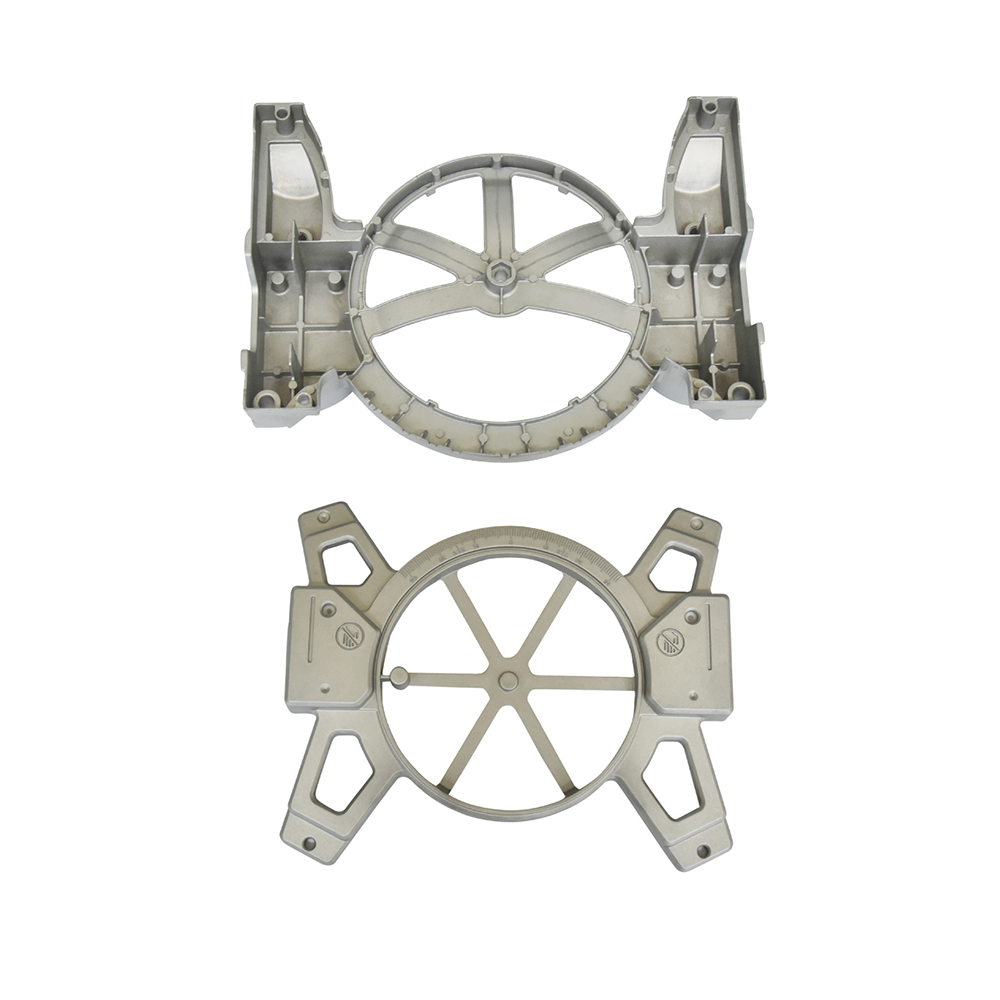

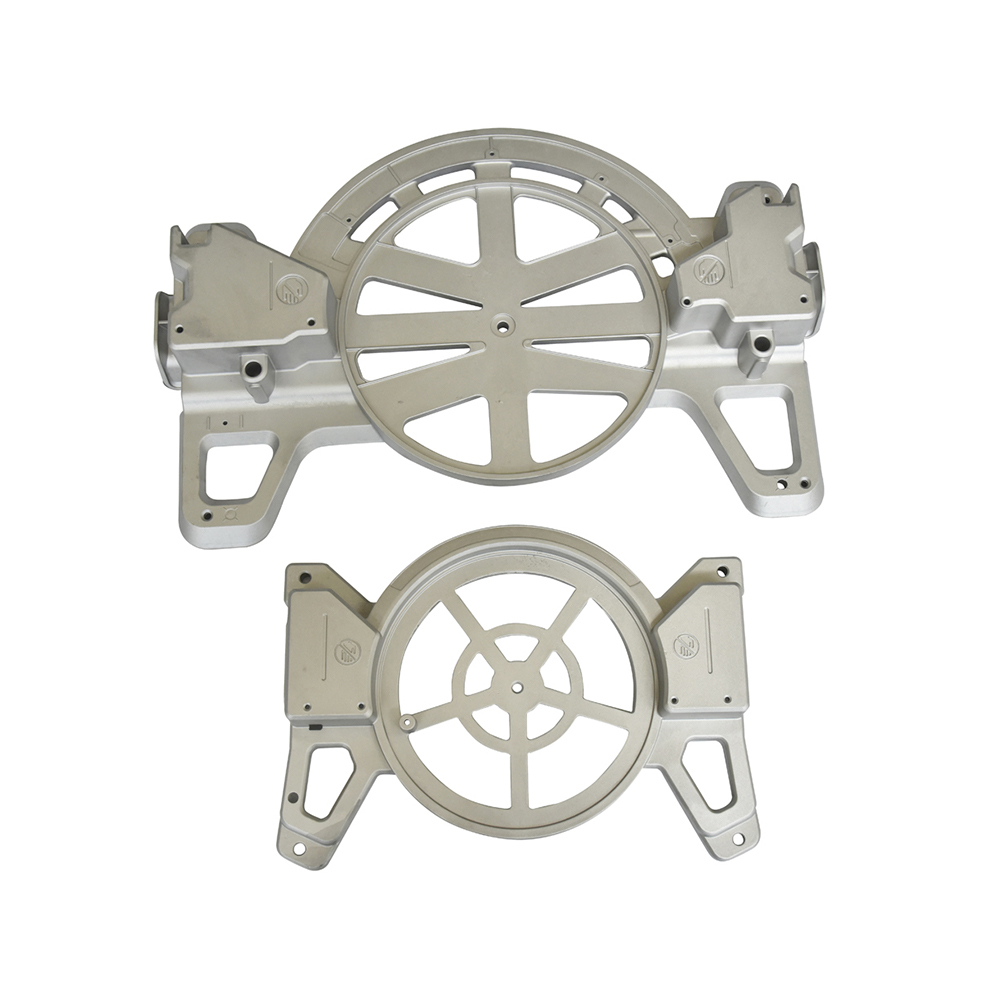

In the aluminum processing industry, the cutting accuracy and stability of an aluminum saw machine directly determine product quality. As the foundational support component of the entire machine, the performance of the base is particularly critical. Die-casting, with its unique material properties and manufacturing advantages, has become the preferred solution for high-end aluminum saw machine bases. This article will comprehensively analyze the core competitiveness of die-cast aluminum saw machine bases from the perspectives of advantages, features, and technical features.
The most significant advantage of die-cast aluminum saw machine bases lies in their high-precision, integrated molding capabilities. Using a high-pressure die-casting process (with injection pressures of 10-150 MPa), molten aluminum alloy (typically ADC12 or A380 grades) is injected at high speed into a precision mold cavity, resulting in a base structure with dimensional accuracy reaching IT12 to IT11 levels and a surface roughness as low as 0.8 microns. This structure meets assembly requirements without the need for extensive post-processing. This precision molding capability enables the base's mounting surface flatness to within 0.05mm/m, providing essential assurance for perpendicularity between the saw blade and the worktable.
In terms of structural performance, the die-cast base achieves a perfect balance of strength and lightweight. After quenching and artificial aging, the ADC12 aluminum alloy achieves a tensile strength exceeding 230MPa, while maintaining a density of only 2.7g/cm³. This reduces weight by over 40% compared to traditional cast iron bases, significantly reducing overall energy consumption. The T6 heat treatment process (solution treatment above 500°C followed by artificial aging at 175°C) effectively eliminates internal casting stresses, keeping the base's dimensional change rate to less than 0.01% over long-term use. This significantly reduces deformation caused by stress release in welded structures.
Another major advantage of the die-casting process is the significant increase in production efficiency. A single die-casting cycle takes only 30-90 seconds. Automated production lines can produce thousands of parts per day, with exceptionally high casting consistency (dimensional fluctuation ≤ 0.03mm). This large-scale production capacity reduces the unit manufacturing cost of die-cast bases by 20-30% compared to welded structures, making them particularly suitable for high-volume applications such as construction and automotive manufacturing.
The corrosion protection system of the die-cast aluminum saw base is specifically designed for aluminum processing environments. Anodizing creates a dense oxide film of 5-20μm, and combined with a sealing process, it achieves salt spray resistance of over 500 hours. High-end products utilize an electrophoretic coating and ceramic composite coating, which improves wear resistance by more than three times while maintaining a smooth surface finish, effectively protecting against scratches from aluminum chips and coolant corrosion.
The integration of structure and function is a distinctive feature of modern die-cast bases. The die-casting process allows cooling channels, chip removal channels, and sensor mounts to be directly formed within the base, eliminating the secondary processing required for traditional welded structures. The die-cast base of a certain CNC aluminum sawing machine now features built-in temperature sensors and vibration monitoring modules. Real-time data feedback allows for dynamic optimization of machining parameters, improving cutting accuracy to ±0.1mm/m.

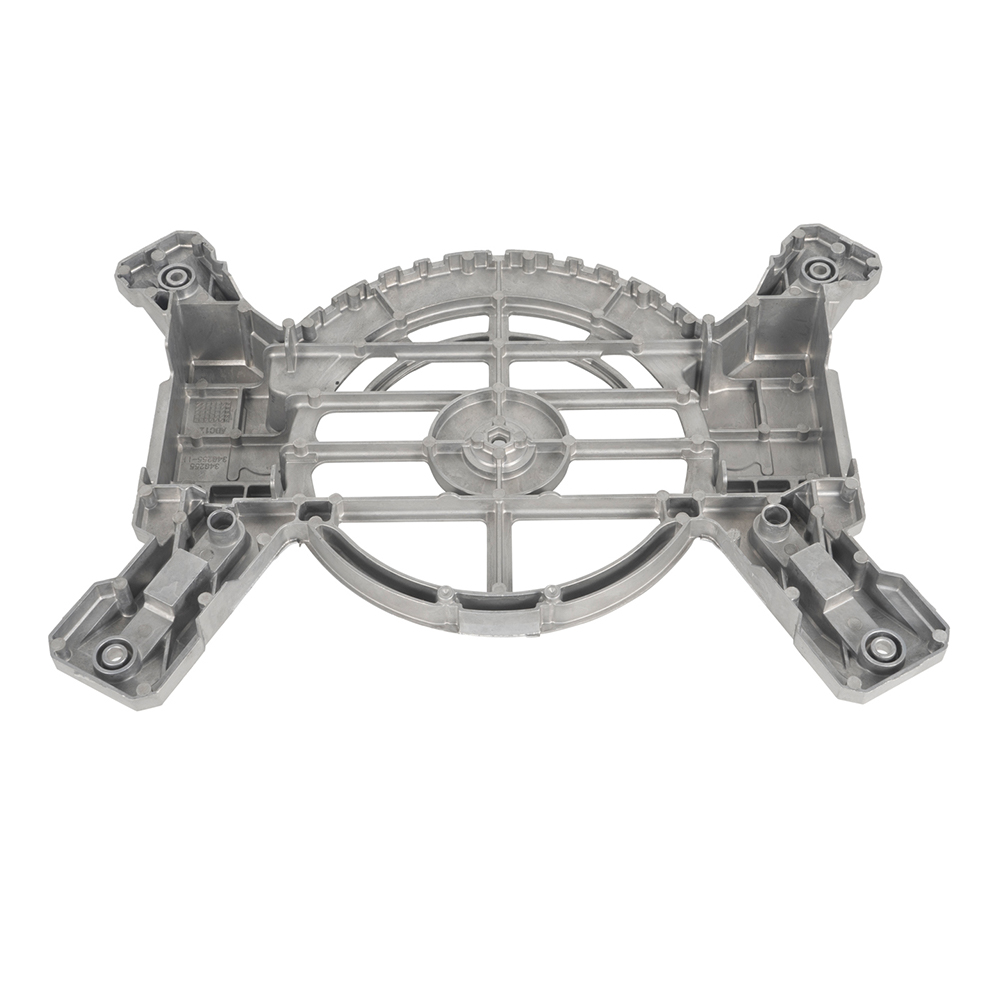

This design specifically addresses dynamic stability during the sawing process. The base's ribbed plate utilizes a honeycomb topology. The rib layout, optimized through finite element simulation, increases overall rigidity by 40%, keeping vibration amplitude below 0.02mm at a saw blade speed of 1000rpm. This highly rigid structure, combined with damping material-filled vibration-absorbing grooves, effectively reduces sawing noise to below 85dB, improving the operating environment.
Innovative application of materials science is the core technology of the die-cast base. A380 aluminum alloy is the preferred choice for high-end bases due to its excellent fluidity and thermal crack resistance. Its silicon content is approximately 8-10%, forming a uniform eutectic structure during the die-casting process. After T5 treatment, its hardness can reach HB90-110, meeting the requirements of long-term, heavy-duty use. For the more demanding aerospace applications, an Al-Si-Cu alloy is used, with fatigue strength increased to 150 MPa through microalloying.
Precision molds and process control technologies ensure product consistency. The molds are made of H13 hot-work die steel, and after nitriding, their surface hardness reaches HRC50-55, with a service life exceeding 100,000 cycles. During the die-casting process, real-time monitoring of mold temperature (±5°C control accuracy) and filling speed (adjustable from 5-50 m/s) ensures a casting density exceeding 99.5%, effectively preventing defects such as porosity and shrinkage that affect structural strength.
Dimensional stability control technology demonstrates high-end manufacturing capabilities. After die-casting, the base undergoes a hot and cold cycling aging treatment from -40°C to 120°C. This phase transformation stress release achieves a dimensional stability of 99.9%. Critical mounting surfaces utilize online laser inspection (accuracy ±0.005mm) to ensure the perpendicularity between the saw blade spindle and the worktable remains within 0.01mm/m, providing the foundation for high-precision sawing.
As aluminum processing evolves toward high precision, high efficiency, and intelligent technology, die-cast aluminum sawing machine bases are continuously pushing performance boundaries through material innovation, structural optimization, and process upgrades. In high-end manufacturing sectors such as new energy vehicles and aerospace, aluminum sawing equipment featuring lightweight die-cast bases has become a core component for precision machining, driving technological advancement and industrial upgrading within the aluminum processing industry.
